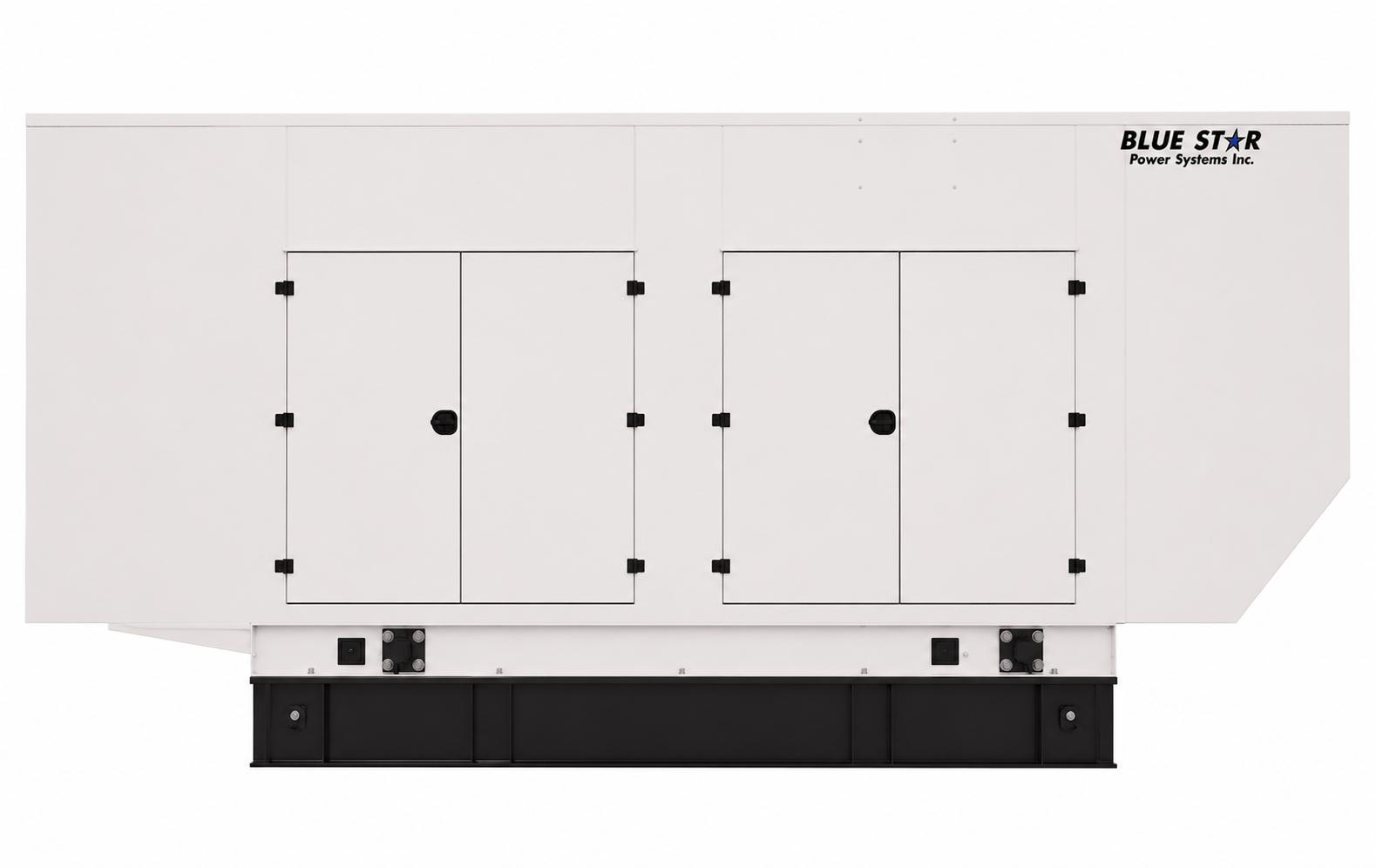

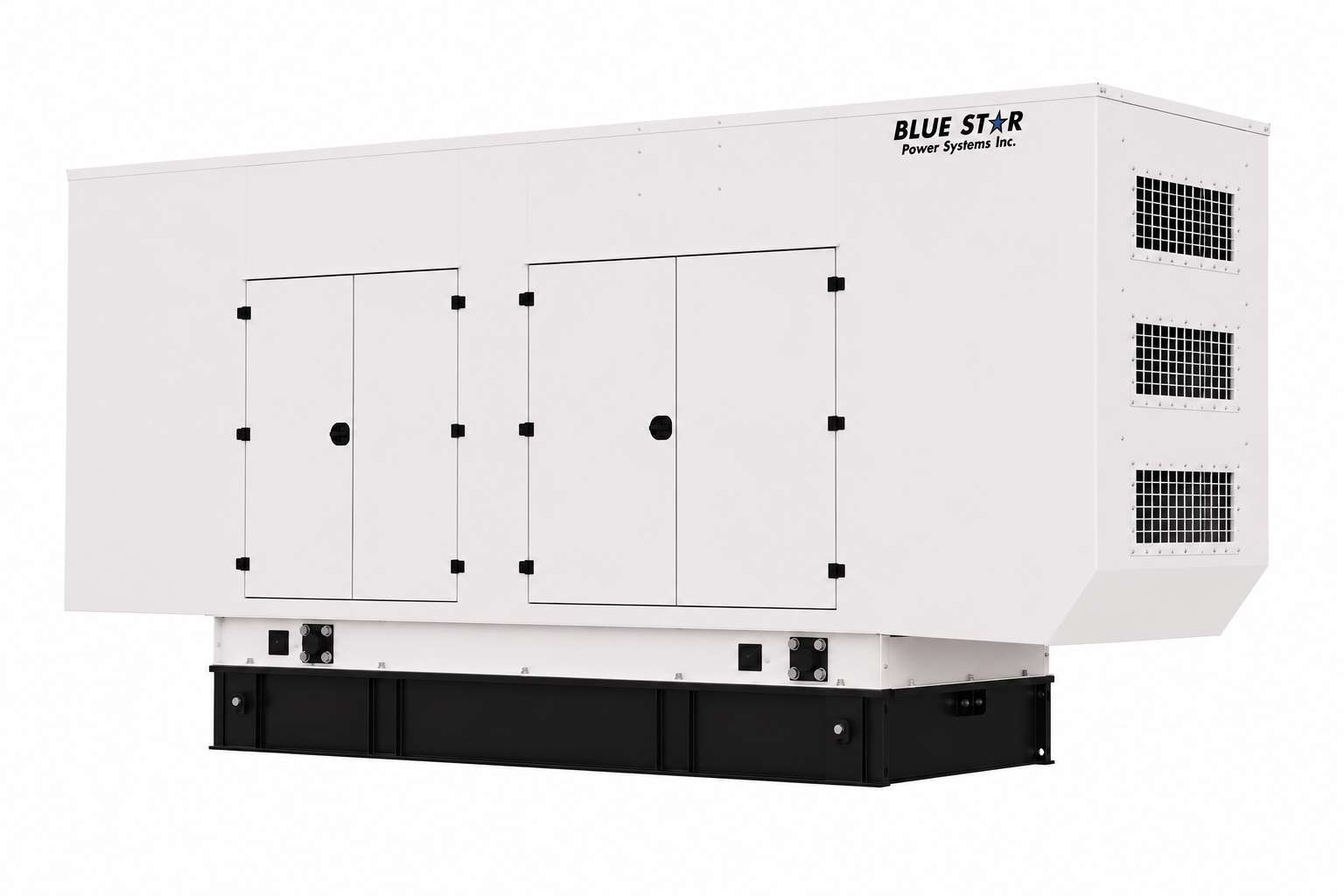

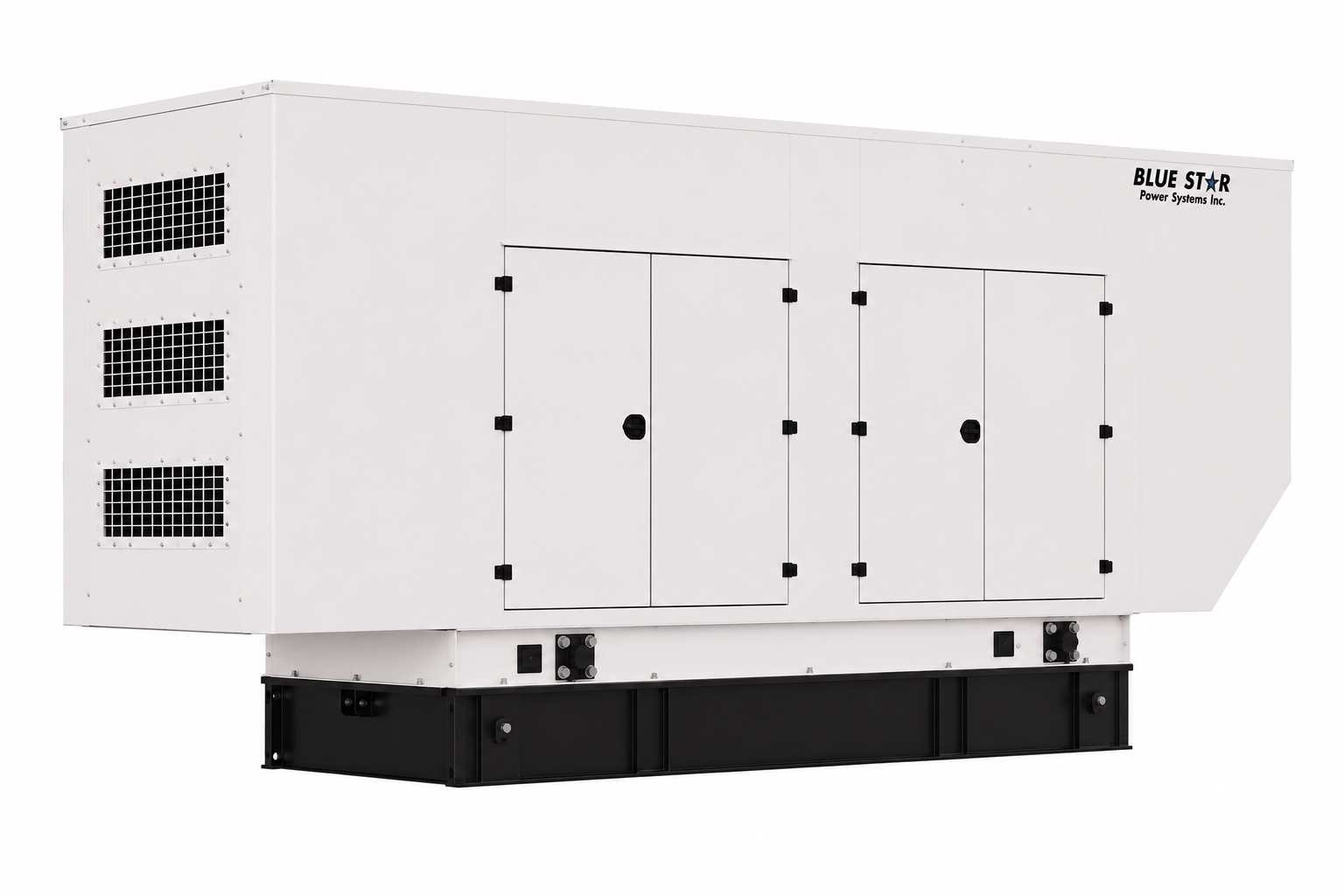

JD50-03 product details and specifications:

GENERAL OVERVIEW

• Unit Model: JD50-03 | Rating: 50 kWe Standby | Fuel: Diesel

• Frequency: 60 Hz | Speed: 1800 RPM

• Voltage Options: Single Phase 120/240V or Three Phase 277/480V

• Power Factor: 0.8 (3-phase) | 1.0 (single phase 240V)

• EPA Tier 3 Certified | UL 2200 & cUL Listed | CSA Certified

• Seismic Certified to IBC 2021 | NFPA 110 Level 1 & Level 2 Compliant

• Standard Colors: White / Gray | Custom colors available

ENGINE

• Manufacturer: John Deere | Model: 4045TF280

• Type: 4-Cycle, 4-Cylinder Inline | Aspiration: Turbocharged

• Displacement: 275 Cu. In. (4.50 L) | Bore: 4.19 in. x Stroke: 5.00 in.

• Compression Ratio: 19.0:1 | Rated RPM: 1800

• Max Standby Power: 75 HP (56 kW)

• Governor: Electronic Isochronous

• Radiator cooled, unit mounted; sized for 50°C ambient

• Blower fan and fan drive | Starter and alternator

• Oil pump and filter | Oil drain extension with valve plumbed to bulkhead fitting

• Flexible fuel connector

EXHAUST SYSTEM

• Standby Gas Temp (Stack): 945°F (507°C)

• Gas Volume at Stack Temp (Standby): 448 CFM (12.7 m³/min)

• Max Allowable Exhaust Restriction: 30.0 in. H2O (7.50 kPa)

• Critical Grade Compact CPJ Series Silencer – mounted to engine

COOLING SYSTEM

• Unit-mounted radiator, ambient capacity: 122°F (50°C)

• Max Allowable Static Pressure on Radiator Exhaust: 0.50 in. H2O (0.12 kPa)

• Water Pump Flow Rate: 38.0 GPM (144 L/min)

• Heat Rejection to Coolant: 1,821 BTUM (31.9 kW)

• Heat Radiated to Ambient: 1,038 BTUM (18.2 kW)

AIR SYSTEM

• Air Cleaner: Dry Single Stage

• Aspirating Air Flow: 180 CFM (5.09 m³/min)

• Air Flow Required for Radiator Cooled Unit: 4,760 CFM (135 m³/min)

FUEL CONSUMPTION

• At 100% of Power Rating: 4.23 gal/hr (16.0 L/hr)

• At 75% of Power Rating: 3.37 gal/hr (12.8 L/hr)

• At 50% of Power Rating: 2.32 gal/hr (8.78 L/hr)

FLUIDS CAPACITY

• Total Oil System: 3.88 gal (14.7 L)

• Engine Jacket Water Capacity: 2.25 gal (8.52 L)

• System Coolant Capacity: 5.38 gal (20.4 L)

ALTERNATOR / GENERATOR

• Model: Stamford UCI224D | Type: Brushless Single Bearing

• Winding: 12 Lead Wye (480V standard config) | Winding Pitch: 2/3

• Poles: 4 Pole, Rotating Field | Protection: IP23

• Insulation System: Class H

• Standby Temperature Rise: 125°C over 40°C ambient

• Voltage Regulation: ±1% | Max Harmonic Content: 5%

• Standards: NEMA MG 1, IEEE, ANSI compliance

• 100% of rated load – one step | Short Circuit Ratio: 1/Xd

• Bearing Drive End: Ball 6312-2RS (ISO) | Non-Drive End: Ball 6309-2RS (ISO)

• Max Overspeed: 2250 RPM

• Stator Winding Resistance: 0.129 Ohms per phase at 22°C (series star connected)

• Rotor Winding Resistance: 0.64 Ohms at 22°C

VOLTAGE REGULATOR

• Model: Stamford AS440 Automatic Voltage Regulator

• Type: Half-wave phase controlled thyristor AVR, Surface Mount Technology (SMT)

• Regulation: ±1% with 4% engine governing

• External Voltage Adjustment: ±10% with 1k ohm 1-watt trimmer

• Soft Start Ramp Time: 3 seconds | Thermal Drift: 0.03% per 1°C

• Over Excitation Protection Set Point: 65VDC | Time Delay: 10–15 seconds (fixed)

• Under Frequency Protection Set Point: 94–98% Hz

CONTROL PANEL

• Model: Blue Star DCP7310 Microprocessor-Based Gen-Set Controller

• Mounted facing left from generator end (unless specified otherwise)

• NEMA 12 enclosure | IP65 rating with supplied gasket

• 4-Line back-lit LCD display | Five-key menu navigation | Front panel PIN editing

• 8 programmable contact inputs | 10 contact outputs | RS485 communicator interface

• CAN Bus (J1939) ECU communications | USB connectivity

• Standard shutdowns: Low Oil Pressure, High Coolant Temp, Overspeed, Overcrank

• Emergency Stop Pushbutton | Audible Alarm Buzzer with Silencing Switch

• Standard alarms: Low Oil Pressure, High/Low Coolant Temp, Weak Battery, Low Fuel Level, Fuel Leak Detect

• cULus Listed, CE Approved | NFPA 110 Level 1 Compatible

• Windows-Based Software | Multilingual Capability | Event Recording

• Remote communications to DSE2548 Remote Annunciator

ENCLOSURE

• Level 2 – Weather Proof with Foam

• Material: Powder-coated 14-gauge steel | Wind Rating: 200 MPH (IBC 2021, ASCE/SEI 7-16)

• Pitched roof for increased structural integrity and improved watershed

• Punched intake with baffle and punched exhaust openings

• Keyed alike lockable doors with draw down latches and stainless steel component hinges

• Sound attenuation: 1.5" Polydamp Type D Acoustical Foam (PAF) installed

• Formed steel base with mounting and lifting holes

• Vibration isolation mounts included

ELECTRICAL COMPONENTS

• Mainline Breaker: 80 Amp 3 Pole 480 Volt, Mounted & Wired in NEMA 1 Enclosure

• Battery: 12 Volt system with rack and cables

• Battery Charger: 12V 6 Amp (BC1206A Series), Mounted and Wired to Terminal

• Jacket Water Heater: 1500W 120VAC, rated for -20°F with isolation valves

• Oil Drain Extension: Plumbed to bulkhead fitting in base

SUB-BASE FUEL TANK

• Type: UL 142 Listed, Double Wall with Secondary Containment

• 24-Hour Option: 120 Gallon | Dimensions with enclosure: L 80 in. x H 80 in. x W 38 in.

• 48-Hour Option: 240 Gallon | Dimensions with enclosure: L 80 in. x H 96 in. x W 38 in.

• 72-Hour Option: 360 Gallon | Dimensions with enclosure: L 108 in. x H 96 in. x W 38 in.

• Includes: Supply & Return Connections, Fuel Level Gauge, Fuel Leak Switch, Fill & Vent Plumbing

• Stub-up area for electrical wiring | Low fuel level and fuel leak alarms

WEIGHTS & DIMENSIONS (GENSET)

• OPU: 80 x 38 x 58 in. | Weight: 2,125 lbs.

• Level 1 Enclosure: 90 x 38 x 60 in. | Weight: 2,625 lbs.

• Level 2 Enclosure: 90 x 38 x 60 in. | Weight: 2,675 lbs.

• Level 3 Enclosure: 120 x 38 x 60 in. | Weight: 2,825 lbs.

• Note: Allow 6–12 inches for height of exhaust stack. All dimensions in inches.

SOUND LEVELS (@ 23 ft / 7 m per ISO 8528-10)

• OPU: No Load 73 dBA | Full Load 77 dBA

• Level 1 Enclosure: No Load 71 dBA | Full Load 73 dBA

• Level 2 Enclosure: No Load 68 dBA | Full Load 70 dBA

• Level 3 Enclosure: No Load 63 dBA | Full Load 65 dBA

RATINGS (60 Hz)

• 240V Single Phase: 50 kWe | 208 Amps | Generator UCI224F | 12 Lead DD | PF 1.0 | 125°C/40°C

• 208V Three Phase: 50 kWe | 174 Amps | Generator UCI224E | 12 Lead Wye | PF 0.8 | 125°C/40°C

• 240V Three Phase: 50 kWe | 151 Amps | Generator UCI224E | 12 Lead Delta | PF 0.8 | 125°C/40°C

• 480V Three Phase: 50 kWe | 75 Amps | Generator UCI224D | 12 Lead Wye | PF 0.8 | 125°C/40°C

• 600V Three Phase: 50 kWe | 60 Amps | Generator UCI224D | 4 Lead Wye | PF 0.8 | 125°C/40°C

FACTORY TESTING

• Standard commercial factory load test included

• Verification of alarm shutdowns, voltage settings, block loading to rated kWe and PF

• Tested in accordance with MIL-STD-705C and NFPA 110 standards

• Test metering accuracy: 1.3% or better, NIST traceable

WARRANTY

• 2 Year / 2,000 Hour Standby Limited Warranty (parts and labor from date of factory invoice)

• Accessories: 1 Year / 2,000 Hour Limited
