JD60-02 product details and specifications:

General Overview

• Model: JD60-02

• Power Rating: 60 kWe Standby

• Frequency: 60 Hz | Speed: 1800 RPM

• Fuel Type: Diesel

• UL 2200 & cUL Listed | CSA Certified | Seismic Certified to IBC 2021

• NFPA 110 / CSA C282 Compliant

• EPA Tier 3 Certified

• Made in USA

Phase & Voltage Options

• Single Phase: 120/240V | 1.0 PF | 60 Hz | Generator Model: UCI224G | 12 Lead DD | 250 Amps

• Three Phase (208V): 208V | 0.8 PF | 60 Hz | Generator Model: UCI224F | 12 Lead Wye | 208 Amps

• Three Phase (240V Delta): 240V | 0.8 PF | 60 Hz | Generator Model: UCI224F | 12 Lead Delta | 181 Amps

• Three Phase (480V): 480V | 0.8 PF | 60 Hz | Generator Model: UCI224E | 12 Lead Wye | 90 Amps

• Three Phase (600V): 600V | 0.8 PF | 60 Hz | Generator Model: UCI224E | 4 Lead Wye | 72 Amps

Engine

• Manufacturer: John Deere | Model: 4045TF280

• Type: 4-Cycle, 4 Cylinder Inline | Aspiration: Turbocharged

• Displacement: 275 cu. in. (4.50 L)

• Bore x Stroke: 4.19 in. x 5.00 in. | Compression Ratio: 19.0:1

• Rated RPM: 1800 | Max HP Standby: 85 HP (63.4 kWm)

• Governor: Electronic Isochronous

• EPA Certified Tier 3 (CARB; EPA)

• Radiator Cooled – Unit Mounted (50°C Ambient)

• Blower Fan & Fan Drive | Starter & Alternator

• Oil Pump & Filter | Oil Drain Extension with Valve

• 12V Battery System & Cables | Flexible Fuel Connector

Exhaust System

• Exhaust Stack Temp (Standby): 1,074°F (579°C)

• Gas Volume at Stack Temp: 679 CFM (19.2 m³/min)

• Maximum Allowable Exhaust Restriction: 30.0 in. H2O (7.50 kPa)

Cooling System

• Radiator Ambient Capacity: 122°F (50°C)

• Max Allowable Static Pressure on Radiator Exhaust: 0.50 in. H2O (0.12 kPa)

• Water Pump Flow Rate: 38.0 GPM (144 lit/min)

• Heat Rejection to Coolant: 2,049 BTU/min (35.9 kW)

• Heat Radiated to Ambient: 1,237 BTU/min (21.6 kW)

Air Requirements

• Aspirating: 187 CFM (5.29 m³/min)

• Air Flow Required for Radiator Cooled Unit: 4,760 CFM (135 m³/min)

• Air Cleaner: Dry Single Stage

Fuel Consumption

• At 100% of Power Rating: 4.95 gal/hr (18.7 lit/hr)

• At 75% of Power Rating: 3.86 gal/hr (14.6 lit/hr)

• At 50% of Power Rating: 2.72 gal/hr (10.3 lit/hr)

Fluids Capacity

• Total Oil System: 3.88 gal (14.7 lit)

• Engine Jacket Water Capacity: 2.32 gal (8.50 lit)

• System Coolant Capacity: 5.40 gal (20.4 lit)

Alternator (Generator)

• Manufacturer: Stamford | Brushless Single Bearing

• Models: UCI224E (480V/600V), UCI224F (208V/240V), UCI224G (240V 1-Ph)

• Automatic Voltage Regulator: Stamford AS440 (±1% regulation)

• Insulation Class: H | Temperature Rise: 125°C Standby

• 4 Pole, Rotating Field | 2/3 Winding Pitch | 12 Winding Leads

• 5% Maximum Harmonic Content | 100% of Rated Load – One Step

• NEMA MG 1, IEEE and ANSI Standards Compliant

Control Panel – Blue Star DCP7310

• Microprocessor Based Gen-Set Controller, Mounted in NEMA 12 Enclosure

• Mounted Facing Left from Generator End (unless specified otherwise)

• Digital Metering: kW, kVA, kVAr, kWh, frequency, voltage, amperage

• Engine Parameters & CAN Bus (J1939) ECU Communications

• 8 Programmable Contact Inputs | 10 Contact Outputs

• RS485 Communicator Interface | MODBUS RTU & TCP Support

• Standard Shutdowns: Low Oil Pressure, High Coolant Temp, Overspeed, Overcrank

• Emergency Stop Pushbutton | Audible Alarm Buzzer with Silencing Switch

• Windows-Based Software | Multilingual Capability | Event Recording

• IP65 Rating (with supplied gasket) | cULus Listed, CE Approved

• NFPA 110 Level 1 Compatible

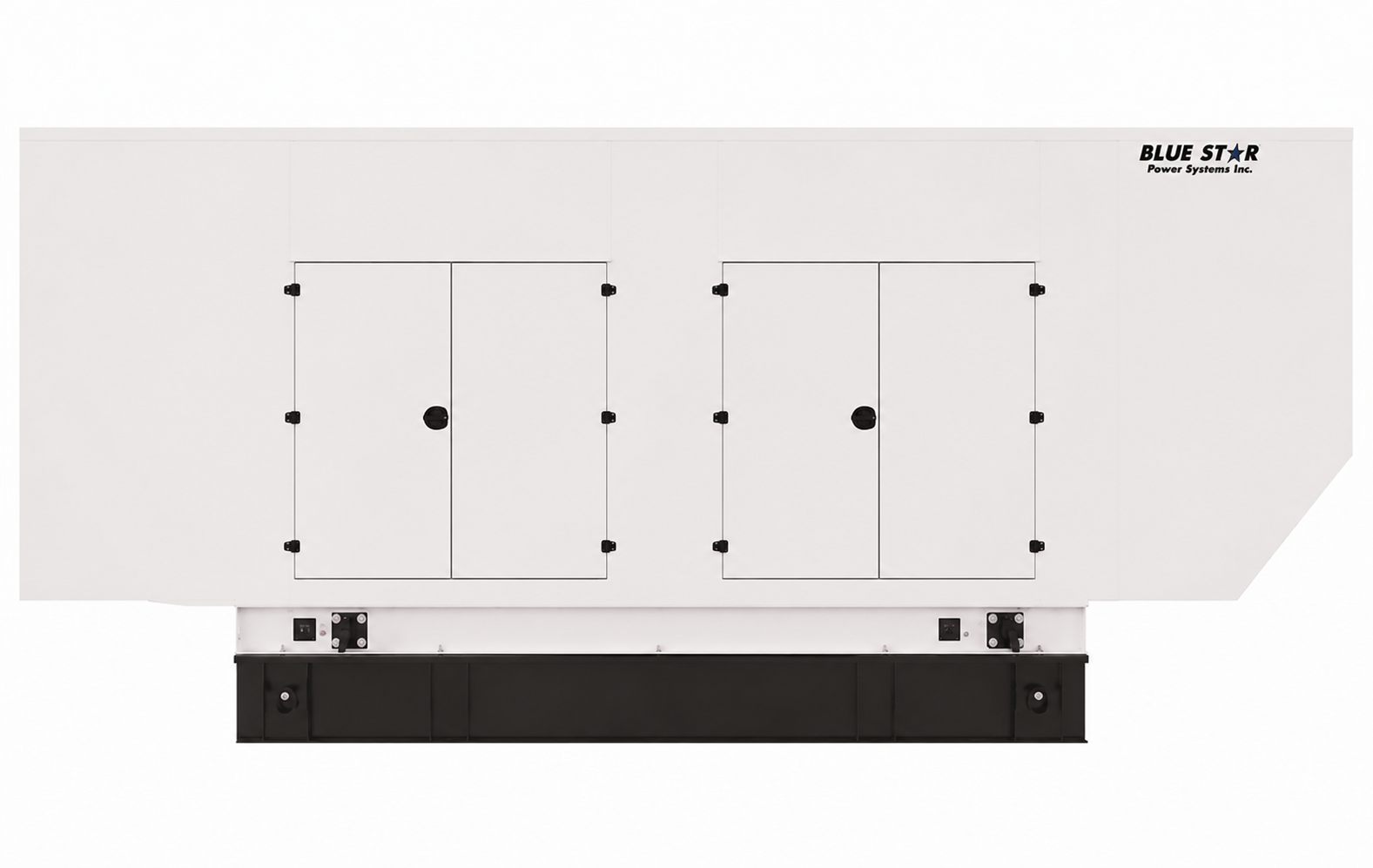

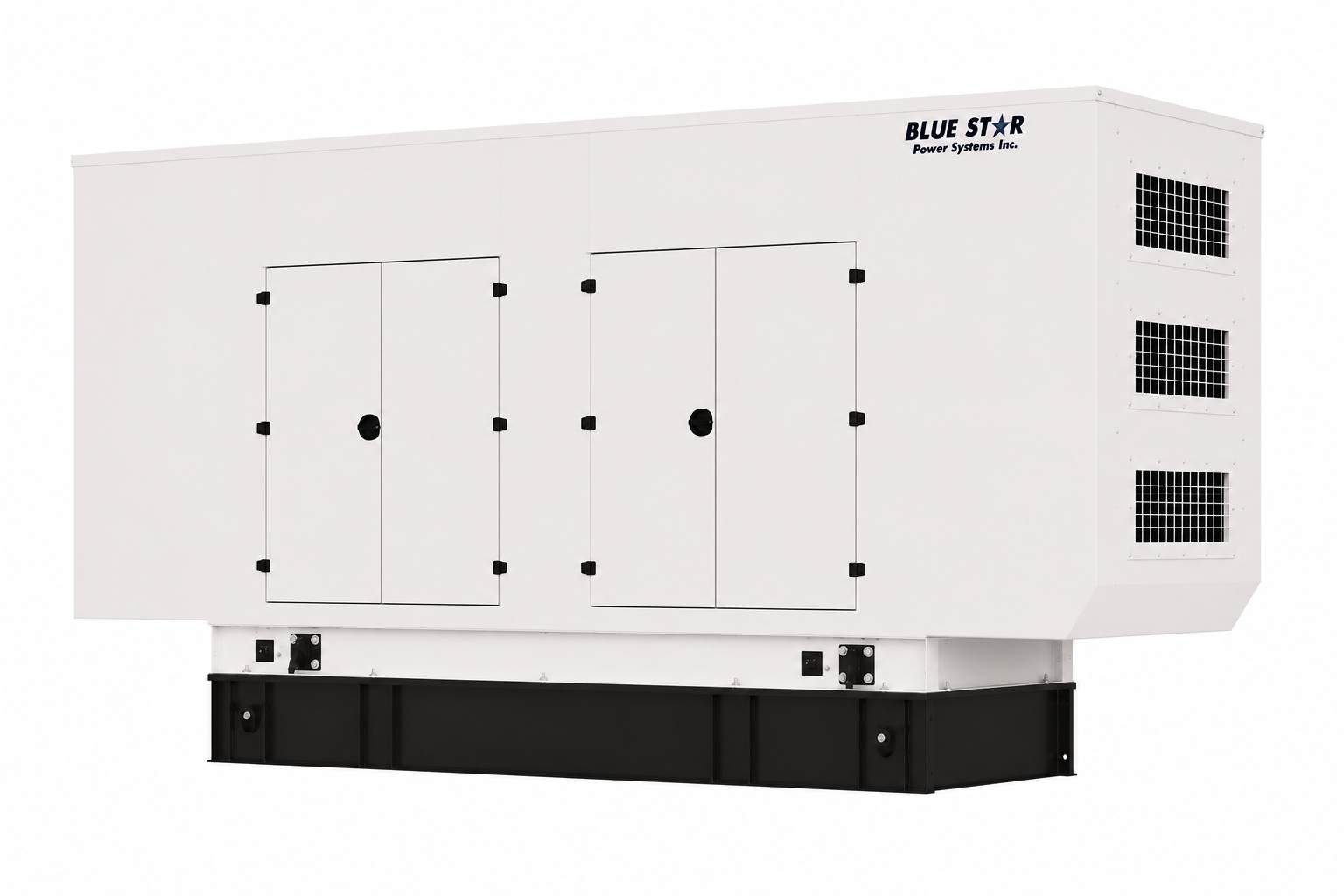

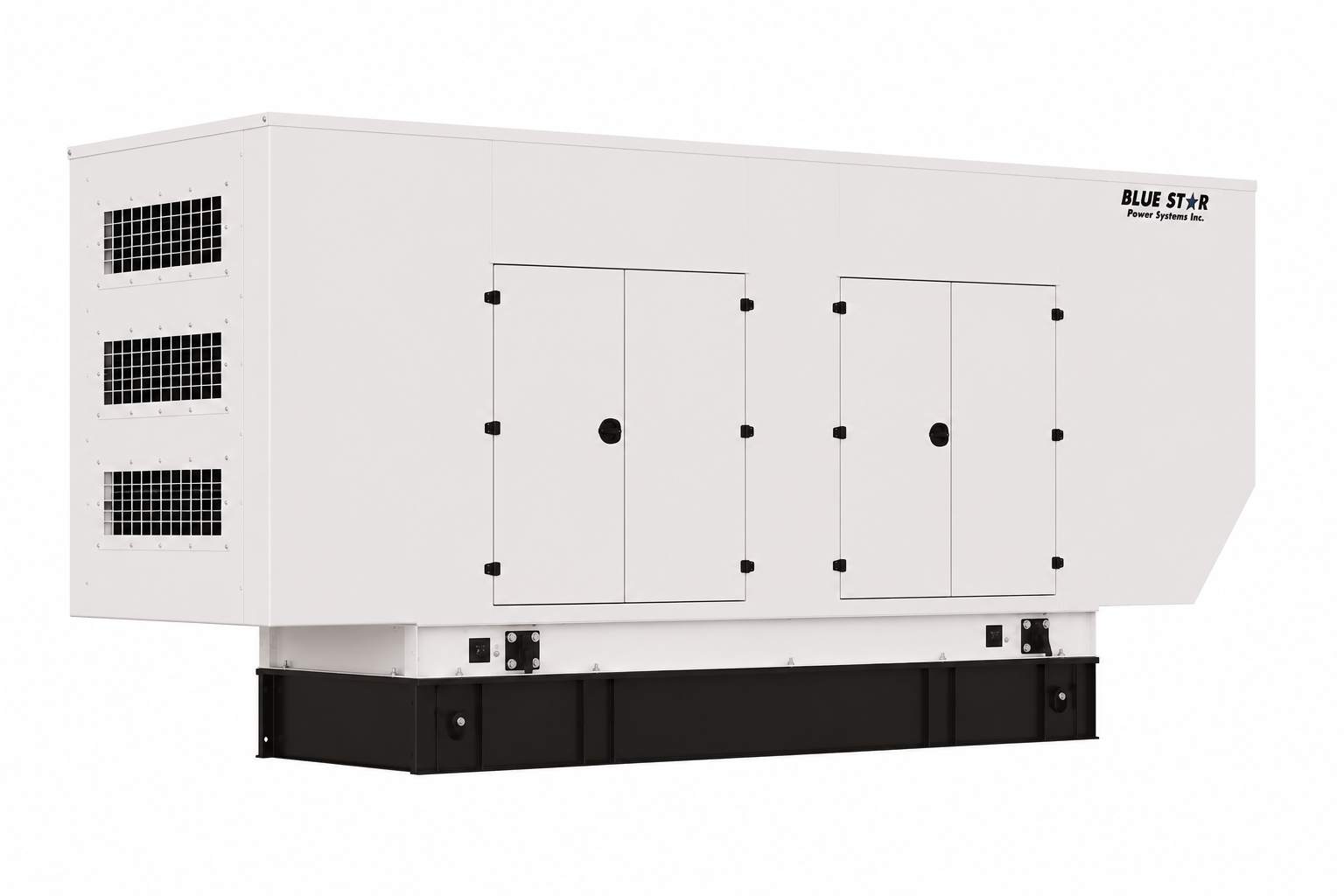

Enclosure

• Level 2 – Weather Proof with 1.5" Polydamp Type D Acoustical Foam

• 14 Gauge Powder Coated Steel | Pitched Roof for Structural Integrity & Watershed

• 200 MPH Wind Rated – IBC 2021 / ASCE/SEI 7-16 Certified

• Punched Intake with Baffle and Punched Exhaust Openings

• Keyed Alike Lockable Doors | Draw Down Latches | Stainless Steel Component Hinges

• Formed Steel Base with Mounting and Lifting Holes

• Vibration Isolation Mounts to Isolate Unit from Base Rail

• Sound Level (No Load / Full Load): OPU 73/77 | Level 1 71/73 | Level 2 68/70 | Level 3 63/65 dBA

Dimensions & Weights

• OPU: 80 x 38 x 58 in. | Weight: 2,225 lbs.

• Level 1 Enclosure: 90 x 38 x 60 in. | Weight: 2,725 lbs.

• Level 2 Enclosure: 90 x 38 x 60 in. | Weight: 2,775 lbs.

• Level 3 Enclosure: 120 x 38 x 60 in. | Weight: 2,925 lbs.

• Note: Allow 6-12 inches additional height for exhaust stack

Fuel Tank Options

• Option 1 – 24 Hour / 120 Gallon: L 80 in. x W 38 in. x H 80 in. | Double Wall UL 142 Listed

• Option 2 – 48 Hour / 240 Gallon: L 80 in. x W 38 in. x H 96 in. | Double Wall UL 142 Listed

• Option 3 – 72 Hour / 360 Gallon: L 108 in. x W 38 in. x H 96 in. | Double Wall UL 142 Listed

• All tanks include: Supply & Return Connections, Fuel Level Gauge, Fuel Leak Switch, Fill & Vent Plumbing, Electrical Stub-Up Area

Additional Standard Equipment

• Mainline Breaker: 90 Amp, 3 Pole, 480V – Mounted & Wired in NEMA 1 Enclosure

• Jacket Water Heater: 1500W, 120VAC, Rated for -20°F, with Isolation Valves – Wired to Terminal

• Battery Charger: BC1206A Series – 12V, 6 Amp – Mounted and Wired to Terminal

• Silencer: Critical Grade Compact CPJ Series – Mounted to Engine

• Oil Drain Extension: Plumbed to Bulkhead Fitting in Base

• Paint Color: White (Standard) | Gray (optional)

• Factory Test: Standard Commercial Testing (Alarm/Shutdown Verification, Voltage Settings, Block Loading)

• Warranty: 2 Year / 2,000 Hour Standby Limited

• Deration: Rated power available up to 10,000 ft (3,048 m) at ambient temps to 122°F (50°C)
