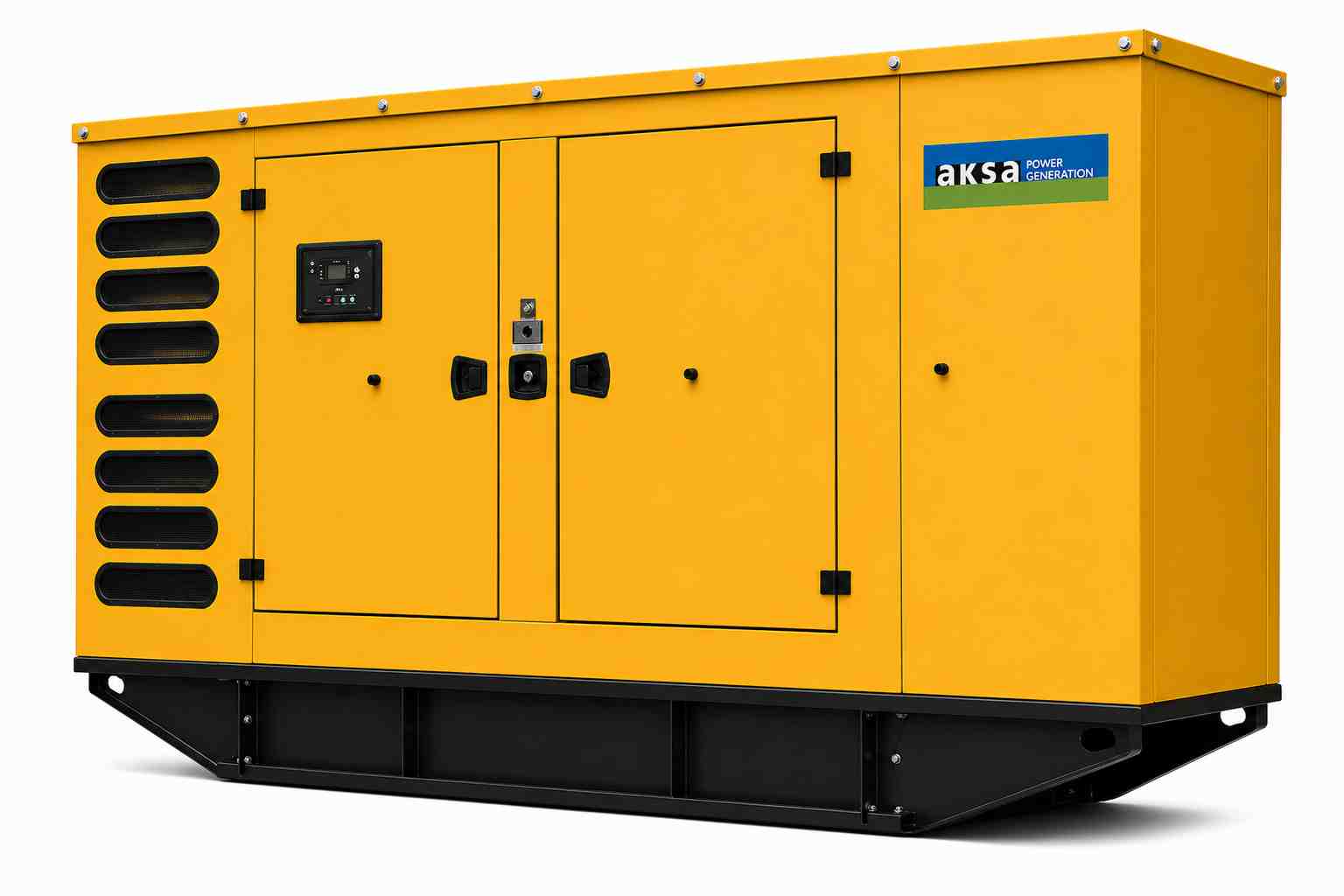

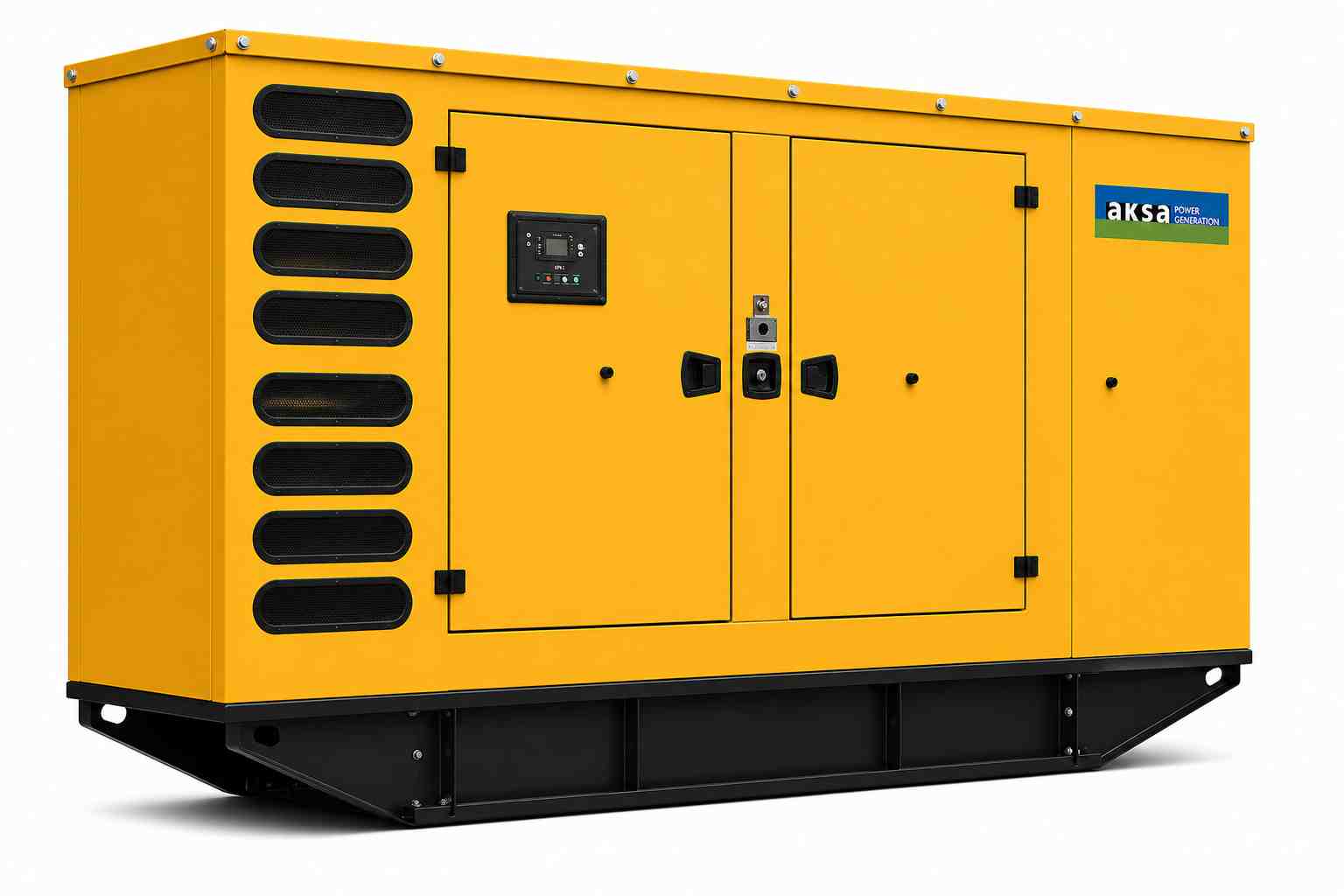

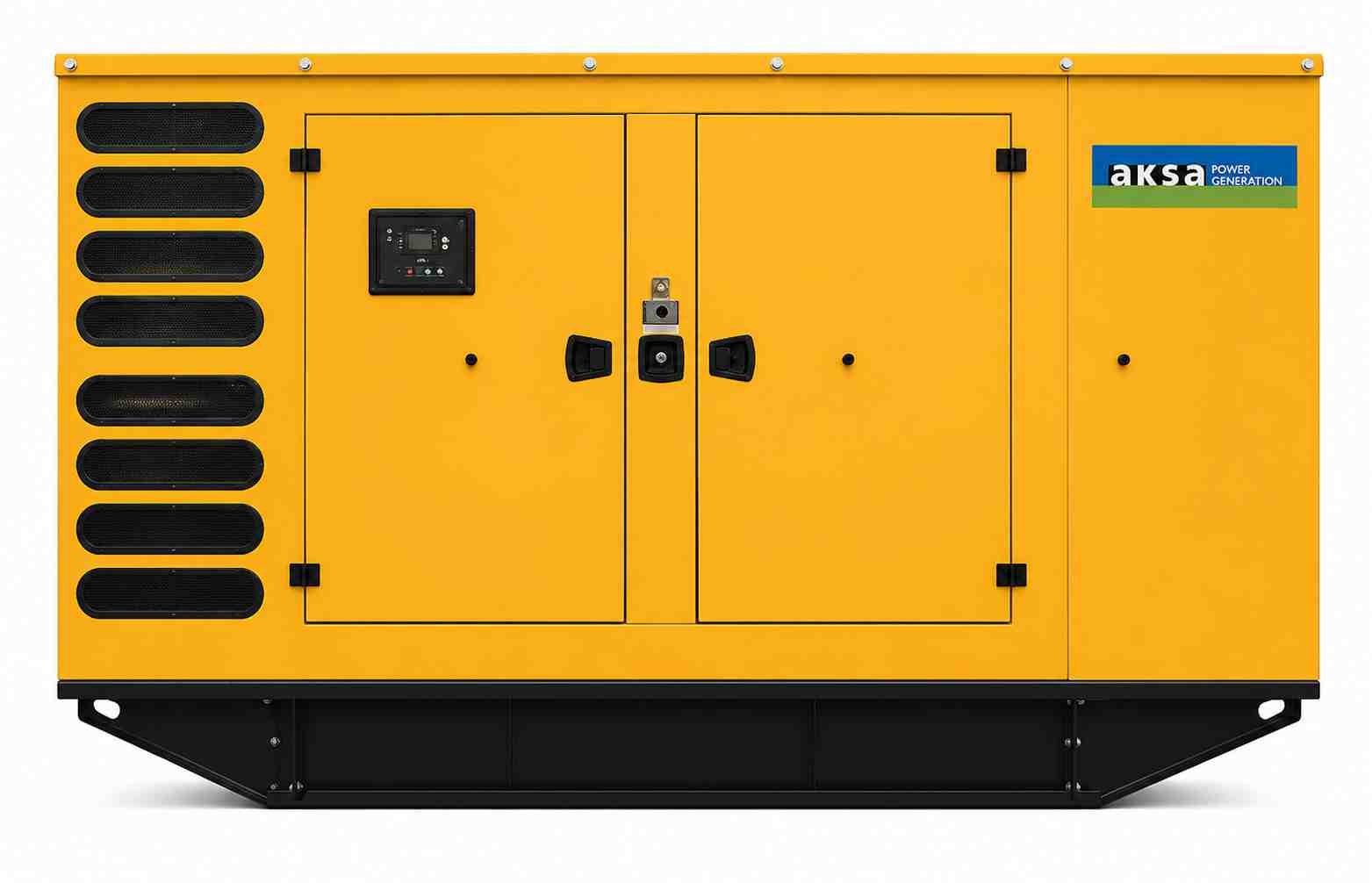

AC625-6 AKSA Diesel Generating Set 625kVA Canopy Type
AC625-6 AKSA Diesel Generating Set 625kVA Canopy Type
Call for Price
Standby Power: 625 kVA / 500 kW
Prime Power: 563 kVA / 450.4 kW
Voltage: 480/277V, 440/254V, 380/220V
Frequency: 60 Hz
- High quality, reliable and complete power unit
- Compact design
- Easy start and maintenance
- Comprehensive factory testing including full load testing
- Full control and safety shutdown function testing
- Wide range of options and accessories available (canopy, soundproof canopy, trailer)
- Powered by heavy-duty Cummins diesel engine
- Turbocharged and charge air cooled engine system
AC625-6 Diesel Generator - Details and Specifications
Engine Manufacturer: Cummins
Engine Model: QSX15G9
Engine Power: 563 kWm / 755 HP
Cylinders: 6 Inline
Displacement: 14.9 L
Fuel Consumption: 118 L/hr
Fuel Tank Capacity: 850 L
Oil Capacity: 90.8 L
Coolant Capacity: 65.9 L
Engine Speed: 1800 rpm
Compression Ratio: 17.2:1
Aspiration: Turbocharged and Charge Air Cooled
Alternator Type: Brushless, single bearing
Insulation Class: Class H
Phase Rotation: A(U), B(V), C(W)
Cooling: Direct drive centrifugal blower fan
Dimensions (Canopy Type): 189.49 × 63.23 × 103.15 in
Weight (Canopy Type): 11464.04 lbs
PRODUCT SPECIFICATIONS:
| Specification | Value |
| Standby Power | 625 kVA / 500 kW |
| Prime Power | 563 kVA / 450.4 kW |
| Voltage | 480/277V, 440/254V, 380/220V |
| Frequency | 60 Hz |
| Engine Manufacturer | Cummins |
| Engine Model | QSX15G9 |
| Engine Power | 563 kWm / 755 HP |
| Cylinders | 6 Inline |
| Displacement | 14.9 L |
| Fuel Consumption | 118 L/hr |
| Fuel Tank Capacity | 850 L |
| Oil Capacity | 90.8 L |
| Coolant Capacity | 65.9 L |
| Engine Speed | 1800 rpm |
| Compression Ratio | 17.2:1 |
| Aspiration | Turbocharged and Charge Air Cooled |
| Alternator Type | Brushless, single bearing |
| Insulation Class | Class H |
| Phase Rotation | A(U), B(V), C(W) |
| Cooling | Direct drive centrifugal blower fan |
| Dimensions (Canopy Type) | 189.49 × 63.23 × 103.15 in |
| Weight (Canopy Type) | 11464.04 lbs |
PRODUCT RELATED DOCUMENTS:
| Weight | 11464.04 lbs |
|---|---|
| Dimensions | 189.49 × 63.23 × 103.15 in |
