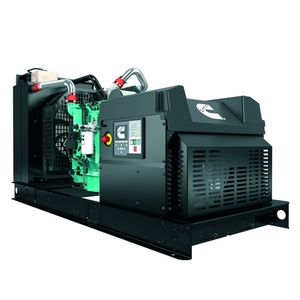

Cummins C80D6C (80kW)
Reliable 80 kW standby diesel generator for agricultural and commercial backup power applications, featuring a Cummins QSB5 engine, PowerCommand 1.1 controls, robust cooling performance, and dependable operation in demanding environments.
Cummins C80D6C (80kW)
Call for Price
- 80 kW / 80 kVA standby power rating
- Cummins QSB5 heavy-duty 4-cycle industrial diesel engine
- PowerCommand 1.1 digital control system
- Automatic remote start and stop capability
- ±1.0% voltage regulation with isochronous frequency control
- Brushless 4-pole alternator with Class H insulation
- Standard cooling package rated up to 50°C (122°F) ambient
- NFPA 110 Level 1 compliant functionality
- Self-diagnostics and simplified maintenance access
- Flexible exercise mode reduces fuel consumption, emissions, and noise
- Battle Short Mode for enhanced operational flexibility
- EPA and UL compliant design and testing
Description
Additional Info
Reviews
Description
C80D6C - Details and Specifications:
General Details
- Model: C80D6C
- Standby Rating: 80 kW / 80 kVA
- Application: Agricultural standby power
- Controller: PowerCommand 1.1
- Operating Temperature Range: -40°F to 122°F
- Circuit Breaker: 400 A (adjustable)
- Governor Regulation Class: ISO 8528 Part 1 Class G3
- Voltage Regulation: ±1.0%
- Frequency Regulation: Isochronous
- Battle Short Mode
- Flexible Exercise Mode
Engine Specifications
- Engine Model: Cummins QSB5
- Engine Type: Heavy-duty 4-cycle industrial diesel
- Displacement: 272 in³ (4.5 L)
- Cylinder Block: Cast iron, in-line
- Battery Capacity: 850 amps
- Battery Charging Alternator: 100 amps
- Starting Voltage: 12-volt, negative ground
- Lube Oil Filter: Spin-on with relief valve
- Cooling System: High ambient radiator
- Rated Speed: 1800 rpm
Alternator Specifications
- Design: Brushless, 4-pole, drip-proof, revolving field
- Stator: 2/3 pitch
- Rotor: Direct coupled, flexible disc
- Insulation System: Class H per NEMA MG1-1.65
- Temperature Rise: 248°F (120°C) standby
- Exciter Type: Torque match (shunt) with PMG option
- Alternator Cooling: Direct drive centrifugal blower
- Total Harmonic Distortion: <5%
- Telephone Influence Factor (TIF): <50
- Telephone Harmonic Factor (THF): <3%
Control System
- PowerCommand 1.1 digital control
- Automatic remote starting and stopping
- Precise voltage and frequency regulation
- Alarm and status message display
- Output metering
- Automatic shutdown at fault detection
- NFPA 110 Level 1 compliant functionality
- Self-diagnostic capability
Dimensions and Weight
- Length: 98 in
- Width: 38 in
- Height: 52 in
- Wet Weight: 2324 lbs
product specifications:
| Specification | Value |
| Model | C80D6C |
| Standby Power | 80 kW / 80 kVA |
| Controller | PowerCommand 1.1 |
| Operating Temperature Range | -40°F to 122°F |
| Circuit Breaker | 400 A (adjustable) |
| Governor Regulation Class | ISO 8528 Part 1 Class G3 |
| Voltage Regulation | ±1.0% |
| Frequency Regulation | Isochronous |
| Engine Model | Cummins QSB5 |
| Engine Displacement | 272 in³ (4.5 L) |
| Cylinder Block | Cast iron, in-line |
| Battery Capacity | 850 amps |
| Battery Charging Alternator | 100 amps |
| Starting Voltage | 12-volt, negative ground |
| Cooling System | High ambient radiator |
| Rated Speed | 1800 rpm |
| Alternator Design | Brushless, 4-pole, revolving field |
| Stator | 2/3 pitch |
| Insulation Class | Class H |
| THD | < 5% |
| Length | 98 in |
| Width | 38 in |
| Height | 52 in |
| Wet Weight | 2324 lbs |
product related documents:
Additional Info
| Weight | 2324 lbs |
|---|---|
| Dimensions | 98 × 38 × 52 in |
