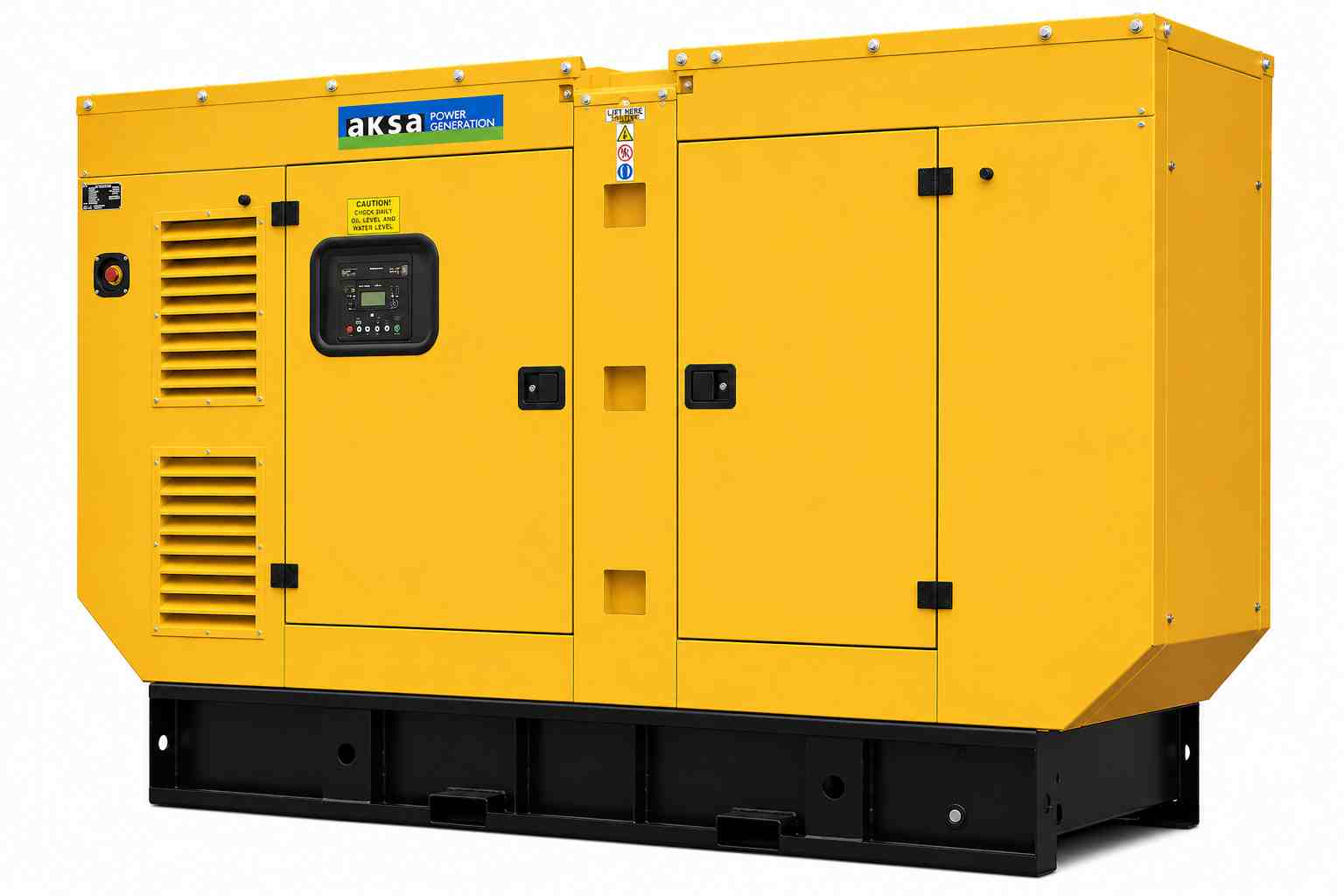

APD250A-6 AKSA Diesel Generating Set 250kVA with Optional Sound Attenuated Canopy
The APD250A-6 is a 250 kVA (200 kW) diesel generating set powered by Aksa, designed to deliver reliable and efficient power for both standby and prime applications. It features a compact design, robust construction, and is engineered for easy maintenance and dependable performance across various operating conditions.
APD250A-6 AKSA Diesel Generating Set 250kVA with Optional Sound Attenuated Canopy
Call for Price
General Information
Model: APD250A-6
Type: Diesel Generating Set
Frequency: 60 Hz
Voltage Options: 480/277V, 380/220V, 220/127V
Power Factor: 0.8
Power Ratings
Standby Power: 250 kVA / 200 kW
Prime Power: 230 kVA / 184 kW
- Powered by Aksa diesel engine
- Power factor: 0.8
- High quality, reliable, and complete power unit
- Compact design for efficient space usage
- Easy start and maintenance capability
- Fully tested under comprehensive load conditions before delivery
- Equipped with full control and safety shutdown systems
- Available with a wide range of options and accessories (canopy, soundproof canopy, trailer)
- Multiple voltage configurations: 480/277V, 380/220V, 220/127V – 60 Hz
Description
Additional Info
Reviews
Description
APD250A-6 Diesel Generator - Details and Specifications
Engine Specifications
- Manufacturer: Aksa
- Model: A6CRX97TI
- Engine Power Output: 240 kWm (321.84 HP)
- Aspiration: Turbocharged with Aftercooler
- Displacement: 9.726 L
- Cylinders: 6 – Inline
- Speed: 1800 rpm
- Bore x Stroke: 126 x 130 mm
- Compression Ratio: 16.5:1
- Governor: Electronic
- Fuel Consumption (Full Load): 52.9 L/hr
- Fuel Tank Capacity: 526 L
- Oil Capacity: 24 L
- Coolant Capacity: 65 L
Alternator Specifications
- Design: Brushless, single bearing, revolving field
- Stator: 2/3 pitch
- Rotor: Single bearing, flexible disc
- Insulation Class: H
- Exciter Type: Self-excited
- Cooling: Direct drive centrifugal blower fan
- Voltage Regulation: Automatic Voltage Regulator (AVR)
- Protection: IP21 (optional IP22/IP23)
Dimensions and Weight
Sound Attenuated Dimensions (LxWxH): 154.25 × 57.60 × 85.16 in
Sound Attenuated Weight: 6570.66 lbs
PRODUCT SPECIFICATIONS:
| Specification | Value |
| Model | APD250A-6 |
| Type | Diesel Generating Set |
| Frequency | 60 Hz |
| Voltage | 480/277V, 380/220V, 220/127V |
| Power Factor | 0.8 |
| Standby Power | 250 kVA / 200 kW |
| Prime Power | 230 kVA / 184 kW |
| Engine Manufacturer | Aksa |
| Engine Model | A6CRX97TI |
| Engine Power Output | 240 kWm (321.84 HP) |
| Aspiration | Turbocharged with Aftercooler |
| Displacement | 9.726 L |
| Cylinders | 6 – Inline |
| Engine Speed | 1800 rpm |
| Bore x Stroke | 126 x 130 mm |
| Compression Ratio | 16.5:1 |
| Governor | Electronic |
| Fuel Consumption (Full Load) | 52.9 L/hr |
| Fuel Tank Capacity | 526 L |
| Oil Capacity | 24 L |
| Coolant Capacity | 65 L |
| Alternator Design | Brushless, single bearing, revolving field |
| Stator | 2/3 pitch |
| Insulation Class | Class H |
| Exciter Type | Self-excited |
| Cooling | Direct drive centrifugal blower fan |
| Voltage Regulation | Automatic Voltage Regulator (AVR) |
| Protection | IP21 |
| Sound Attenuated Dimensions (LxWxH) | 154.25 × 57.60 × 85.16 in |
| Sound Attenuated Weight | 6570.66 lbs |
PRODUCT RELATED DOCUMENTS:
Additional Info
| Weight | 6570.66 lbs |
|---|---|
| Dimensions | 154.25 × 57.60 × 85.16 in |
