Generac Air-Cooled Standby Generator – Model G007325-0 (22 kW)

Name: Generac Air-Cooled Standby Generator – Model G007325-0 (22 kW) || Brags & Hayes Generators
Brand: Yes, made in USA
SKU: 7325

The Generac 22 kW air-cooled standby generator (Model G007325-0) is a residential and light commercial backup power solution designed for dependable whole-property coverage. Featuring the robust G-Force 1000 series engine, advanced voltage regulation, and integrated smart connectivity, it delivers clean, stable power for sensitive electronics and critical systems.

Home All generators Made in USA Yes, made in USA Generac Air-Cooled Standby Generator – Model G007325-0 (22 kW)

Share this product!

Generac Air-Cooled Standby Generator – Model G007325-0 (22 kW)

Call for Price

SKU: 7325

22 kW standby power (LP), 21 kW on natural gas

True Power™ Technology with <5% total harmonic distortion

Mobile Link® connectivity with cellular, Wi-Fi, and Bluetooth capabilities

G-Force 1000 Series engine (2-cylinder, 997cc) designed for extended run times

Automatic voltage regulation with ±1% accuracy

Smart Exercise Technology for optimized maintenance cycles

Quiet-Test™ low-speed exercise mode for reduced noise

Operates on natural gas or liquid propane

Sound-attenuated, weather-resistant aluminum enclosure

Power Zone™ 200 controller with LED status and maintenance indicators

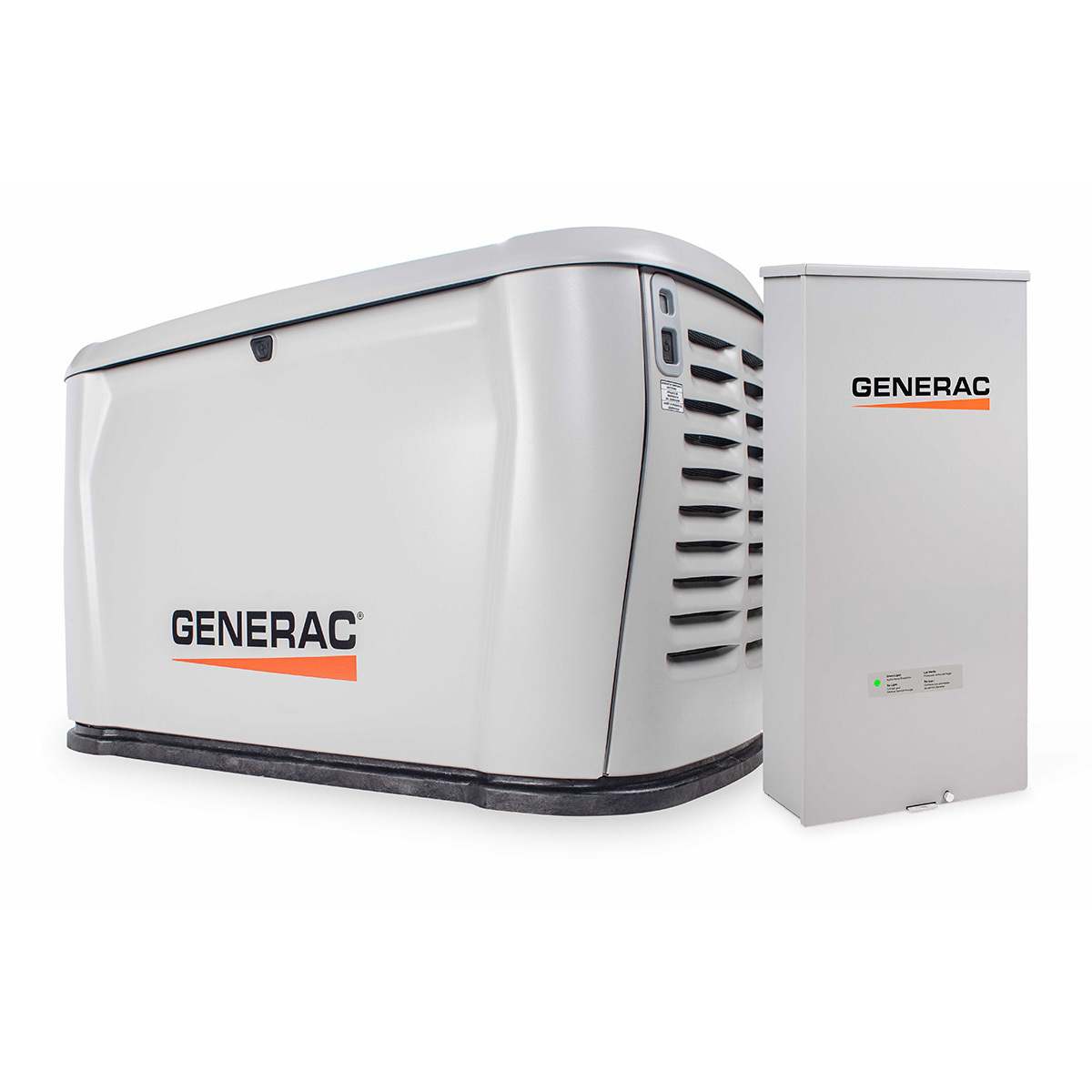

200A service-rated transfer switch available in bundled models

5-year limited warranty

Description

G007325-0 (22 kW) product details and specifications:

General Details

Model: G007325-0

Series: Generac Air-Cooled Standby Generator

Standby Power Rating (LP): 22 kW

Standby Power Rating (NG): 21 kW

Frequency: 60 Hz

Phase: Single Phase

Residential and Commercial Standby Generator

Natural Gas or LP Gas Operation

5 Year Limited Warranty

Listed and labeled by Southwest Research Institute

Installation as close as 18 inches from structure where code permits

Engine Specifications

Engine Type: Generac G-Force 1000 Series

Number of Cylinders: 2

Displacement: 997cc

Cylinder Block: Aluminum with Cast Iron Sleeve

Valve Arrangement: Overhead Valve

Lifter Type: Hydraulic

Ignition System: Solid-State

Governor System: Electronic

Compression Ratio: 10.1:1

Starter: 12 VDC

Oil Capacity Including Filter: Approx. 2.2 qt / 2.1 L

Operating RPM: 3,600

Full Pressure Lubrication System

Electronic Fuel and Ignition Control (EFIC)

Low Oil Pressure Shutdown System

High Temperature Shutdown Protection

Fuel System

Fuel Type: Natural Gas or Liquid Propane Vapor

Required NG Fuel Pressure: 3.5–7 in Water Column

Required LP Fuel Pressure: 10–12 in Water Column

14 inch Flexible Fuel Line Connector Included

Integral Sediment Trap Included

Generator Specifications

Rated Voltage: 240V

Rated Continuous Load Current: 92A LP / 88A NG

Total Harmonic Distortion: Less than 5%

Main Line Circuit Breaker: 100 Amp

Number of Rotor Poles: 2

Power Factor: 1.0

Automatic Voltage Regulation: ±1%

Skewed Stator Design

Displaced Phase Excitation

Revolving Field Alternator

Control System

Power Zone™ 200 Controller

AUTO / MANUAL / OFF / SERVICE Buttons with LED Indicators

External LED Status Indicators

Smart Exercise Technology

Programmable Exercise Cycle

Utility Voltage Sensing

Generator Voltage Sensing

Utility Interrupt Delay

Engine Warm-Up and Cool-Down Controls

Smart Battery Charger

Emergency Shutdown Button

Run / Alarm / Maintenance Logs

Automatic Firmware Upgrades via Cellular or Wi-Fi

Connectivity Features

Mobile Link® Cellular Connectivity Standard

Wi-Fi™ Connectivity

Bluetooth™ Connectivity

Remote Generator Monitoring

Monthly Generator Activity Reports

Battery Diagnostics and Monitoring

Weather Information Integration

Field Pro Mobile Service Application Support

product specifications:

Category	Value
Model	G007325-0
Power Output (LP)	22 kW
Power Output (NG)	21 kW
Voltage	240 V
Frequency	60 Hz
Phase	Single
Max Current (LP)	92 A
Max Current (NG)	88 A
THD	<5%
Circuit Breaker	100 A
Power Factor	1.0
Engine	Generac G-Force 1000 Series
Cylinders	2
Displacement	997 cc
RPM	3600
Fuel Type	Natural Gas / Liquid Propane
Dimensions (L x W x H)	46.4 x 26.3 x 30.7 inches
Weight	451 lbs
Sound Level	67 dB(A)
Quiet Mode Sound	55 dB(A)
Oil Capacity	2.2 qt
Warranty	5 years
