Generac Air-Cooled Standby Generator – Model G007324-0 (18 kW)

Name: Generac Air-Cooled Standby Generator – Model G007324-0 (18 kW) || Brags & Hayes Generators
Brand: All generators
SKU: 7324

The Generac 18 kW air-cooled standby generator (Model G007324-0) is a high-capacity residential backup power solution designed for whole-home coverage. It features a powerful G-Force 800 series engine, advanced voltage regulation, and smart connectivity for remote monitoring. Built for reliability in extreme conditions, it delivers clean, stable power suitable for sensitive electronics while operating quietly in a durable, weather-resistant enclosure.

Home All generators Generac Air-Cooled Standby Generator – Model G007324-0 (18 kW)

Share this product!

Generac Air-Cooled Standby Generator – Model G007324-0 (18 kW)

Call for Price

SKU: 7324

18 kW standby power (LP), 17 kW on natural gas

G-Force 800 Series engine (2-cylinder, 817cc)

True Power™ Technology with <5% total harmonic distortion

Mobile Link® remote monitoring with cellular connectivity

Automatic voltage regulation (±1%)

Quiet-Test™ low-speed exercise mode (as low as 55 dB)

Operates on natural gas or liquid propane

Electronic fuel and ignition control (EFIC)

Weather-resistant, sound-attenuated enclosure

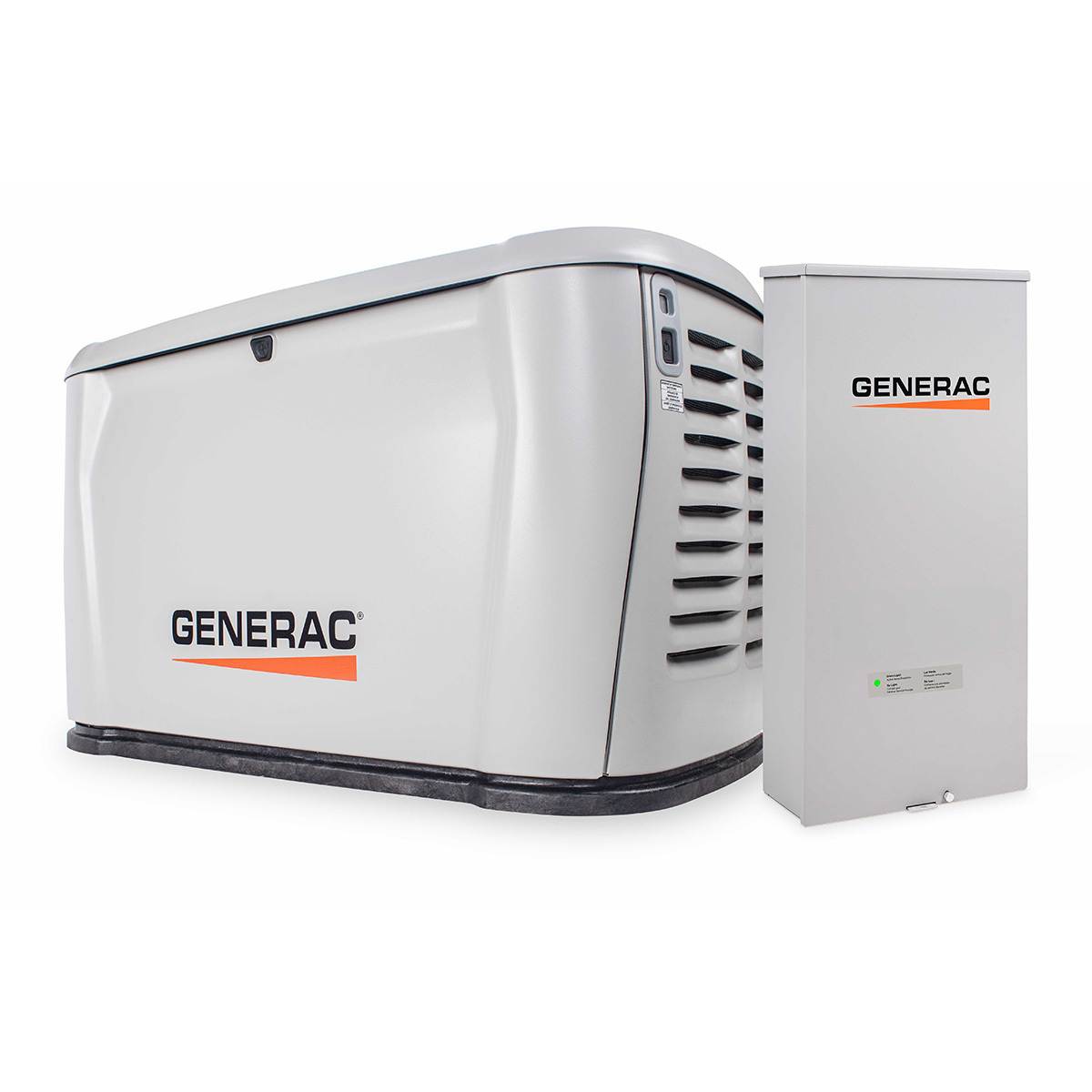

Compatible with 200A transfer switch systems

5-year limited warranty

Description

G007324-0 (18 kW) - Product Details and Specifications:

General Details

Type: Air-cooled residential standby generator

Frequency: 60 Hz

Phase: Single-phase

Fuel Type: Natural Gas or Liquid Propane

Warranty: 5-Year Limited

Engine Specifications

Engine Model: Generac G-Force 800 Series

Cylinders: 2

Displacement: 817 cc

Valve Type: Overhead Valve

Ignition: Solid-state

Governor: Electronic

Compression Ratio: 9.5:1

Oil Capacity: Approx. 2.5 qt (2.4 L)

Operating RPM: 3600

Generator Specifications

Rated Power (LP): 18 kW

Rated Power (NG): 17 kW

Voltage: 240 V

Max Load Current: 75 A (LP) / 71 A (NG)

THD: <5%

Circuit Breaker: 80 Amp

Power Factor: 1.0

Dimensions and Weight

Dimensions (L x W x H): 46.4 x 26.3 x 30.7 in

Weight: 426 lbs

Sound Levels

Normal Operation: 65 dB(A) at 23 ft

Quiet-Test Mode: 55 dB(A)

Fuel Consumption

Natural Gas (Full Load): 235 ft³/hr

Liquid Propane (Full Load): 105 ft³/hr (2.87 gal/hr)

Product Specifications:

Category	Value
Model	G007324-0
Power Output (LP)	18 kW
Power Output (NG)	17 kW
Voltage	240 V
Frequency	60 Hz
Phase	Single
Max Current (LP)	75 A
Max Current (NG)	71 A
THD	<5%
Circuit Breaker	80 A
Engine	Generac G-Force 800 Series
Cylinders	2
Displacement	817 cc
RPM	3600
Fuel Type	Natural Gas / Liquid Propane
Dimensions (L x W x H)	46.4 x 26.3 x 30.7 inches
Weight	426 lbs
Sound Level	65 dB(A)
Quiet Mode Sound	55 dB(A)
Oil Capacity	2.5 qt
Warranty	5 years
