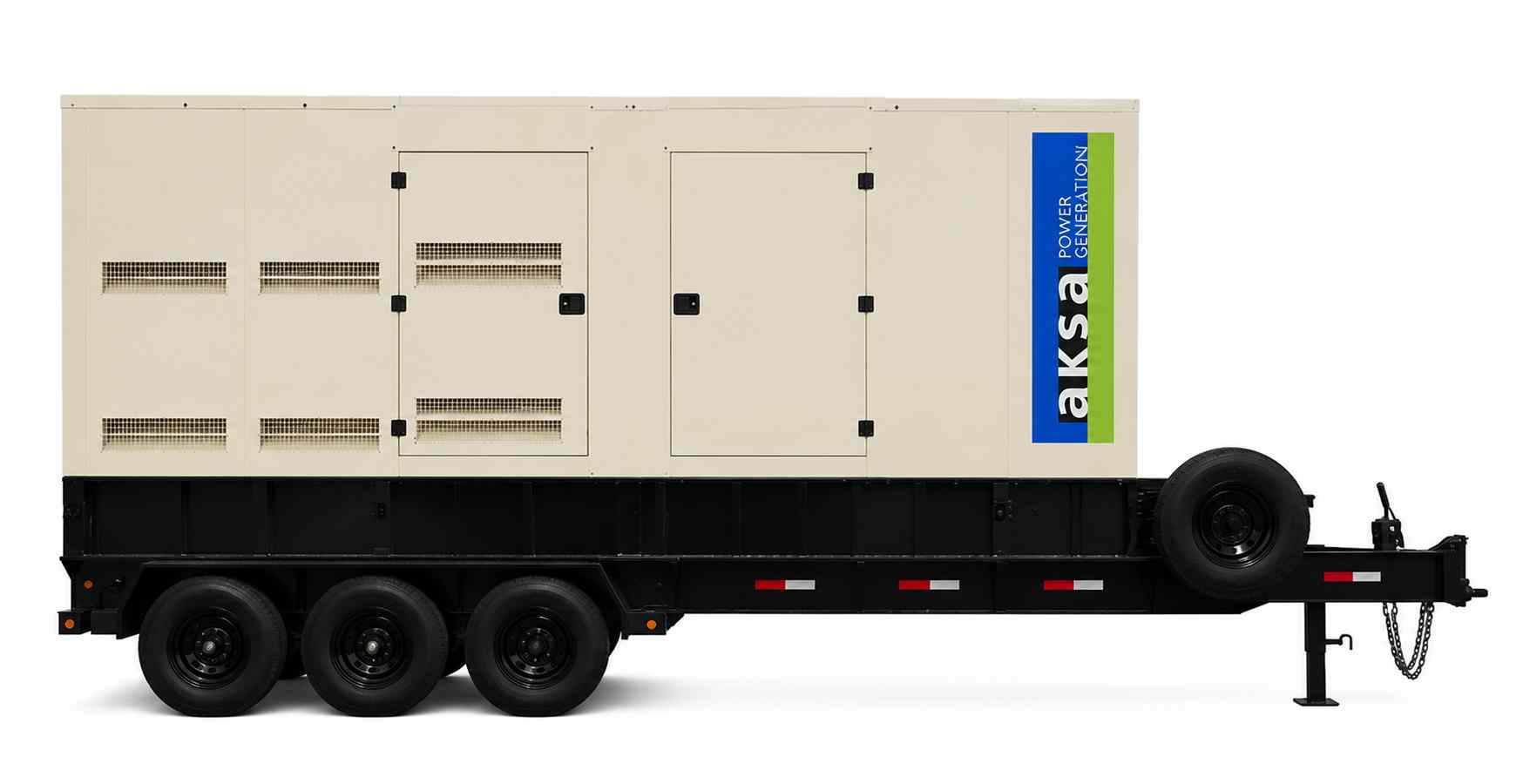

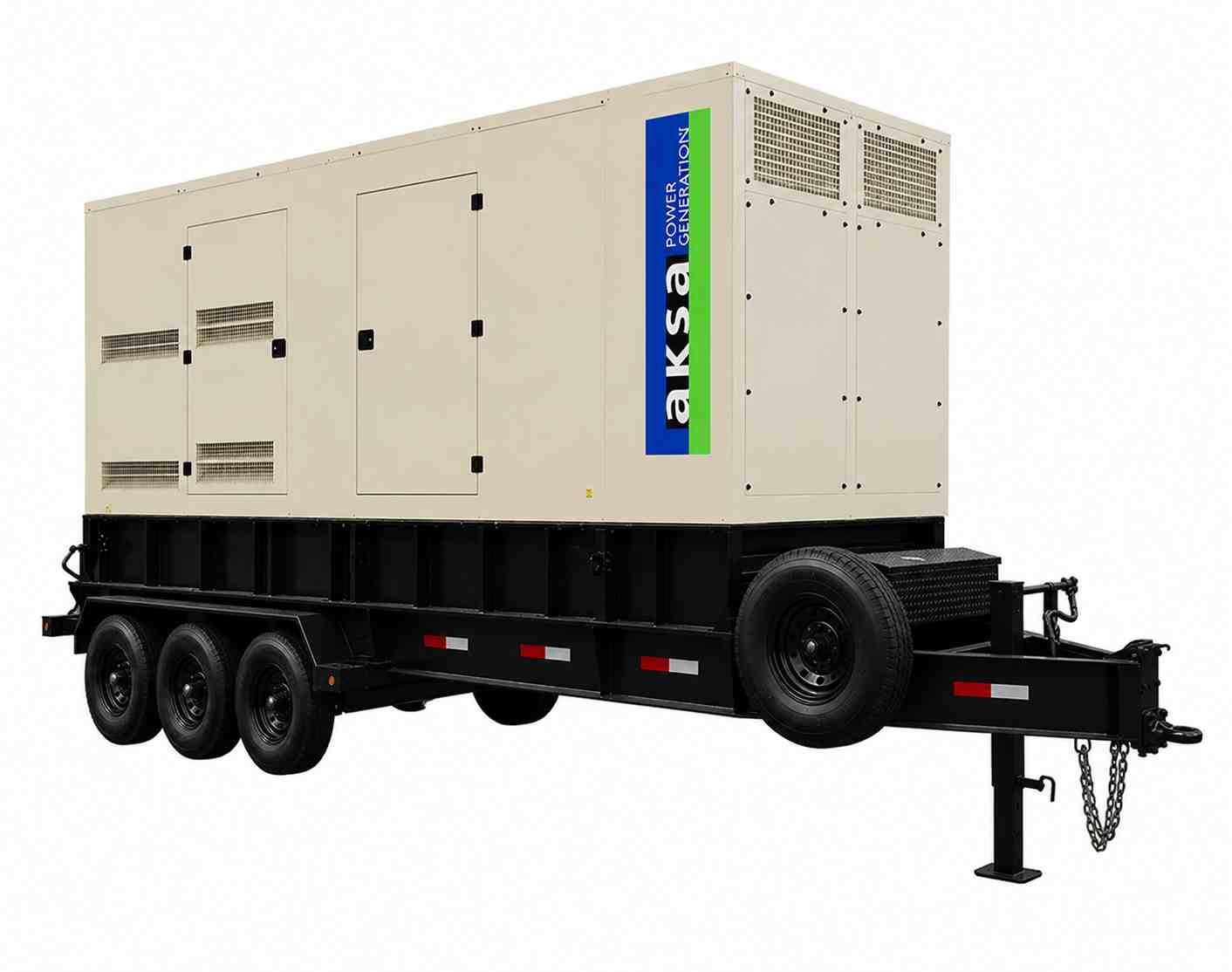

APD-EPAV600T4 product details and specifications:

General Characteristics

• Model Name: APD-EPAV600T4

• Frequency: 60 Hz

• Fuel Type: Diesel

• Engine Make and Model: Volvo TWD1673GE (Tier-4)

• Alternator Make and Model: Stamford HCI544F

• Control Panel Model: DSE 7320

Power Ratings (60 Hz, 3-Phase, Pf 0.8)

• 240/120V: Standby 621.6 kW / 777 kVA (2332.2 A); Prime 565.8 kW / 707.25 kVA (2122.8 A)

• 208/120V: Standby 621.6 kW / 777 kVA (2156.8 A); Prime 565.8 kW / 707.25 kVA (1963.2 A)

• 480/277V: Standby 624.2 kW / 780.25 kVA (938.5 A); Prime 567.6 kW / 709.5 kVA (853.4 A)

Engine Specifications

• Engine: Volvo, Model TWD1673GE

• Number of Cylinders: 6 cylinders, in-line

• Max. Power @ Rated RPM: 685 kWm (932 BHP)

• Brake Mean Effective Pressure: 2.6 MPa @ prime

• Aspiration & Cooling: Turbo Charged

• Total Displacement: 983.9 in³ (16.12 L)

• Bore: 5.67 in. (144 mm)

• Stroke: 6.5 in. (165 mm)

• Compression Ratio: 16.8:1

• Governor Type: Volvo/EMS 2.3

• Rated RPM: 1800

• Rotation: CCW viewed on flywheel

Engine Electrical System

• Charging Alternator: 24V, insulated from earth

• Alternator Rating: 300 amp

• Starter Motor Power: 7 kW

• Starter Motor Rated Voltage: 12V DC

• Battery Quantity x Rating & CCA: 2 x 225Ah

Fuel System

• Type of Injection: Direct

• Fuel Injection Pump: Unit injector hybrid

• Max. Fuel Flow: 210 L/hr (55.5 gal/hr)

• Fuel Filter & Water Separator: Available

Fuel Consumption

• 100% Load (Standby): 47.77 gal/hr

• 100% Load (Prime): 43 gal/hr

• 75% Load (Prime): 32.25 gal/hr

• 50% Load (Prime): 22.27 gal/hr

Exhaust System

• Exhaust Gas Flow: 126.6 m³/min

• Max. Back Pressure: 19 kPa

• Max. Exhaust Gas Temp After Turbine: 455°C

Cooling System

• Radiator Ambient Temp: TBD

• Coolant Capacity: 48 L (12.68 gal)

• Thermostat Operation Range: 82–92°C

• Combustion Air Flow: 48.1 m³/min

• Engine Coolant Flow: 360 L/min (95.4 gal/min)

• Cooling Fan Air Flow: 816 m³/min

• Max. Allowed Air Intake Restriction (incl. piping): 5 kPa

• Air Filter: Volvo Penta filter

Lubrication System

• Oil Capacity: 48 L (12.68 gal)

• Oil Cooler: Water cooled

• Oil Temp (continuous operation): 130°C

Alternator Characteristics

• Manufacturer: Stamford

• Model: HCI544F – 60Hz

• Design: Double Layer Lap

• Exciter Type: Self Excited

• Stator: 2/3 winding pitch

• Rotor: Single bearing, flexible disc

• Leads: 12

• Insulation: Class H

• Temp. Rise @ 40°C Ambient: 125°C Prime

• Max. Over-speed: 2250 rev/min

• Voltage Regulator: MX321

Optional 2-Position VSS (kW Rating at 1800rpm/60Hz)

• 480/277V – 3ph – 0.8pf: 600 kW – 902.1A

• 208/120V – 3ph – 0.8pf: 600 kW – 2081A

Generating Set Control Unit – DSE 7320

• UL recognized, NFPA110 Level 1 compatible

• LCD text display, key menu navigation and front panel editing

• Off/Manual/Auto mode switch with two-wire starting/stopping in Auto mode

• Engine exerciser and real-time clock event logging

• IP65 front panel rating with supplied sealing gasket

• Configurable 8 inputs, 6 analogue inputs, 6 DC outputs with expansion capability

• Fully configurable via DSE Configuration Suite PC software (license free)

• Remote SCADA monitoring and BMS integration features

• Communication Ports: MODBUS

• Instruments: Engine (speed, oil pressure, coolant temp, battery volts, maintenance due); Generator (voltage, current, frequency, earth current, kW, Pf, kVAr, kWh/kVAh/kVArh, phase sequence); Mains (voltage, frequency)

Protections – Pre-Alarms / Warnings / Shutdowns / Electrical Trip

• Pre-Alarms: low oil pressure, high/low engine temperature, over/under speed, under/over generator frequency & voltage, ECU warning

• Warning: charge failure, battery under voltage, fail to stop, low fuel level (opt.), kW overload, negative phase sequence, loss of speed signal

• Shutdowns: fail to start, emergency stop, low oil pressure, high engine temperature, low coolant level, over/under speed, under/over frequency & voltage, oil pressure sensor open, phase rotation

• Electrical Trip: earth fault, kW overload, generator over current, negative phase sequence

Gen-Set Canopy Dimensions

• Length: 271.3 in

• Width: 88.82 in

• Height: 101.57 in

• Dry Weight: 18,607 lb

• Fuel Tank Capacity: 554.8 gal

• Genset Sound Level: 80 dBA @ 23 ft

Base-Frame Enclosure

• Mounted entirely on a heavy-duty base frame with an integral double-wall fuel tank

• Anti-vibration isolators between engine/alternator supports and the base frame

• Modular enclosure design without welding; four doors per side plus back door for control system access

• Coated exhaust silencer, internally mounted; exhaust pipe thermally insulated on engine compartment

• Electrostatic polyester powder paint finish; phosphate pre-coating for corrosion resistance

• Lockable hinged panel doors; fuel filling cap and emergency stop externally accessible

Convenience Panel Accessories

• (2) Two 20A, 120V GFCI receptacles and breakers

• (3) Three 50A, 240V twist-lock receptacles and breakers

• 5-15A, 125V inlet receptacles for battery charger and water heater

• Two-wire remote start station

• Generator set voltage adjust rheostat

• (5) 400A rated, stud-type quick-connect cam-locks

Voltage Selector Switch

• Three positions: 480/277V, 208/120V – 3ph & 240/120V – 1ph

• Product of Salzer or Kraus & Naimer

Trailer

• DOT-approved 24,000 lb heavy-duty triple-axle trailer

• Spring axles with electric brakes

• Breakaway kit with charger

• 5,000 lb front jack and rear stabilizer jacks

• 7-pin trailer plug

• Tool box and spare tire

Circuit Breaker

• 250 Amp capacity main line circuit breaker

• Shunt trip controller by generator set control

Standard Features & Accessories

• Trailer w/ spare tire and tool box

• Sound Attenuated Steel Enclosure

• Heavy Duty Steel Base-frame

• Exhaust system with DOC + SCR

• Flex Fuel Lines

• Oil Drain Valve & Extension

• Convenience Panel

• Voltage Selector Switch – 3 position

• Emergency Stop Switch

• Battery, Battery Rack & Cables

• Battery Charger (Input: 196-264V, Output: 27.6V 5A or 13.8V 5A)

• Main Line CB

• Jacket Water Heater (120 VAC, 1000 W)

• Operations Manual

• 1 Year / 2000 hours Limited Warranty

Optional Accessories

• Upsized Alternator

• PMG Excitation

• Alternator Anti-condensation Heater

• 4 Position VSS

• Fuel Level Monitoring on Controller & High Fuel Alarm

• Fuel Line Check Valve

• Oil Temperature Gauge

• Oil Heater

• Battery Charger 10Amp

• Battery Heater Blanket

• Main Line CB (100% rated)

• Remote Monitoring and Control

• Remote Annunciator

• Note: Generator shall de-rate 3% for every 1,000 ft above 2,500 ft altitude

Aksa Certificates

• TS ISO 8528

• CE

• SZUTEST

• 2000/14/EC
