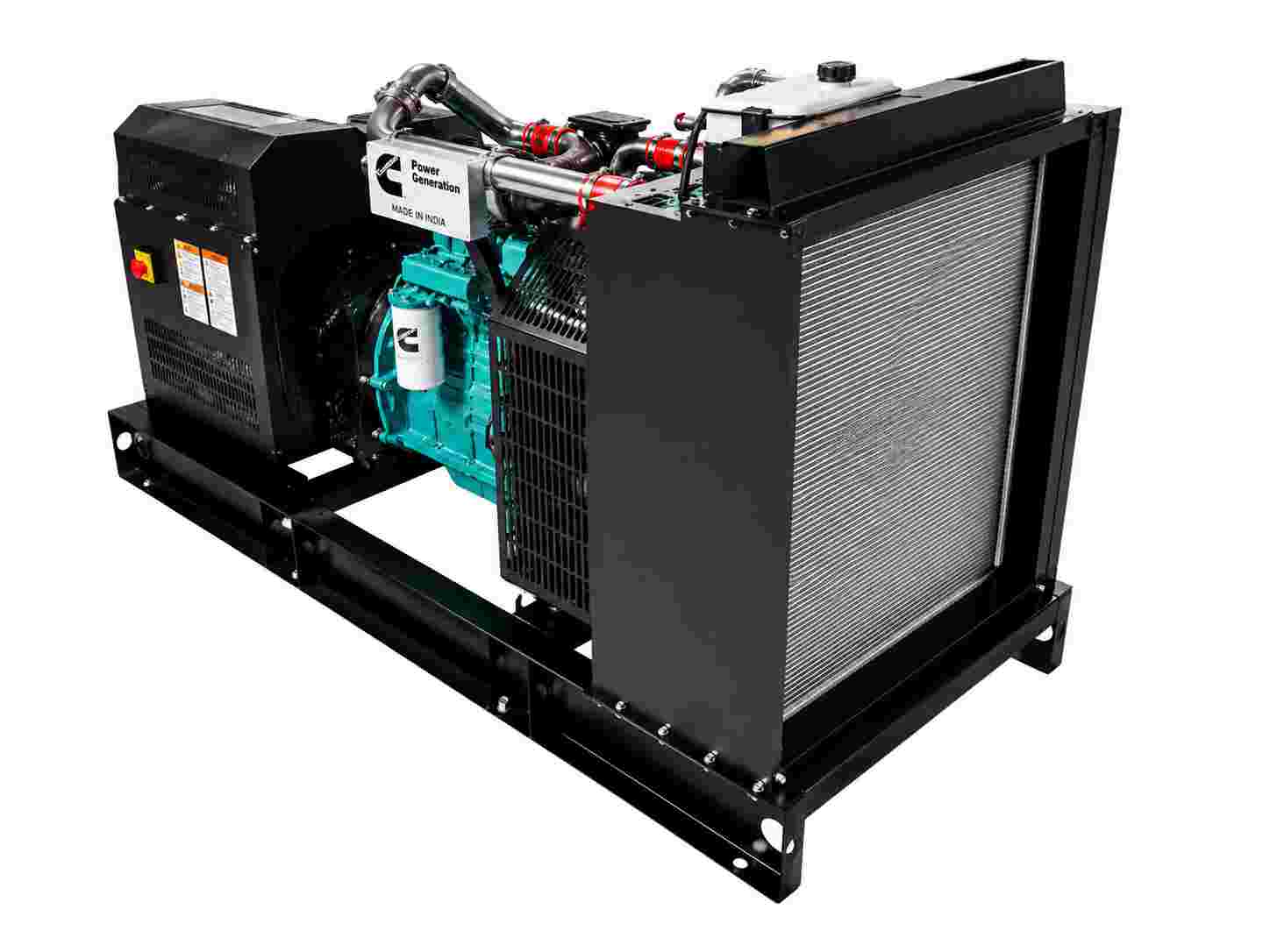

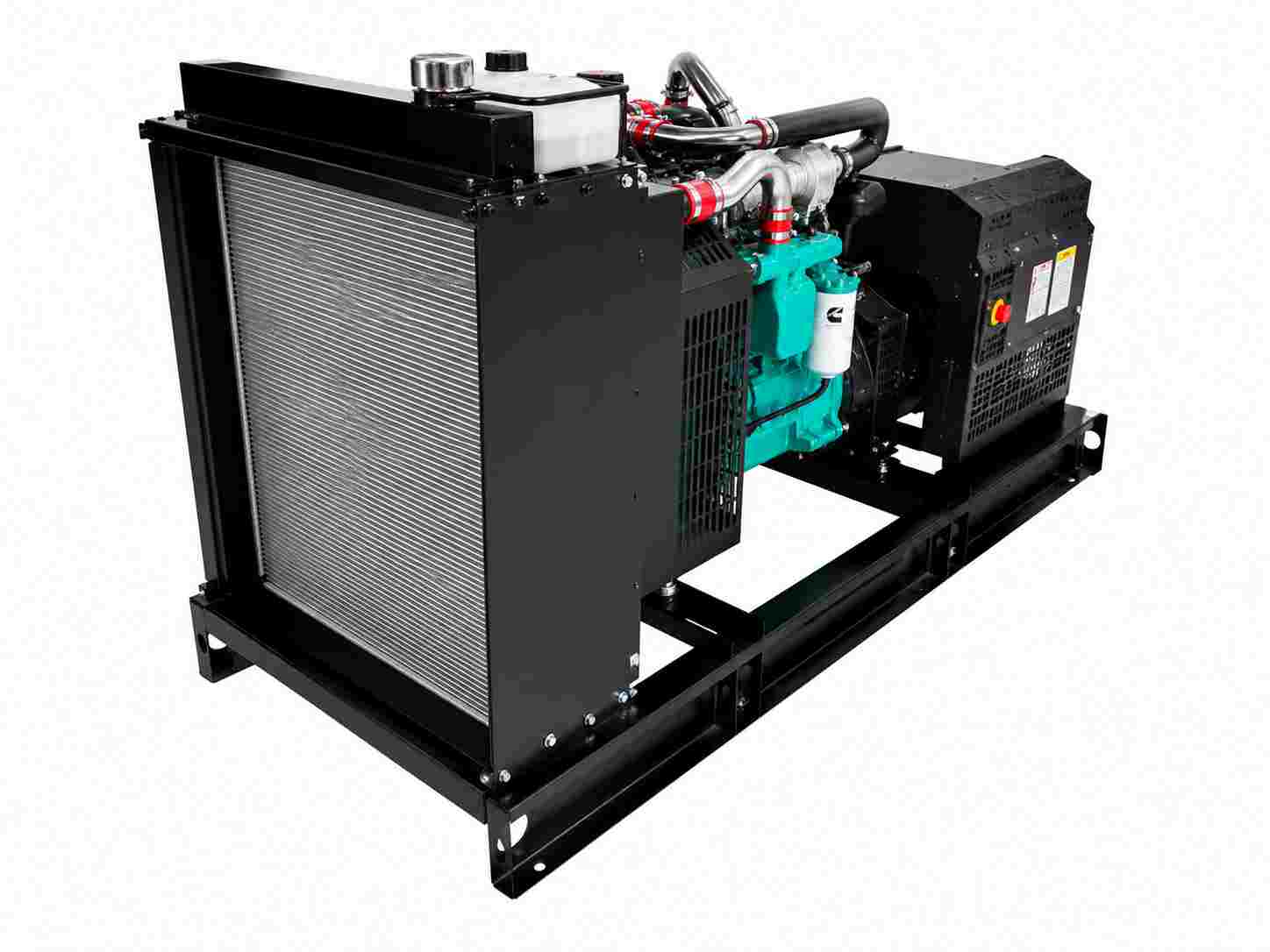

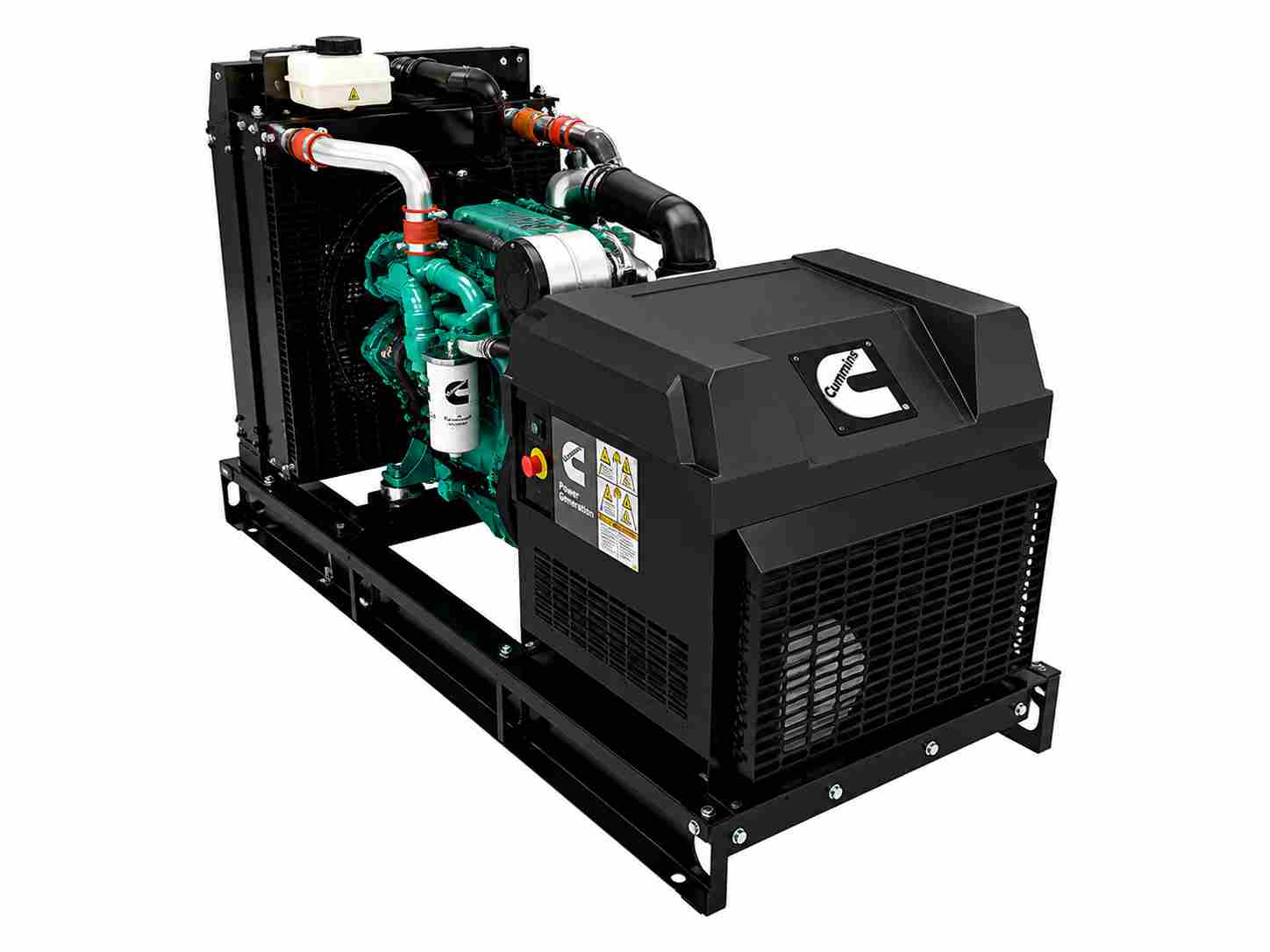

C150D6C Details & Specifications:

General

• Model: C150D6C

• Model Number: A061T474

• Standby Rating (60 Hz): 150 kW / 150 kVA

Generator Set Specifications

• Controller: PowerCommand 1.1

• Operating temp. range: -40°F to +122°F

• Circuit Breaker: 800 A (adjustable)

• Governor reg. class: ISO 8528 Part 1 Class G3

• Voltage regulation, no load to full load: ± 1.0%

• Random voltage variation: ± 1.0%

• Frequency regulation: Isochronous

• Random freq. variation: ± 0.5%

• Radio frequency emissions compliance: FCC code title 47 part 15 class A and B

Engine Specifications

• Design: QSB7

• Displacement: 6.69 L (408 in³)

• Cylinder block: Cast iron, in-line

• Battery capacity (at 0°C / 32°F): 2x 850 amps

• Battery charging alternator: 100 amps

• Starting voltage: 2x 12-volt, negative ground

• Lube oil filter type(s): Spin-on with relief valve

• Standard cooling system: High ambient radiator

• Rated speed: 1800 rpm

Alternator Specifications

• Design: Brushless, 4 pole, drip proof, revolving field

• Stator: 2/3 pitch

• Rotor: Direct coupled, flexible disc

• Insulation system: Class H per NEMA MG1-1.65

• Standard temp. rise: 120ºC (248°F) Standby

• Exciter type: Torque match (shunt) with PMG as option

• Alternator cooling: Direct drive centrifugal blower

• AC waveform Total Harmonic Distortion (THDV): < 5% no load to full linear load, < 3% for any single harmonic

• Telephone Influence Factor (TIF): < 50 per NEMA MG1-22.43

• Telephone Harmonic Factor (THF): < 3%

Dimensions & Weight

• Dim “A”: 2867 mm (113 in.)

• Dim “B”: 1016 mm (40 in.)

• Dim “C”: 1415 mm (56 in.)

• Set weight, wet: 1390 kg (3064 lbs.)

Accessories (Available)

• Battery heater kit

• Engine oil heater

• Remote control displays

• Auxiliary output relays (2)

• Auxiliary configurable signal inputs (8) and relay outputs (8)

• Annunciator – RS485

• Audible alarm

• Enclosure Sound Level 1 & 2

• Battery charger – stand-alone, 12 V

• Circuit breakers

• Remote monitoring device – PowerCommand 500/550

• Base barrier – elevated generator sets

• Alternator heater

Codes and Standards

• Designed in facilities certified to ISO 9001; manufactured in facilities certified to ISO 9001 or ISO 9002

• Available Listed to UL 2200, Stationary Engine Generator Assemblies

• Meets Prototype Test Support (PTS) requirements of NFPA 110 for Level 1 systems

• Engine certified to U.S. EPA SI Stationary Emission Regulation 40 CFR, Part 60
