PD20-01IT4 product details and specifications:

GENERAL

• Model: PD20-01IT4

• Power Rating: 17 kWe Standby

• Frequency / Speed: 60 Hz / 1800 RPM

• Fuel Type: Diesel

• UL 2200 Listed: Yes

• CSA Approved: Yes

• EPA Certification: Interim Tier 4

• Seismic Certification: IBC 2021

• Compliance: NFPA 110 / CSA C282

• Warranty: 2 Year / 2,000 Hour Standby Limited

ENGINE

• Manufacturer: Perkins

• Model: 404D-22G

• Type: 4-Cycle, Naturally Aspirated

• Cylinder Arrangement: 4 Cylinder Inline

• Displacement: 135 Cu. In. (2.22 lit)

• Bore x Stroke: 3.31 in. x 3.94 in.

• Compression Ratio: 23.3:1

• Rated RPM: 1800 RPM

• Max HP Standby: 32.6 HP (24.3 kWm)

• Governor: Mechanical

• Deration: Rated power available up to 1,640 ft (500 m) at ambient up to 86°F (30°C)

ALTERNATOR / GENERATOR

• Model: Stamford S1L2-J41

• Type: Brushless, Single Bearing

• Voltage Regulator: Stamford VITA 01 Digital AVR

• Voltage Regulation: ± 1%

• Poles: 4 Pole, Rotating Field

• Standby Temp Rise: 125°C Rise Over 40°C Ambient

• Load Pickup: 100% of Rated Load — One Step

• Max Harmonic Content: 5%

• Standards: NEMA MG 1, IEEE, ANSI

VOLTAGE RATINGS

• 120/240V Single Phase: 17 kWe | 71A | PF 1.0 | 12 Lead Double Delta

• 208V 3-Phase: 17 kWe | 59A | PF 0.8 | 12 Lead WYE

• 240V 3-Phase: 17 kWe | 51A | PF 0.8 | 12 Lead DELTA

• 277/480V 3-Phase: 17 kWe | 26A | PF 0.8 | 12 Lead WYE

• 600V 3-Phase: 17 kWe | 20A | PF 0.8 | 4 Lead WYE

CONTROL PANEL

• Model: Blue Star DCP7310 Microprocessor Based Gen-Set Controller

• Enclosure: NEMA 12

• Standard Shutdowns: Low Oil Pressure, High Coolant Temp, Overspeed, Overcrank

• Alarms: Emergency Stop Pushbutton, Audible Alarm Buzzer with Silencing Switch

• Communication: RS485, CAN Bus (J1939), Windows-Based Software

• Protection: Undervoltage, Overvoltage, Overcurrent, Overfrequency, Underfrequency, Reverse Power, Phase Imbalance

• IP Rating: IP 65 (with supplied gasket)

• Listing: cULus Listed, CE Approved

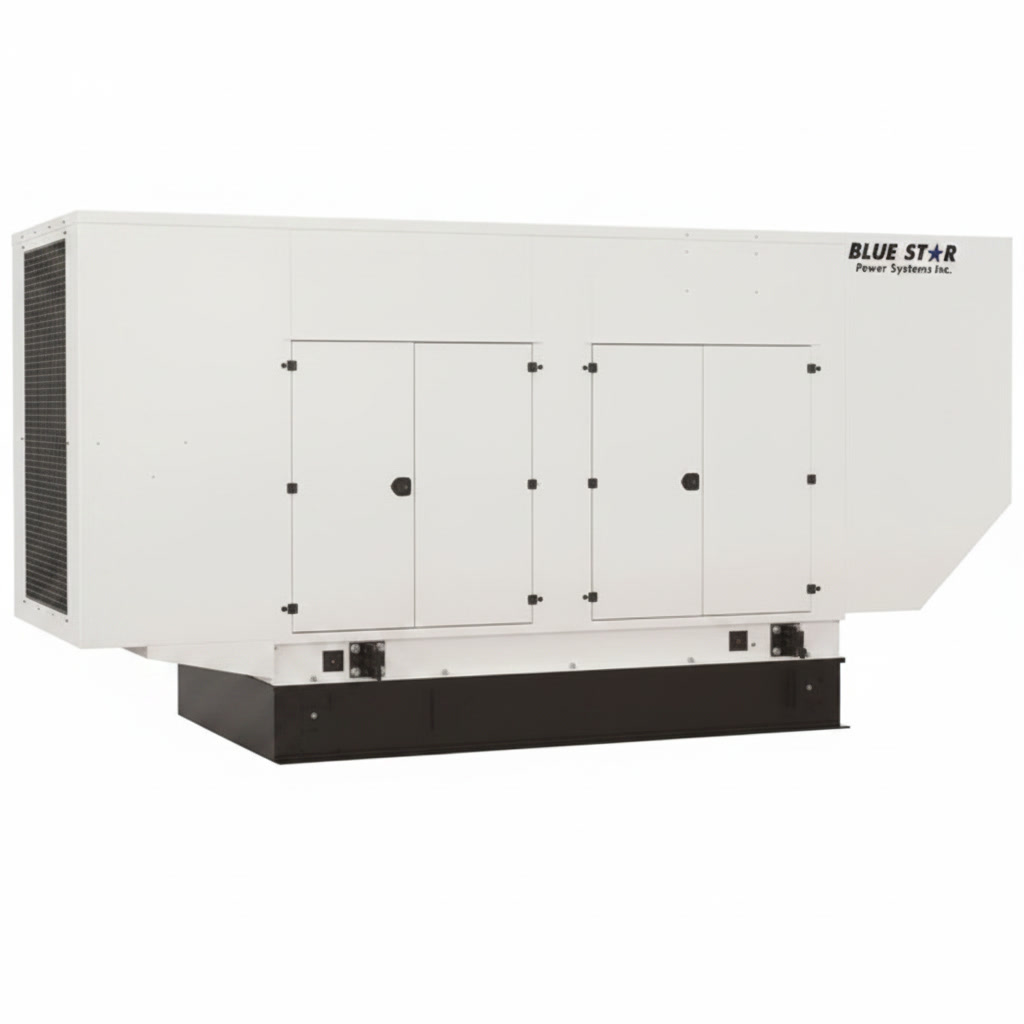

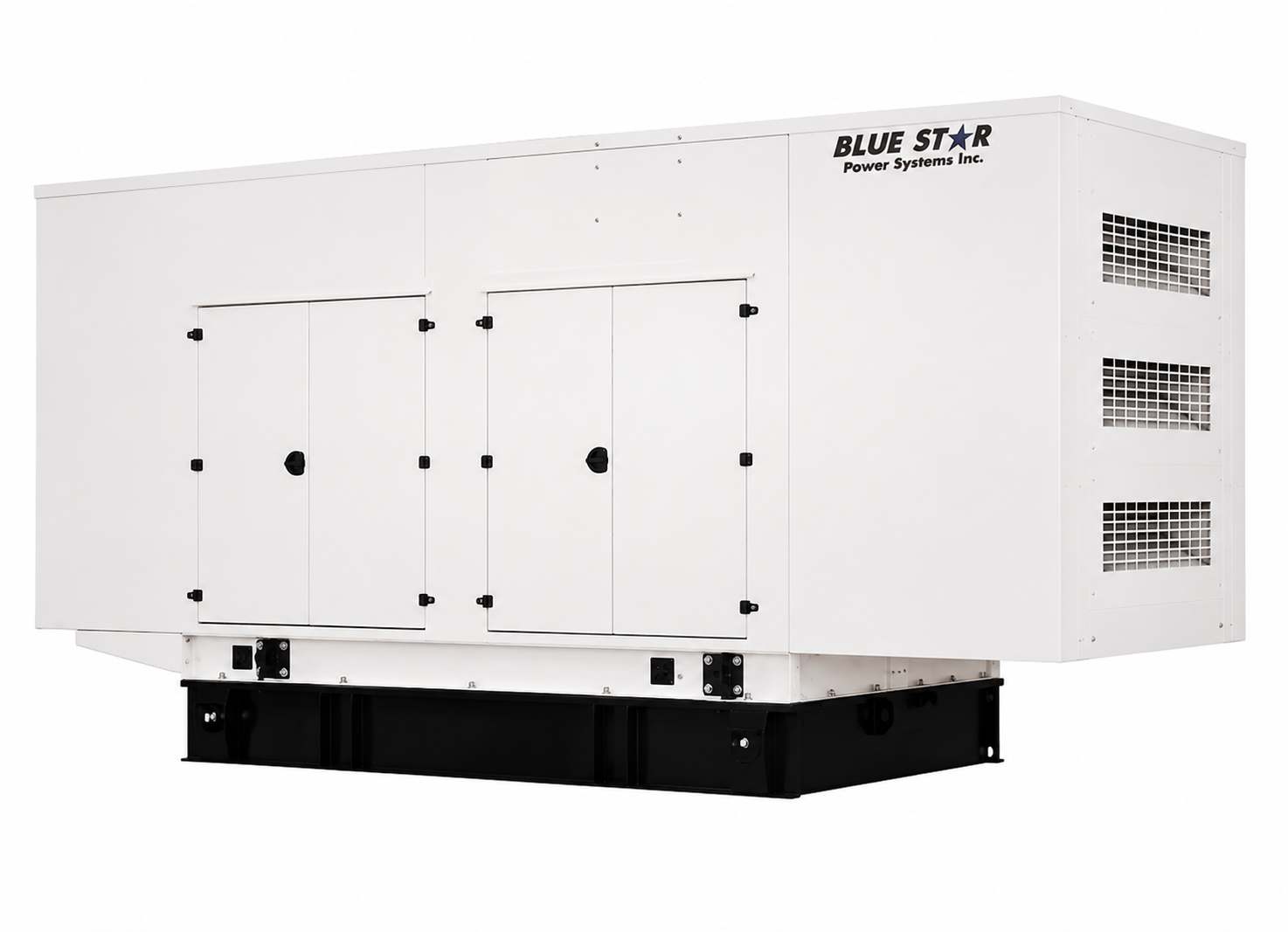

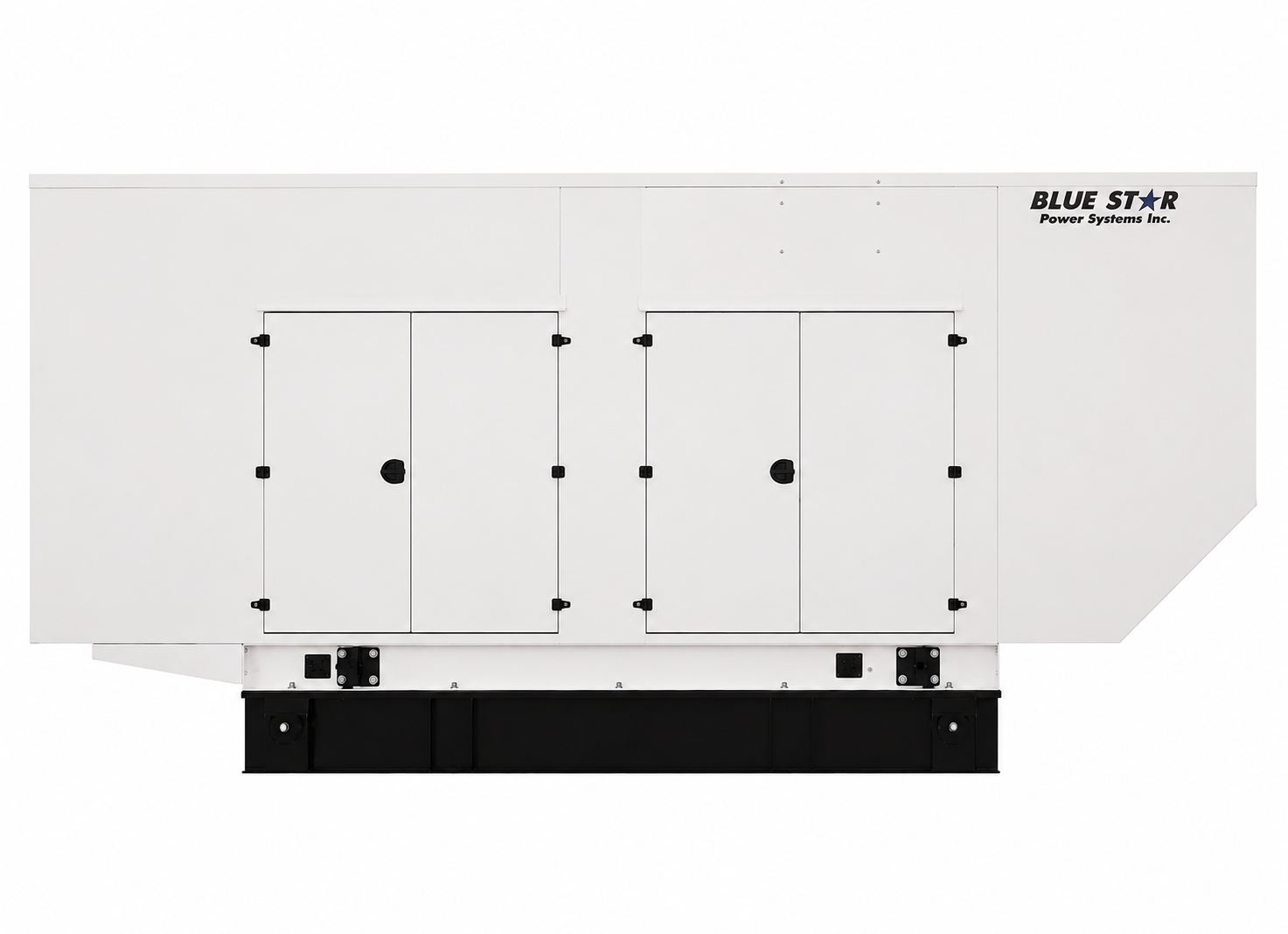

ENCLOSURE

• Level: Level 2 — Weather Proof with Acoustical Foam

• Material: Powder Coated 14 Gauge Steel

• Wind Rating: 200 MPH (IBC 2021 / ASCE/SEI 7-16)

• Roof: Pitched for structural integrity and improved watershed

• Doors: Keyed alike lockable with draw down latches and stainless steel hinges

• Acoustical Foam: 1.5" Polydamp Type D Sound Attenuating Foam (PAF)

• Base: Formed Steel with mounting and lifting holes; vibration isolation mounts

• Fasteners: All Stainless Steel

COOLING SYSTEM

• Type: Unit Mounted Radiator

• Ambient Capacity: 122°F (50°C)

• Max Static Pressure (Rad. Exhaust): 0.50 in. H2O (0.12 kPa)

• Water Pump Flow Rate: 15.5 GPM (58.7 lit/min)

• Heat Rejection to Coolant: 1,269 BTUM (22.2 kW)

• Heat Radiated to Ambient: 275 BTUM (4.80 kW)

EXHAUST SYSTEM

• Gas Temperature at Stack: 950°F (510°C)

• Gas Volume at Stack Temp: 168 CFM (4.76 m³/min)

• Max Exhaust Restriction: 40.8 in. H2O (10.2 kPa)

• Silencer: Critical Grade Compact CPJ Series, Mounted to Engine

AIR REQUIREMENTS

• Aspirating Air Flow: 61.5 CFM (1.74 m³/min)

• Radiator Cooling Air Flow: 1,654 CFM (46.8 m³/min)

• Air Cleaner: Dry Single Stage with Air Restriction Indicator

FUEL CONSUMPTION

• At 100% Load: 1.81 gal/hr (6.84 lit/hr)

• At 75% Load: 1.43 gal/hr (5.40 lit/hr)

• At 50% Load: 1.09 gal/hr (4.13 lit/hr)

FLUIDS CAPACITY

• Total Oil System: 2.80 gal (10.6 lit)

• Engine Jacket Water: 0.95 gal (3.60 lit)

• System Coolant: 1.85 gal (7.00 lit)

FUEL TANK OPTIONS (Sub-Base, UL 142 Listed, Double Wall)

• 24-Hour Tank: 70 Gallon — 66 x 36 x 64 in.

• 48-Hour Tank: 140 Gallon — 66 x 36 x 78 in.

• 72-Hour Tank: 210 Gallon — 84 x 36 x 80 in.

• All tanks include: supply & return connections, fuel level gauge, fuel leak switch, fill & vent plumbing, double-wall secondary containment

ELECTRICAL ACCESSORIES

• Main Line Breaker: 80 Amp 2-Pole 240V, Mounted & Wired in NEMA 1 Enclosure

• Battery: 12 Volt System with Rack and Cables

• Battery Charger: BC1206A Series — 12V 6A, Mounted & Wired to Terminal

• Jacket Water Heater: 1,000W 120VAC Engine Block Heater, rated to -20°F, with Isolation Valves and wired to terminal

• Oil Drain: Plumbed to Bulkhead Fitting in Base

SOUND LEVELS (measured at 23 ft / 7 m, ISO 8528-10)

• OPU: 70 dBA (No Load) / 72 dBA (Full Load)

• Level 1 Enclosure: 64 dBA (No Load) / 66 dBA (Full Load)

• Level 2 Enclosure: 60 dBA (No Load) / 63 dBA (Full Load)

• Level 3 Enclosure: 58 dBA (No Load) / 60 dBA (Full Load)

FACTORY TEST

• Standard Commercial Testing: Verification of Alarm Shutdowns, Voltage Settings, Block Loading to Rated kWe and PF

• All units built and tested to cUL, CSA, and NFPA 110 standards
