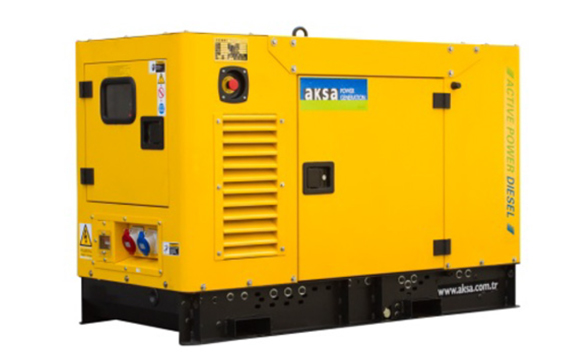

APD15MA-6 AKSA Diesel Generating Set 12.3 kVA with Sound Shield Enclosure
APD15MA-6 AKSA Diesel Generating Set 12.3 kVA with Sound Shield Enclosure
Call for Price
GENERAL DETAILS
Manufacturer: AKSA Power Generation
Model: APD15MA-6
Frequency: 60 Hz
Power Factor: 0.8
Standby Power: 15 kVA / 12 kW
Prime Power: 14 kVA / 10.88 kW
Voltage Options: 480/277V, 380/220V, 220/127V
- Standby power rating: 12.3 kVA / 12.3 kW; Prime power: 11 kVA / 11 kW
- Single-phase output: 220/110V at 60 Hz with power factor 1.0
- Compact design with easy start and maintenance capability
- Powered by Aksa A4CRX19 diesel engine with 4 cylinders and 1.809L displacement
- Brushless single-bearing alternator with automatic voltage regulation and low harmonic distortion
- DSE6120 control system with AMF capability, LCD monitoring, and protection functions
- Comprehensive factory testing including full load and safety shutdown verification
- Available with optional canopy, soundproof canopy, and trailer configurations
- Heavy-duty fabricated steel base frame with anti-vibration mounting
APD15MA-6 Details and Specifications
ENGINE DETAILS
Engine Model: A4CRX19
Engine Type: Diesel, 4-stroke, water cooled
Number of Cylinders: 4 (Inline)
Total Displacement: 1.809 L
Engine Speed: 1800 rpm
Aspiration: Natural
Compression Ratio: 18:1
Governor Type: Mechanical
Fuel Consumption (Full Load): 4.51 L/hr
Fuel Tank Capacity: 32 L
Oil Capacity: 6 L
Coolant Capacity: 16.3 L
ALTERNATOR DETAILS
Type: Brushless, single bearing
Insulation Class: H
Excitation: Self-excited
Voltage Regulation: Automatic Voltage Regulator (AVR)
Total Harmonic Distortion: <5% (load)
Protection Class: IP21 (optional IP22/IP23)
Cooling: Direct drive centrifugal blower fan
CONTROL SYSTEM
Controller Model: DSE6120
Auto Mains Failure (AMF) capability
Microprocessor-based control
LCD display for monitoring parameters
Alarms: Low oil pressure, high temperature, over/under speed, voltage faults
Emergency stop button
Battery charger included
PRODUCT SPEcIficATIONS:
| Model | APD15MA-6 |
| Type | Diesel Generating Set |
| Standby Power (kW) | 12.3 |
| Prime Power (kW) | 11 |
| Voltage | 220/110V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Engine Model | A4CRX19 |
| Engine Speed (rpm) | 1800 |
| Cylinders | 4 Inline |
| Displacement (L) | 1.809 |
| Fuel Type | Diesel |
| Fuel Consumption (L/hr @ full load) | 4.51 |
| Fuel Tank Capacity (L) | 32 |
| Oil Capacity (L) | 6 |
| Coolant Capacity (L) | 16.3 |
| Alternator Type | Brushless, Single Bearing |
| Insulation Class | Class H |
| Cooling System | Water Cooled |
| Length (inch) | 55.1 |
| Width (inch) | 29.9 |
| Height (inch) | 35.9 |
| Weight (lbs) | 848.8 |
PRODUCT RELATED DOCUMENTS:
| Peso | 848.7787 lbs |
|---|---|
| Dimensiones | 55.1 × 29.9 × 35.9 in |
