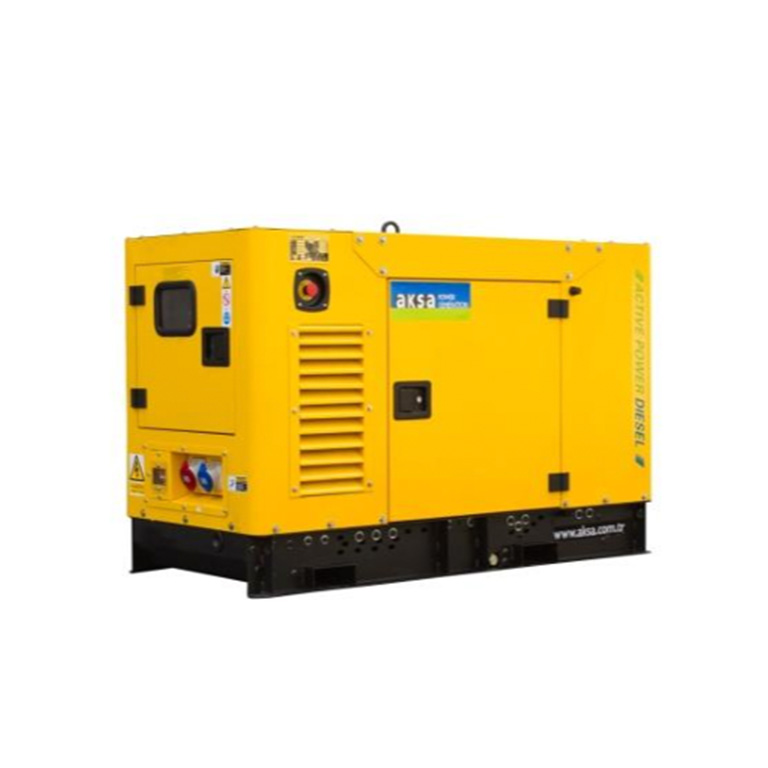

APD15A-6 AKSA Diesel Generating Set 15kVA with Sound Shield Enclosure
High quality, reliable diesel generating set designed to provide dependable power solutions for a wide range of applications. Engineered for performance, durability, and ease of maintenance.
APD15A-6 AKSA Diesel Generating Set 15kVA with Sound Shield Enclosure
Call for Price
General Details
Manufacturer: AKSA Power Generation
Model: APD15A-6
Frequency: 60 Hz
Power Factor: 0.8
Standby Power: 15 kVA / 12 kW
Prime Power: 14 kVA / 10.88 kW
Voltage Options: 480/277V, 380/220V, 220/127V
- Standby power rating: 15 kVA / 12 kW; Prime power: 14 kVA / 10.88 kW
- Compact design with easy start and maintenance capability
- Suitable for multiple voltage configurations: 480/277V, 380/220V, 220/127V at 60 Hz
- Powered by heavy-duty Aksa diesel engine with 4 cylinders and 1.809L displacement
- Brushless alternator with automatic voltage regulation and low harmonic distortion
- Comprehensive control system with DSE6120 module for monitoring and protection
- Full load tested with integrated safety shutdown and control functions
- Available with optional soundproof canopy and trailer configurations
- Complies with ISO 8528 and ISO 3046 standards for performance and reliability
Descripción
Additional Info
Reviews
Descripción
APD15A-6 Diesel Generator - Details and Specifications
Engine Specifications
- Engine Model: A4CRX19
- Engine Type: Diesel, 4-stroke, water cooled
- Number of Cylinders: 4 (Inline)
- Total Displacement: 1.809 L
- Engine Speed: 1800 rpm
- Aspiration: Natural
- Compression Ratio: 18:1
- Governor Type: Mechanical
- Fuel Consumption (Full Load): 4.51 L/hr
- Fuel Tank Capacity: 32 L
- Oil Capacity: 6 L
- Coolant Capacity: 16.3 L
Alternator Specifications
- Type: Brushless, single bearing
- Insulation Class: H
- Excitation: Self-excited
- Voltage Regulation: Automatic Voltage Regulator (AVR)
- Total Harmonic Distortion: <5% (load)
- Protection Class: IP21 (optional IP22/IP23)
- Cooling: Direct drive centrifugal blower fan
Control System
- Controller Model: DSE6120
- Auto Mains Failure (AMF) capability
- Microprocessor-based control
- LCD display for monitoring parameters
- Alarms: Low oil pressure, high temperature, over/under speed, voltage faults
- Emergency stop button
- Battery charger included
Dimensions and Weight
Open Type Dimensions: 1400 x 760 x 912 mm
Open Type Weight: 385 kg
Canopy Type Dimensions: 1672 x 823 x 1127 mm
Canopy Type Weight: 570 kg
PRODUCT SPECIFICATIONS:
| Specification | Value |
| Manufacturer | AKSA Power Generation |
| Model | APD15A-6 |
| Frequency | 60 Hz |
| Power Factor | 0.8 |
| Standby Power | 15 kVA / 12 kW |
| Prime Power | 14 kVA / 10.88 kW |
| Voltage Options | 480/277V, 380/220V, 220/127V |
| Engine Model | A4CRX19 |
| Engine Type | Diesel, 4-stroke, water cooled |
| Number of Cylinders | 4 (Inline) |
| Displacement | 1.809 L |
| Engine Speed | 1800 rpm |
| Aspiration | Natural |
| Compression Ratio | 18:1 |
| Governor | Mechanical |
| Fuel Consumption (Full Load) | 4.51 L/hr |
| Fuel Tank Capacity | 32 L |
| Oil Capacity | 6 L |
| Coolant Capacity | 16.3 L |
| Alternator Type | Brushless, single bearing |
| Insulation Class | H |
| Excitation | Self-excited |
| Voltage Regulation | Automatic Voltage Regulator (AVR) |
| THD | <5% (load) |
| Protection Class | IP21 |
| Cooling System (Alternator) | Direct drive centrifugal blower fan |
| Controller Model | DSE6120 |
| Control Type | AMF (Auto Mains Failure) |
| Display | LCD |
| Open Type Dimensions | 55.12 x 29.92 x 35.91 in |
| Open Type Weight | 848.78 lbs |
| Canopy Dimensions | 65.83 x 32.40 x 44.37 in |
| Canopy Weight | 1256.63 lbs |
PRODUCT RELATED DOCUMENTS:
Additional Info
| Peso | 1257 lbs |
|---|---|
| Dimensiones | 65.8 × 32.4 × 44.4 in |
