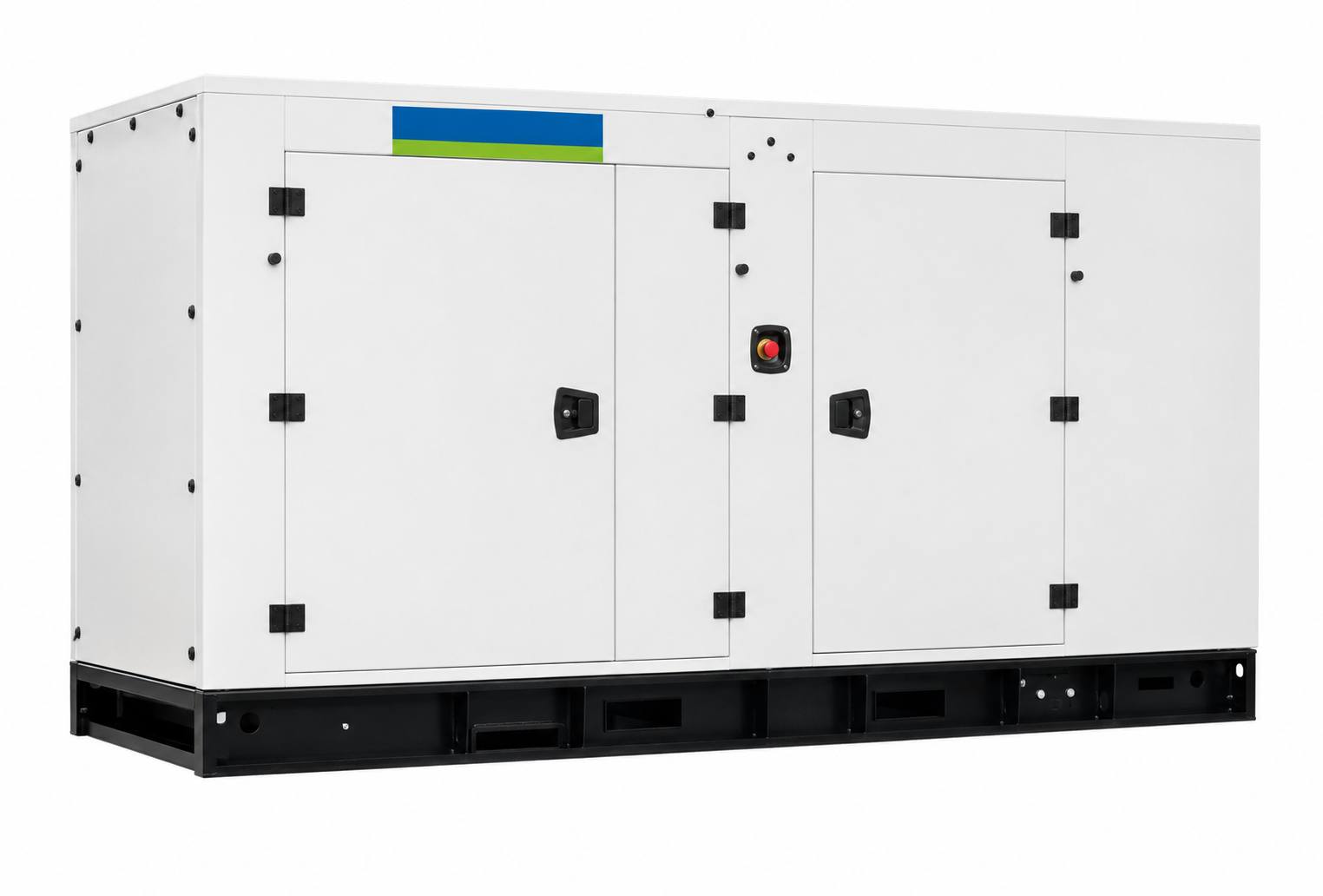

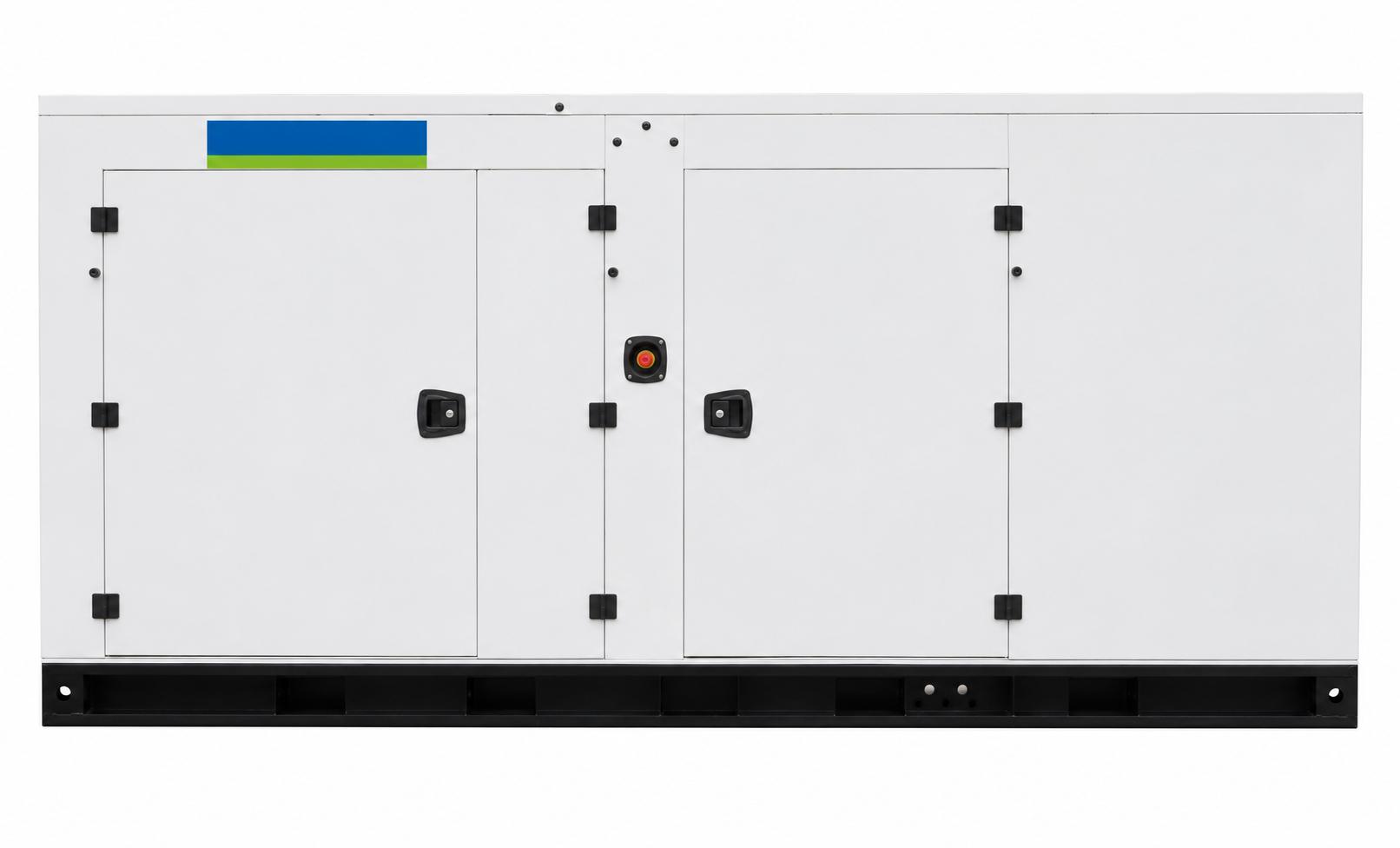

APD-ULJ275 product details and specifications:

General Characteristics

• Model Name: APD-ULJ275

• Engine Make: John Deere

• Engine Model: 6090HF484

• Alternator Make: Stamford

• Control Panel Make & Model: DSE 7320

• Frequency & Speed: 60Hz, 1800rpm

• Enclosure Make & Model: AKSA AUL 61/62

Genset Rating

• 480/277V — 275kW Standby, 0.8 PF, 413A Standby Current

• 240/120V — 275kW Standby, 0.8 PF, 827A Standby Current

• 208/120V — 275kW Standby, 0.8 PF, 954A Standby Current

• 600/347V — 275kW Standby, 0.8 PF, 331A Standby Current

Engine Data

• Manufacturer: John Deere

• Model: 6090HF484

• Displacement & Cylinders: 9 L / 6 Cylinders

• Engine Type: In-line, 4 Cycle

• Engine Speed: 1800rpm

• Engine Prime Power: 284kW

• Engine Standby Power: 315 kW

• Aspiration: Turbocharged & Air to Air Aftercooled

• Compression Ratio: 16.0 : 1

• Bore / Stroke: 118.4 mm / 136 mm

• Governor Type: Electronic

• Engine Crankcase Vent System: Open

• Fan Power: 25.3kW

• BMEP, Standby Power: 2333 kPa

• Friction Power: 24kW

• Designed / Calibrated to Meet: EPA Tier 3

Fuel System

• ECU Description: L14 Controller

• Max Fuel Inlet Temp.: 176 °F

• Total Fuel Flow: 450 lb/hr

Fuel Consumption

• Standby Power (100%): 19.61 gal/h

• Standby Power (75%): 16.95 gal/h

• Standby Power (50%): 12.01 gal/h

• Standby Power (25%): 6.21 gal/h

Electric System

• System Voltage: 12V / 24V

• Min Voltage at ECU during Crank: 6V for 12V system, 10V for 24V system

• Battery Qty, Rating: 2 x 120Ah

Cooling System

• Radiator Cooling System Type: Closed Circuit

• Radiator Ambient Temp: > 50 °C

• Coolant Capacity, Engine Only: 16.9 quart

• Max Top Tank Temp: 230 °F

• Thermostat, Start – Fully Open: 180–201 °F

Exhaust System

• Exhaust Temperature: 1180 °F

• Max Allowable Exhaust Restriction: 7.5 kPa

• Exhaust Gas Flow: 2084 ft³/min

Air Intake System

• Engine Air Flow: 901 ft³/min

• Max Intake Air Restriction (Clean Element): 3.75 kPa

• Air Filter Type: Dry Paper Element

Lubrication System

• Oil Pressure at Rated Speed: 260 kPa

• Oil Pressure at Low Idle: 190 kPa

• Max Oil Carryover in Blow-by: 0.007 lb/hr

• Max Crankcase Pressure: 0.5 kPa

Alternator Data

• Manufacturer: Stamford

• Standards: BS EN 60034

• Control System: PMG

• A.V.R.: MX341

• Voltage Regulation: ± 1 %

• Insulation System: Class H

• Protection: IP23

• Rated Power Factor: 0.8

• Stator Winding: Double Layer Concentric

• Winding Pitch: Two Thirds

• Winding Leads: 12

• Telephone Interference: THF < 2 %

• Waveform Distortion: No Load < 1.5 %

• Maximum Over Speed: 2250 rev/min

Controller Data

• Manufacturer: DSE

• Model: 7320 MK II

Controller Features & Benefits

• Microprocessor controlled, UL & NFPA110 Compatible

• License free PC Software (Non-proprietary Software)

• IP65 rating offers increased resistance to water ingress

• Modules can be integrated to building management systems

• Real time clock provides accurate event log

• Four line back-lit LCD text display

• Five key menu navigation, two wire start/stop at Auto mode

• Front panel editing with PIN protection

• Support up to three remote display modules

• Configurable timers and alarms

• Multiple date and timer scheduler

• Integral PLC editor

• 'Protections disabled' feature

• Load switching (load shedding and dummy load outputs)

• Fully configurable via DSE Configuration Suite PC Software

• SCADA monitoring via DSE Configuration Suite PC Software

Protection

• Gen. Voltage – under / over

• Gen. Freq. – under / over

• Engine Speed – under / over

• Engine Oil Pressure – low

• Engine Temp – low / high

• Battery Voltage – low / high

• Weak Battery

• Fail to Start / Stop

• Charge Alternator Fail

• Over Current & Load (kW/kVAr)

• Unbalanced Load

• Independent Earth Fault

• Reverse Power

• Loss of Speed Signal

Instruments

• Gen. Voltage (L-L/L-N)

• Gen. Frequency

• Engine Speed

• Oil Pressure

• Water Temperature

• Battery Voltage

• Run Time

• Phase Sequence

• Power monitoring (kWh/kVAh/kVArh)

• Power (kWh/kVAh/kVArh)

• Power Factor

• Generator Current

• Generator Load (%)

• Earth Current

Battery Charger & Electrical System Data

• Manufacturer: ComAp

• Model: InteliCharger

• Input Voltage: 85V ~ 264V AC

• Output Voltage / Current: 27.2V Float / 2.5A pk

Jacket Water Heater Data

• Manufacturer: Hotstart

• Model: CTM15210-N00

• Input Voltage: 24V

• Power: 1500W

Enclosure Features

• Heavy Duty Steel / Aluminum Structure

• E-Stop on Enclosure

• Control Panel Eliminated from Engine Vibrations

• Standard Sound Attenuation Foam

• Plastic Covered Corrosion Resistant Locks & Hinges

• Internally Mounted Exhaust System with Rain Cap

• Coolant Fill Cap

• Removable Base Frame Lifting Hooks

• Oil & Coolant Drain Ports

• Easy Access for Maintenance

Fuel Tank — UL142 Listed Base Design

• 24hr Tank: 530 gal, Dimensions 182 / 55.1 / 20 in (L/W/H), Weight 2200 lb

• 48hr Tank: 1120 gal, Dimensions 195 / 55.2 / 36 in (L/W/H), Weight 3160 lb

• 72hr Tank: 1600 gal, Dimensions 267 / 55 / 36 in (L/W/H), Weight 3600 lb

Standard Features & Accessories

• UL2200 Certification

• Heavy Duty Steel Base Frame

• PMG w/MX341 AVR

• Engine Jacket Water Heater

• Battery and Battery Rack

• Battery Charger

• Anti Vibration Pads between Engine/Alternator & Base Frame

• Critical Grade Silencer Inside Enclosure

• Residential Grade Silencer Set for Open Skid Sets

• Exhaust outlet rain cap and radiator fill cap

• Sound Absorb Foam Material for Enclosure

• Emergency Stop Button

• Oil Drain Valve

• Coolant Drain Valve

• Jacket Water Heater Isolation Valves

• Flex Fuel Lines

• Air Filter Restriction Gauge

• Engine Manifold Cover

• Turbocharger Cover

• Protection Covers for Rotating Parts

• Exhaust Insulation Cover

• Enclosure DC Light

• Operations Manual

• 24 Months / 2000 hours Limited Standby Warranty

Optional Accessories

• Main Line CB (3 / 4 Poles – 80% / 100% rated)

• Upsize Alternator

• Voltage Regulation ±0.5% w/MX321 AVR

• Anti-condensation Heater

• Sub Base Fuel Tank (UL142 / UL2085)

• Fuel Level Display & Alarm on Controller

• Low / High Fuel Alarms

• Fuel Water Separator Filter

• Auto Fuel Fill Control System

• Oil Temperature Display on Controller

• Manual Speed Adjust Rheostat

• Manual Voltage Adjust Rheostat

• Remote Annunciator Panel

• Remote Control & Monitoring Panel

• Advanced SMS Messaging

• Control Panel Heater

• Battery Disconnect Switch

• Battery Heater

• Battery Charger 10/20 Amp

• Shunt Trip / Aux Contacts

• Spring Anti-vibration Isolators

• Automatic Transfer Panel (ATS)

• 5 Years / 2000 hours Limited Comprehensive Warranty
