APD-ULJ250 product details and specifications:

General Characteristics

• Model Name: APD-ULJ250

• Engine Make: John Deere

• Engine Model: 6090HF484

• Alternator Make: Stamford

• Control Panel Make & Model: DSE 7320 MK II

• Frequency & Speed: 60Hz, 1800rpm

• Enclosure Make & Model: AKSA AUL 61/62

Genset Rating

• 480/277V - 250kW, 0.8 PF, 375A

• 240/120V - 250kW, 0.8 PF, 751A

• 208/120V - 250kW, 0.8 PF, 867A

• 600/347V - 244kW, 0.8 PF, 294A

Engine Data

• Manufacturer: John Deere

• Model: 6090HF484

• Displacement & Cylinders: 9 L / 6 Cylinders

• Engine Type: In-line, 4 Cycle

• Engine Speed: 1800rpm

• Engine Prime Power: 258kW

• Engine Standby Power: 287kW

• Aspiration: Turbocharged & Air to Air Aftercooled

• Compression Ratio: 16.0 : 1

• Bore / Stroke: 118.4 mm / 136 mm

• Governor Type: Electronic

• Engine Crankcase Vent System: Open

• Fan Power: 17.2 kW

• BMEP, Standby Power: 2126 kPa

• Friction Power: 24kW

• Designed / Calibrated to Meet: EPA Tier 3

Fuel System

• ECU Description: L14 Controller

• Max Fuel Inlet Temp.: 176 F

• Total Fuel Flow: 450 lb/hr

Fuel Consumption

• Standby Power (100%): 18.0 gal/h

• Standby Power (75%): 15.71 gal/h

• Standby Power (50%): 11.14 gal/h

• Standby Power (25%): 5.56 gal/h

Electric System

• System Voltage: 12V / 24V

• Min Voltage at ECU during Crank: 6V for 12V system / 10V for 24V system

• Battery Qty, Rating: 2 x 120Ah

Cooling System

• Radiator Cooling System Type: Closed Circuit

• Radiator Ambient Temp: > 50 C

• Coolant Capacity, Engine Only: 16.9 quart

• Max Top Tank Temp: 230 F

• Thermostat, Start - Fully Open: 180-201 F

Exhaust System

• Exhaust Temperature: 1157 F

• Max Allowable Exhaust Restriction: 7.5 kPa

• Exhaust Gas Flow: 1911 ft3/min

Air Intake System

• Engine Air Flow: 812 ft3/min

• Max Intake Air Restriction (Clean Element): 3.75 kPa

• Air Filter Type: Dry Paper Element

Lubrication System

• Oil Pressure at Rated Speed: 260 kPa

• Oil Pressure at Low Idle: 190 kPa

• Max Oil Carryover in Blow-by: 0.007 lb/hr

• Max Crankcase Pressure: 0.5 kPa

Alternator Data

• Manufacturer: Stamford

• Standards: BS EN 60034

• Control System: PMG

• A.V.R.: MX341

• Voltage Regulation: +/- 1%

• Insulation System: Class H

• Protection: IP23

• Rated Power Factor: 0.8

• Stator Winding: Double Layer Concentric

• Winding Pitch: Two Thirds

• Winding Leads: 12

• Telephone Interference: THF < 2%

• Waveform Distortion: No Load < 1.5%

• Maximum Over Speed: 2250 rev/min

Battery Charger & Electrical System Data

• Manufacturer: ComAp

• Model: InteliCharger

• Input Voltage: 85V ~ 264V AC

• Output Voltage / Current: 27.2V Float / 2.5A pk

Jacket Water Heater Data

• Manufacturer: Hotstart

• Model: CTM15210-N00

• Input Voltage: 240V

• Power: 1500W

Controller Data

• Manufacturer: DSE

• Model: 7320 MK II

Controller Features & Benefits

• Microprocessor controlled, UL & NFPA110 Compatible

• License free PC Software (Non-proprietary Software)

• IP65 rating offers increased resistance to water ingress

• Modules can be integrated to building management systems

• Real time clock provides accurate event log

• Four line back-lit LCD text display

• Five key menu navigation, two wire start/stop at Auto mode

• Front panel editing with PIN protection

• Support up to three remote display modules

• Configurable timers and alarms

• Multiple date and timer scheduler

• Integral PLC editor

• 'Protections disabled' feature

• Load switching (load shedding and dummy load outputs)

• Fully configurable via DSE Configuration Suite PC Software

• SCADA monitoring via DSE Configuration Suite PC Software

Protection

• Gen. Voltage - under / over

• Gen. Freq. - under / over

• Engine Speed - under / over

• Engine Oil Pressure - low

• Engine Temp - low / high

• Battery Voltage - low / high

• Weak Battery

• Fail to Start / Stop

• Charge Alternator Fail

• Over Current & Load (kW/kVAr)

• Unbalanced Load

• Independent Earth Fault

• Reverse Power

• Loss of Speed Signal

Instruments

• Gen. Voltage (L-L/L-N)

• Gen. Frequency

• Engine Speed

• Oil Pressure

• Water Temperature

• Battery Voltage

• Run Time

• Phase Sequence

• Power Monitoring (kWh/kVAh/kVArh)

• Power (kWh/kVAh/kVArh)

• Power Factor

• Generator Current

• Generator Load (%)

• Earth Current

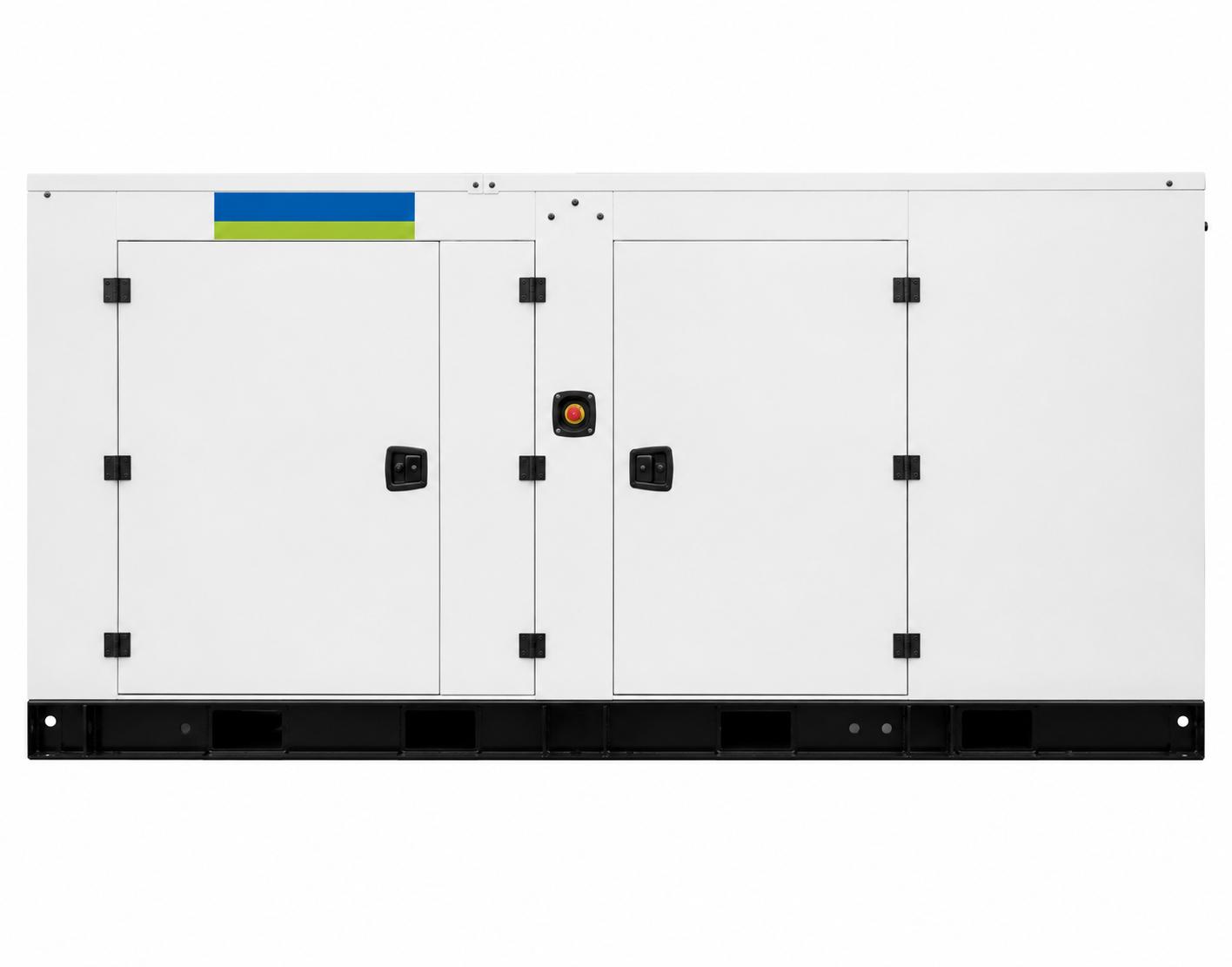

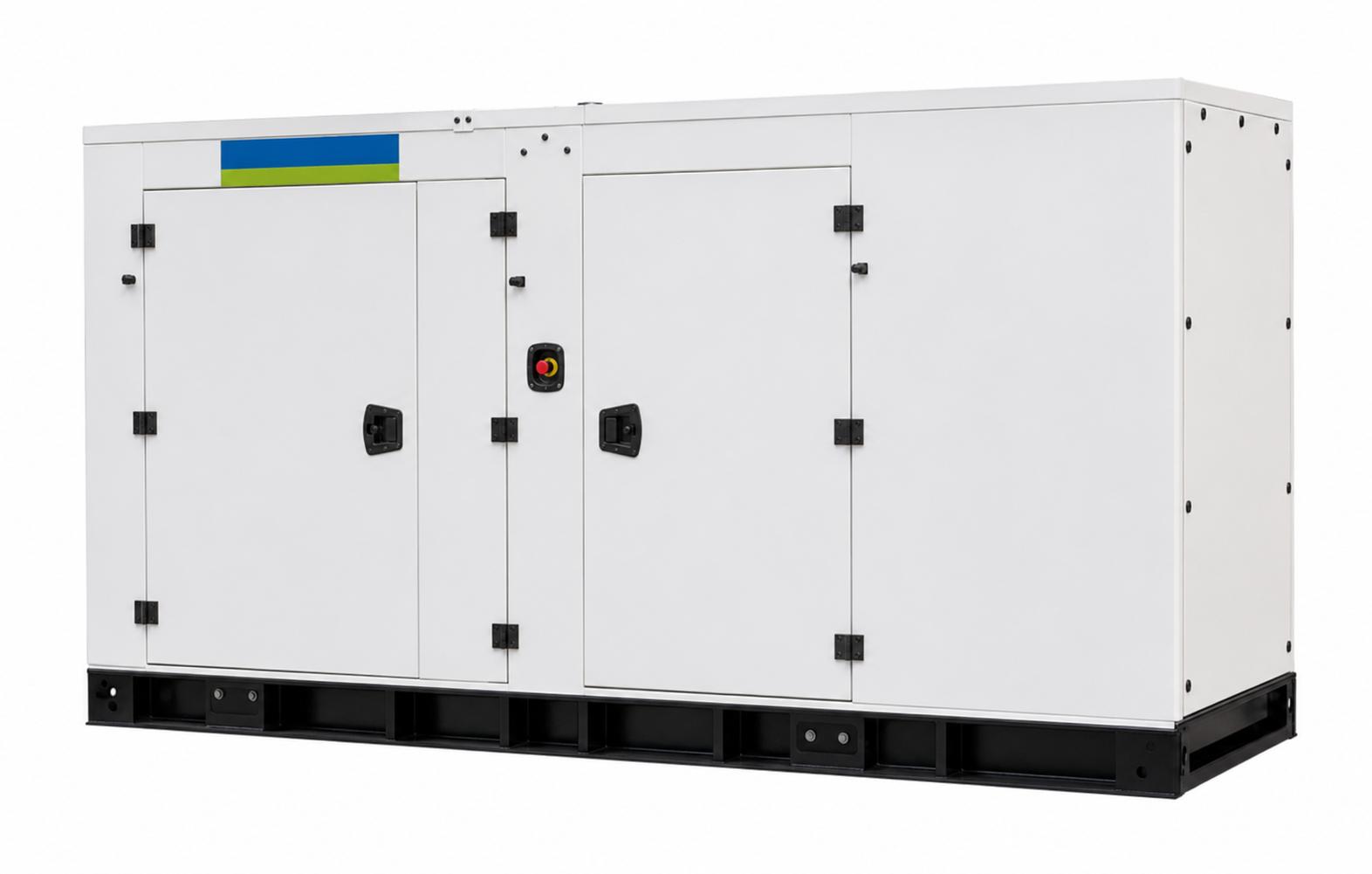

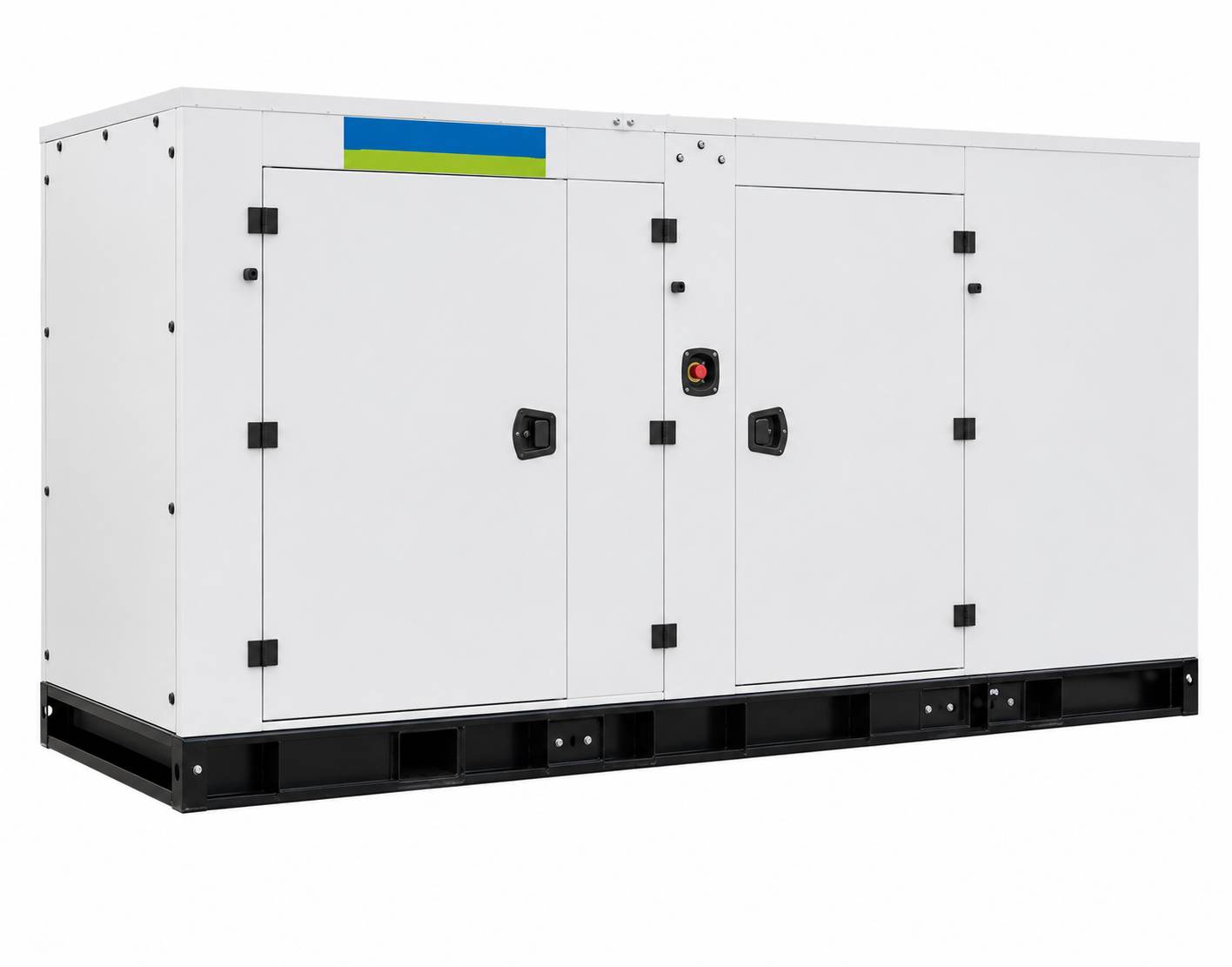

Enclosure Features

• Heavy Duty Steel / Aluminum Structure

• E-Stop on Enclosure

• Control Panel Eliminated from Engine Vibrations

• Standard Sound Attenuation Foam

• Plastic Covered Corrosion Resistant Locks & Hinges

• Internally Mounted Exhaust System with Rain Cap

• Coolant Fill Cap

• Removable Base Frame Lifting Hooks

• Oil & Coolant Drain Ports

• Easy Access for Maintenance

Open Skid Gen / Level 1 / Level 2 Enclosure Dimensions

• Open Skid Gen - Length: 126 in | Width w/o lift hooks: 55.1 in | Height: 63.1 in | Dry Weight: 5225 lbs.

• Level 1 Enclosure - Length: 161.7 in | Width w/o lift hooks: 57.6 in | Height: 79.8 in | Dry Weight: 7200 lbs. | Sound Pressure @ 7m: 78 dB(A)

• Level 2 Enclosure - Length: 161.7 in | Width w/o lift hooks: 57.6 in | Height: 101.6 in | Dry Weight: 8260 lbs. | Sound Pressure @ 7m: 73 dB(A)

Fuel Tank - UL142 Listed Base Design

• 24hr (425gal) - Dimensions (L/W/H): 182/55.1/16.5 in | Weight: 2100 lbs.

• 48hr (900gal) - Dimensions (L/W/H): 182/55.1/32 in | Weight: 2800 lbs.

• 72hr (1300gal) - Dimensions (L/W/H): 222/55.1/36 in | Weight: 3490 lbs.

Standard Features & Accessories

• UL2200 Certification

• Heavy Duty Steel Base Frame

• PMG w/MX341 AVR

• Engine Jacket Water Heater

• Battery and Battery Rack

• Battery Charger

• Anti Vibration Pads between Engine/Alternator & Base Frame

• Critical Grade Silencer Inside Enclosure

• Residential Grade Silencer Set for Open Skid Sets

• Exhaust outlet rain cap and radiator fill cap

• Sound Absorb Foam Material for Enclosure

• Emergency Stop Button

• Oil Drain Valve

• Coolant Drain Valve

• Jacket Water Heater Isolation Valves

• Flex Fuel Lines

• Air Filter Restriction Gauge

• Engine Manifold Cover

• Turbocharger Cover

• Protection Covers for Rotating Parts

• Exhaust Insulation Cover

• Enclosure DC Light

• Operations Manual

• 24 Months / 2000 hours Limited Standby Warranty

Optional Accessories

• Main Line CB (3 / 4 Poles - 80% / 100% rated)

• Upsize Alternator

• Voltage Regulation +/-0.5% w/MX321 AVR

• Anti-condensation Heater

• Sub Base Fuel Tank (UL142 / UL2085)

• Fuel Level Display & Alarm on Controller

• Low / High Fuel Alarms

• Fuel Water Separator Filter

• Auto Fuel Fill Control System

• Oil Temperature Display on Controller

• Manual Speed Adjust Rheostat

• Manual Voltage Adjust Rheostat

• Remote Annunciator Panel

• Remote Control & Monitoring Panel

• Advanced SMS Messaging

• Control Panel Heater

• Battery Disconnect Switch

• Battery Heater

• Battery Charger 10/20 Amp

• Shunt Trip / Aux Contacts

• Spring Anti-vibration Isolators

• Automatic Transfer Panel (ATS)

• 5 Years / 2000 hours Limited Comprehensive Warranty

Codes & Standards

• Designed and manufactured in a facility certified to ISO9001 standards

• Designed and manufactured in a facility certified to ISO14001:2015 standards

• AKSA Power Generation provides single source responsibility for the generator set & accessories

• Prototype tested and production tested according to the UL test program

• Meets NFPA70, 99, 110, 37 Level 1 when equipped with the necessary accessories and installed per NFPA standards
