APD-NG30 product details and specifications:

General Characteristics

• Model Name: APD-NG30

• Engine Make: PSI

• Engine Model: 2.4L

• Alternator Make: Stamford

• Control Panel Make & Model: DSE 7320 MK II

• Frequency & Speed: 60Hz, 1800rpm

• Enclosure Make & Model: AKSA AUL 31/32

• Certification: UL2200 NG/LP

Engine Data

• Manufacturer: PSI

• Model: 2.4L

• Displacement & Cylinders: 2.4L / 4 Cylinders

• Engine Type: In-Line, 4 Cycle

• Engine Speed: 1800rpm

• Engine Standby Power NG: 31.92 kW

• Engine Standby Power PG: 34.69 kW

• Aspiration: Naturally Aspired

• Compression Ratio: 9.5 : 1

• Bore / Stroke: 86.5 mm / 100 mm

• Governor Type: Electronic

Fuel System

• Fuel Type: NG, LP Gas / Dual Fuel

• Min NG Supply Pipe Size: 1-1/4" NPTF

• Min LPG Supply Pipe Size: 3/4"

• Maximum EPR Rated Pressure: 6.9 kPa / 1.0 psi

• Max Pressure to EPR: 2.7 kPA / 11.0 inH2O

• Min Pressure to EPR: 1.7 kPA / 7.0 inH2O

Fuel Consumption

• Standby Power (100%): 435 cfh NG / 180 cfh LP

• Standby Power (75%): 340 cfh NG / 140 cfh LP

• Standby Power (50%): 250 cfh NG / 150 cfh LP

Lubrication System

• Oil Specifications: SAE 5W-30 API Rating SM or Newer

• Oil Pan Capacity: 4.5 Qts

• Oil Filter: 1, Cartridge

• Max Allowable Oil Temp: 250°F

Cooling System

• Radiator Cooling System Type: Closed Circuit

• Heat Rejected to Cooling System: 1520 btu/min

• Cranking Temperature: 160°F

• Full Open Temperature: 185°F

Exhaust System

• Type: Air Cooled Manifold

• Max Allowable Back Pressure: 10.2 kPa

• Cont. Rating Catalyst Configuration: No Catalyst

• Exhaust Gas Flow at Rated Power @ 1350°F: 248.22 cfm

Air Intake System

• Combustion Air Required: 74.74 cfm

• Max Intake Air Restriction (Clean Element): 1.49 kPa / 3 inH2O

• Air Filter Type: Dry Paper Element

Electric System

• System Voltage (dc): 12V

• Battery Qty, Rating: 1 x 54Ah

Alternator Data

• Manufacturer: Stamford

• Standards: BS EN 60034

• Control System: EBS

• A.V.R.: AS480

• Voltage Regulation: ± 1%

• Insulation System: Class H

• Protection: IP23

• Rated Power Factor: 0.8

• Stator Winding: Double Layer Concentric

• Winding Pitch: Two Thirds

• Winding Leads: 12

• Telephone Interference: THF < 2%

• Waveform Distortion: No Load < 1.5%

• Maximum Overspeed: 2250 rev/min

Controller Data

• Manufacturer: DSE

• Model: 7320 MK II

• Microprocessor controlled, UL & NFPA110 Compatible

• License free PC Software (Non-proprietary Software)

• IP65 rating offers increased resistance to water ingress

• Modules can be integrated to building management systems

• Real time clock provides accurate event log

• Four line back-lit LCD text display

• Five key menu navigation, two wire start/stop at Auto mode

• Front panel editing with PIN protection

• Support up to three remote display modules

• Configurable timers and alarms

• Multiple date and timer scheduler

• Integral PLC editor

• Load switching (load shedding and dummy load outputs)

• Fully configurable via DSE Configuration Suite PC Software

• SCADA monitoring via DSE Configuration Suite PC Software

Protection & Instruments

• Gen. Voltage / Frequency – under / over protection

• Engine Speed – under / over protection

• Engine Oil Pressure – low

• Engine Temp – low / high

• Battery Voltage – low / high, Weak Battery

• Fail to Start / Stop, Charge Alternator Fail

• Over Current & Load (kW/kVAr), Unbalanced Load

• Independent Earth Fault, Reverse Power, Loss of Speed Signal

• Instruments: Gen. Voltage (L-L/L-N), Gen. Frequency, Engine Speed, Oil Pressure

• Instruments: Water Temperature, Battery Voltage, Run Time, Phase Sequence

• Instruments: Power monitoring (kWh/kVAh/kVArh), Power Factor, Generator Current, Load (%), Earth Current

Battery Charger & Electrical System Data

• Manufacturer: ComAp

• Model: InteliCharger

• Input Voltage: 85V ~ 264V AC

• Output Voltage / Current: 13.8V Float / 4A pk

Jacket Water Heater Data

• Manufacturer: Hotstart

• Model: TPS101GT10-000

• Input Voltage: 120V

• Power: 1000W

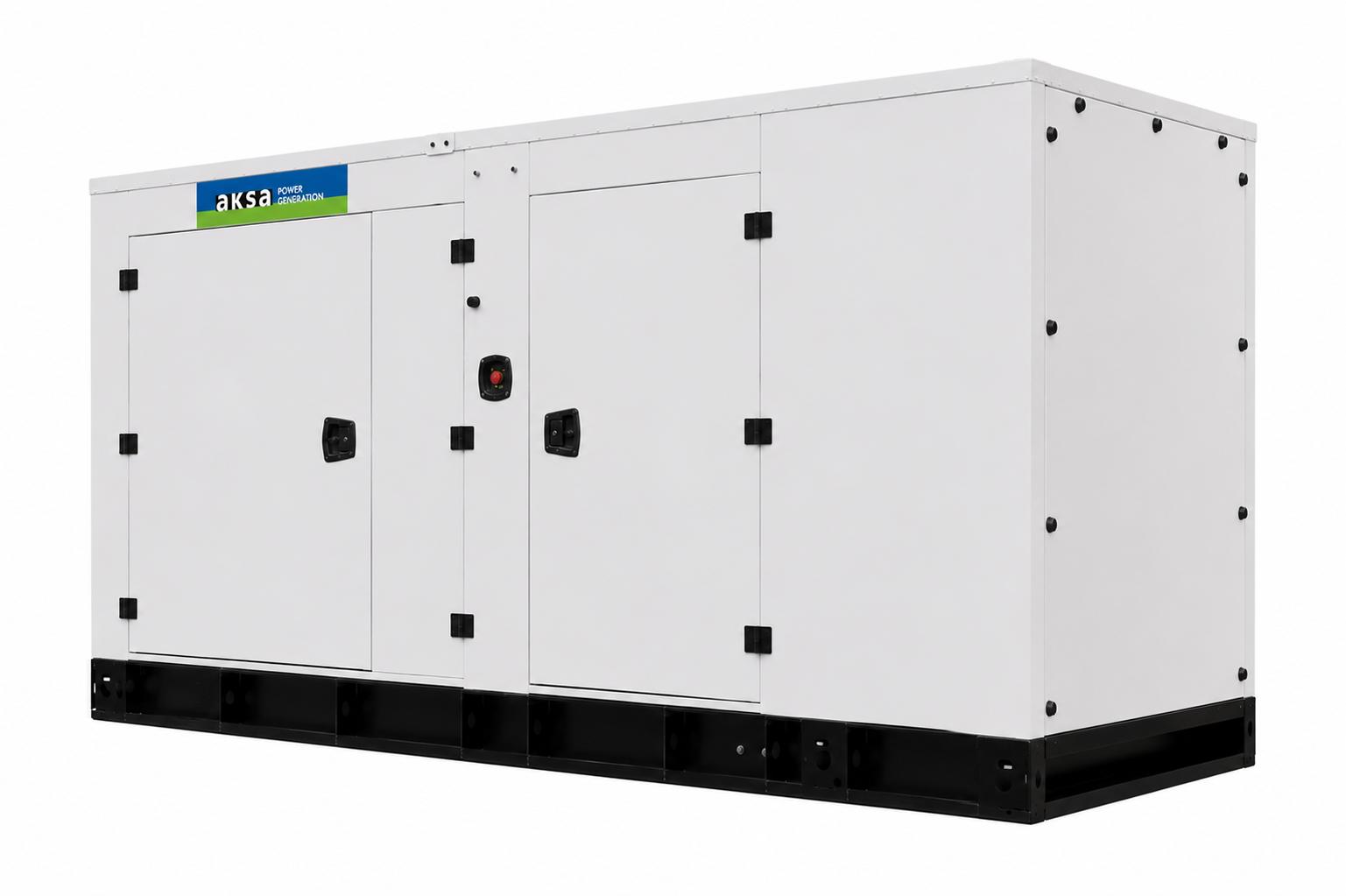

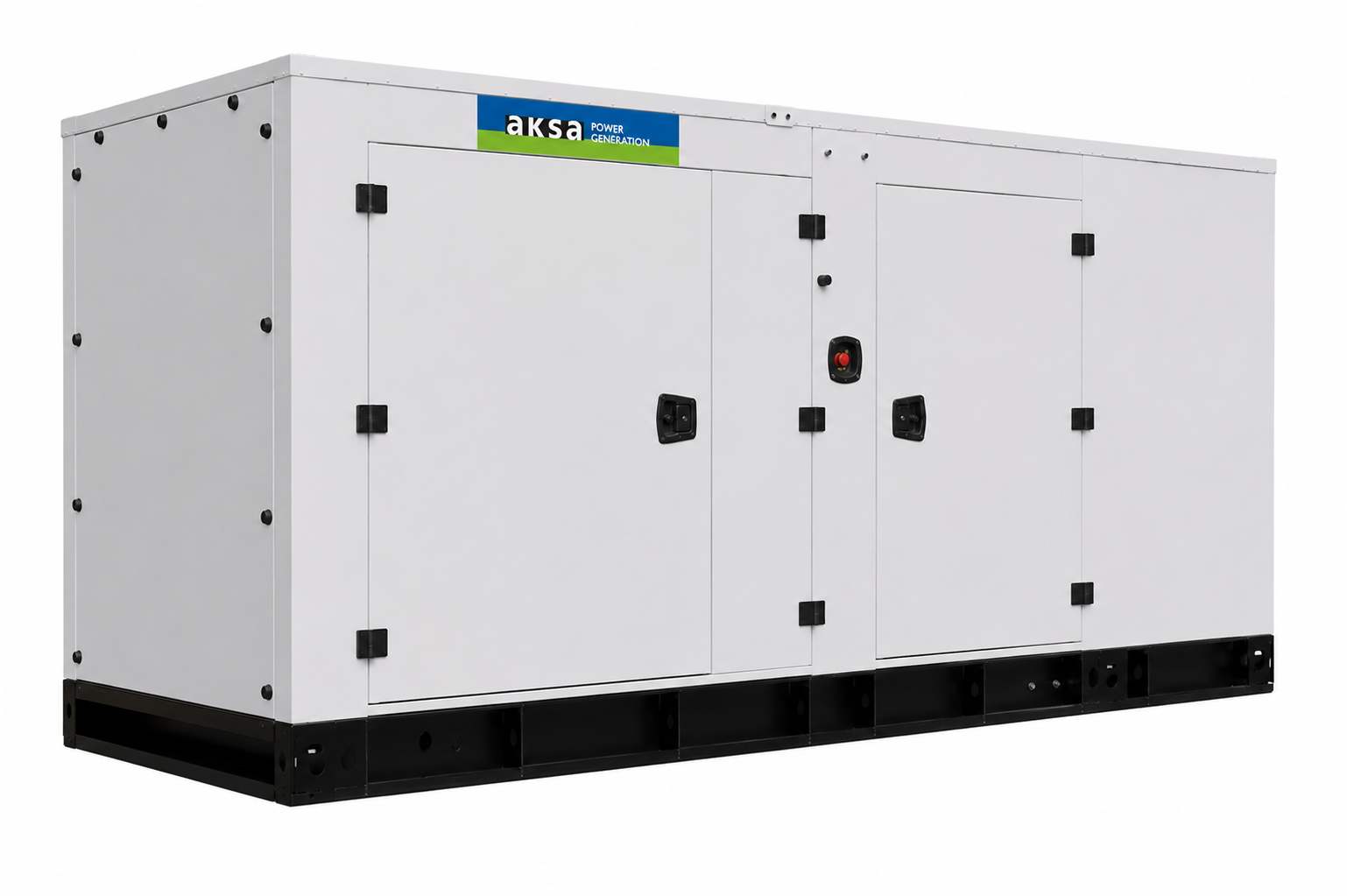

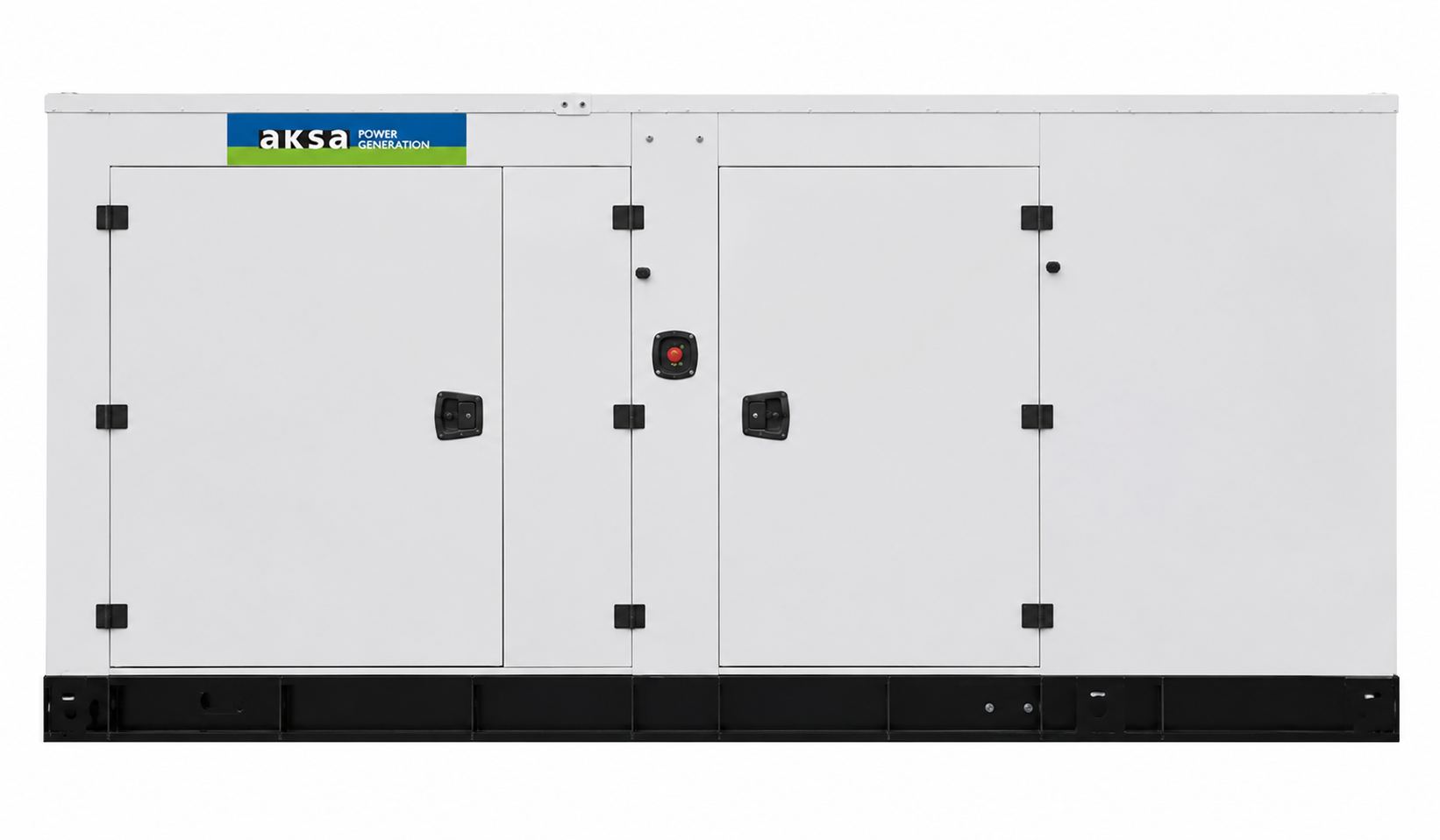

Enclosure Features

• Heavy Duty Steel / Aluminum Structure

• E-Stop on Enclosure

• Control Panel Eliminated from Engine Vibrations

• Standard Sound Attenuation Foam

• Plastic Covered Corrosion Resistant Locks & Hinges

• Internally Mounted Exhaust System with Rain Cap

• Coolant Fill Cap

• Removable Base Frame Lifting Hooks

• Oil & Coolant Drain Ports

• Easy Access for Maintenance

Dimensions

• Open Skid: 72 in (L) x 39 in (W) x 38 in (H), Dry Weight 1,300 lbs.

• Enclosed Level 1: 89 in (L) x 39 in (W) x 56 in (H), Dry Weight 2,000 lbs., Sound Pressure @ 7m 68 dBA

• Enclosed Level 2: 89 in (L) x 39 in (W) x 69 in (H), Dry Weight 2,300 lbs., Sound Pressure @ 7m 64 dBA

Standard Features & Accessories

• UL2200 Certification

• Heavy Duty Steel Base Frame

• EBS

• Engine Jacket Water Heater

• Battery and Battery Rack

• Battery Charger

• Anti Vibration Pads between Engine/Alternator & Base Frame

• Critical Grade Silencer Inside Enclosure

• Residential Grade Silencer Set for Open Skid Sets

• Exhaust outlet rain cap and radiator fill cap

• Sound Absorb Foam Material for Enclosure

• Emergency Stop Button

• Oil Drain Valve

• Coolant Drain Valve

• Jacket Water Heater Isolation Valves

• Flex Fuel Lines

• Secondary Lock-off Valve on Baseframe

• Engine Manifold Cover

• Turbocharger Cover

• Protection Covers for Rotating Parts

• Exhaust Insulation Cover

• Enclosure DC Light

• Operations Manual

• 24 Months / 2000 hours Limited Standby Warranty

Optional Accessories

• Main Line CB (3 / 4 Poles – 80% / 100% rated)

• Upsize Alternator

• Anti-condensation Heater

• PMG w/upsize alternator

• Gas Regulator

• NG / LP Auto Changeover Control System

• Low Gas Pressure Alarm

• Low Coolant Level Alarm

• Oil Pan Heater

• Oil Temperature Display on Controller

• Manual Speed Adjust Rheostat

• Manual Voltage Adjust Rheostat

• Remote Annunciator Panel

• Remote Control & Monitoring Panel

• Advanced SMS Messaging

• Control Panel Heater

• Battery Disconnect Switch

• Battery Heater

• Battery Charger 10/20 Amp

• Shunt Trip / Aux Contacts

• Spring Anti-vibration Isolators

• Automatic Transfer Panel (ATS)

• 5 Years / 2000 hours Limited Comprehensive Warranty

Codes & Standards

• Designed and manufactured in a facility certified to ISO9001 standards

• Designed and manufactured in a facility certified to ISO14001:2015 standards

• AKSA Power Generation provides single source responsibility for the generator set & accessories

• Prototype tested and production tested according to the UL test program

• Meets NFPA70, 99, 110, 37 Level 1 when equipped with necessary accessories and installed per NFPA standards (engine must be equipped with a fast start kit for NFPA110 Level 1 applications)
