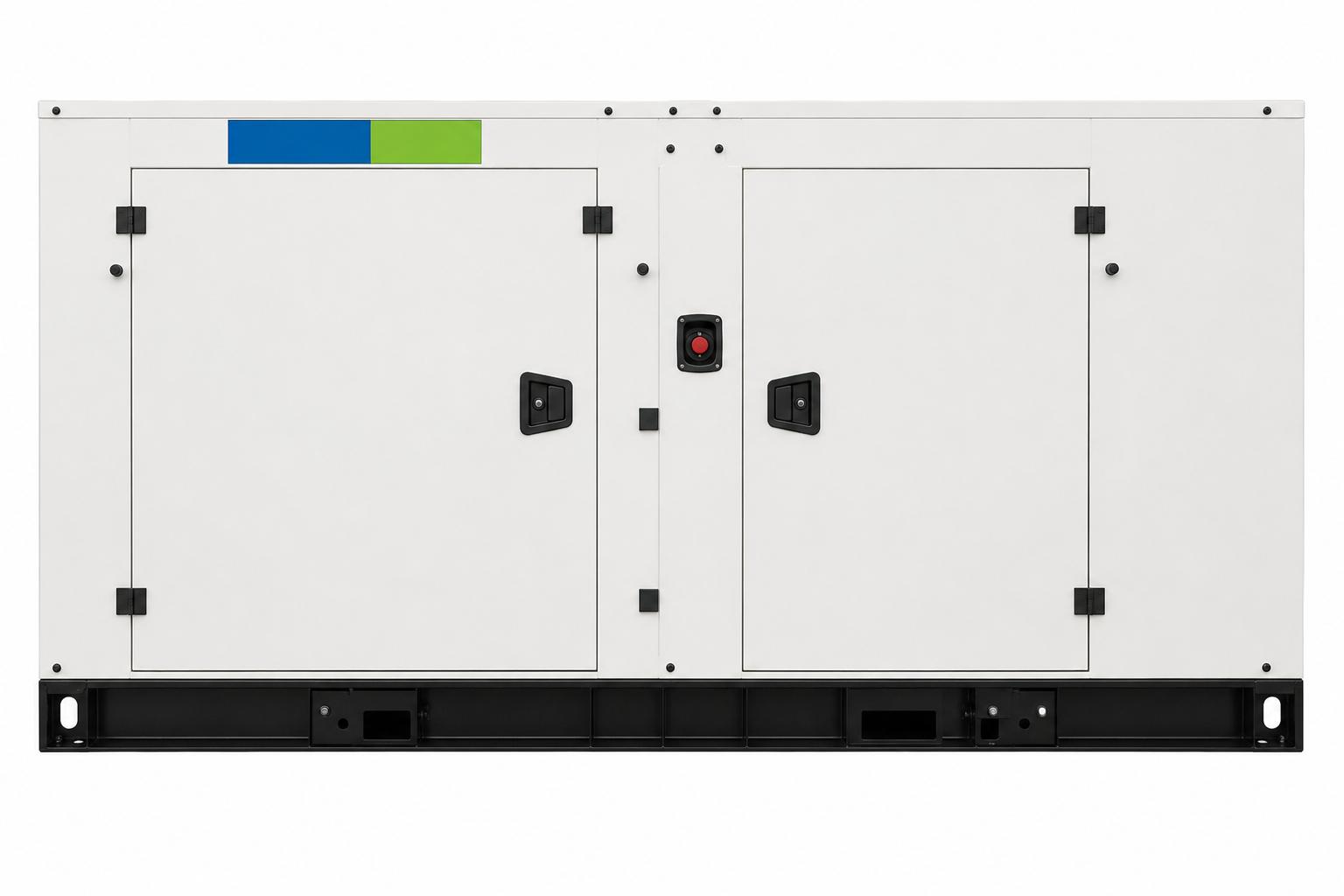

APD-ULJ180 Details & Specifications:

General Characteristics

• Model Name: APD-ULJ180

• Engine Make: John Deere

• Engine Model: 6068HFG82

• Alternator Make: Stamford

• Control Panel Make & Model: DSE 7320

• Frequency & Speed: 60Hz, 1800rpm

• Enclosure Make & Model: AKSA AUL 51/52

Genset Rating

• 480/277V — 180kW standby, 0.8 PF, 270A

• 240/120V — 164kW standby, 0.8 PF, 493A

• 208/120V — 164kW standby, 0.8 PF, 569A

• 600/347V — 180kW standby, 0.8 PF, 216A

• 240/120V (UCI274H) — 180kW standby, 0.8 PF, 541.3A

Engine Data

• Manufacturer: John Deere

• Model: 6068HFG82

• Displacement & Cylinders: 6.8 L / 6 Cylinders

• Engine Type: In-line, 4 Cycle

• Engine Speed: 1800rpm

• Engine Prime Power: 194kW

• Engine Standby Power: 212kW

• Aspiration: Turbocharged & Air to Air Aftercooled

• Compression Ratio: 19.0 : 1

• Bore / Stroke: 106 mm / 127 mm

• Governor Type: Electronic

• Engine Crankcase Vent System: Open

• Fan Power: 26.5 kW

• BMEP, Prime Power: 2084 kPa

• Ratio, Air : Fuel: 23.1 : 1

• Designed / Calibrated to Meet: EPA Tier 3

Fuel System

• ECU Description: L16 Controller

• Max Fuel Inlet Temp.: 176 °F

• Total Fuel Flow: 96.1 lb/hr

Fuel Consumption

• Standby Power (100%): 13.53 gal/h

• Standby Power (75%): 11.08 gal/h

• Standby Power (50%): 7.70 gal/h

• Standby Power (25%): 4.30 gal/h

Electric System

• System Voltage: 12V

• Min Voltage at ECU during crank: 6V

• Battery Qty, Rating: 1 x 80Ah

Cooling System

• Radiator Cooling System Type: Closed Circuit

• Radiator Ambient Temp: > 50 °C

• Coolant Capacity, Engine Only: 12.6 quart

• Max Top Tank Temp: 230 °F

• Thermostat, Start – Fully Open: 180–203 °F

Exhaust System

• Exhaust Temperature: 961 °F

• Max Allowable Exhaust Restriction: 7.5 kPa

• Exhaust Gas Flow: 1056 ft³/min

Air Intake System

• Air Mass Flow: 2324 lb/hr

• Max Intake Air Restriction (Clean Element): 3.75 kPa

• Air Filter Type: Dry Paper Element

Lubrication System

• Oil Pressure at Rated Speed: 308 kPa

• Oil Pressure at Low Idle: 105 kPa

• Max Oil Carryover in Blow-by: 0.002 lb/hr

• Max Crankcase Pressure: 0.5 kPa

Alternator Data

• Manufacturer: Stamford

• Standards: BS EN 60034

• Control System: PMG

• A.V.R.: MX341

• Voltage Regulation: ± 1 %

• Insulation System: Class H

• Protection: IP23

• Rated Power Factor: 0.8

• Stator Winding: Double Layer Concentric

• Winding Pitch: Two Thirds

• Winding Leads: 12

• Telephone Interference: THF < 2 %

• Waveform Distortion: No Load < 1.5 %

• Maximum Over Speed: 2250 rev/min

Controller Data

• Manufacturer: DSE

• Model: 7320 MK II

• Microprocessor controlled, UL & NFPA110 Compatible

• License free PC Software (Non-proprietary Software)

• IP65 rating offers increased resistance to water ingress

• Modules can be integrated to building management systems

• Real time clock provides accurate event log

• Four line back-lit LCD text display

• Five key menu navigation, two wire start/stop at Auto mode

• Front panel editing with PIN protection

• Support up to three remote display modules

• Configurable timers and alarms

• Multiple date and timer scheduler

• Integral PLC editor

• 'Protections disabled' feature

• Load switching (load shedding and dummy load outputs)

• Fully configurable via DSE Configuration Suite PC Software

• SCADA monitoring via DSE Configuration Suite PC Software

Protection & Instruments

• Gen. Voltage – under / over

• Gen. Frequency – under / over

• Engine Speed – under / over

• Engine Oil Pressure – low

• Engine Temp – low / high

• Battery Voltage – low / high

• Weak Battery

• Fail to Start / Stop

• Charge Alternator Fail

• Over Current & Load (kW/kVAr)

• Unbalanced Load

• Independent Earth Fault

• Reverse Power

• Loss of Speed Signal

• Gen. Voltage (L-L/L-N), Frequency, Engine Speed, Oil Pressure, Water Temperature

• Battery Voltage, Run Time, Phase Sequence, Power Monitoring (kWh/kVAh/kVArh)

• Power (kWh/kVAh/kVArh), Power Factor, Generator Current, Generator Load (%), Earth Current

Battery Charger & Electrical System Data

• Manufacturer: ComAp

• Model: InteliCharger

• Input Voltage: 85V ~ 264V AC

• Output Voltage / Current: 13.8V Float / 4A pk

Jacket Water Heater Data

• Manufacturer: Hotstart

• Model: TPS151GT10-000

• Input Voltage: 120V

• Power: 1500W

Enclosure Features

• Heavy Duty Steel / Aluminum Structure

• E-Stop on Enclosure

• Control Panel Eliminated from Engine Vibrations

• Standard Sound Attenuation Foam

• Plastic Covered Corrosion Resistant Locks & Hinges

• Internally Mounted Exhaust System with Rain Cap

• Coolant Fill Cap

• Removable Base Frame Lifting Hooks

• Oil & Coolant Drain Ports

• Easy Access for Maintenance

Enclosure Dimensions & Weight

• Open Skid Gen: 115.7 in L x 43.3 in W x 54.7 in H, 4095 lb dry weight

• Level 1 Enclosure: 146 in L x 45.8 in W x 66.4 in H, 5615 lb dry weight, 75 dB(A) @ 7m

• Level 2 Enclosure: 146 in L x 45.8 in W x 82.2 in H, 5990 lb dry weight, 70 dB(A) @ 7m

Fuel Tank - UL142 Listed Base Design

• 24hr (330gal): 160 x 43.3 x 20 in, 1700 lb

• 48hr (710gal): 168 x 43.3 x 36 in, 2500 lb

• 72hr (1000gal): 228 x 43 x 36 in, 3130 lb

Standard Features & Accessories

• UL2200 Certification

• Heavy Duty Steel Base Frame

• PMG w/MX341 AVR

• Engine Jacket Water Heater

• Battery and Battery Rack

• Battery Charger

• Anti Vibration Pads between Engine/Alternator & Base Frame

• Critical Grade Silencer Inside Enclosure

• Residential Grade Silencer Set for Open Skid Sets

• Exhaust outlet rain cap and radiator fill cap

• Sound Absorb Foam Material for Enclosure

• Emergency Stop Button

• Oil Drain Valve

• Coolant Drain Valve

• Jacket Water Heater Isolation Valves

• Flex Fuel Lines

• Air Filter Restriction Gauge

• Engine Manifold Cover

• Turbocharger Cover

• Protection Covers for Rotating Parts

• Exhaust Insulation Cover

• Enclosure DC Light

• Operations Manual

• 24 Months / 2000 hours Limited Standby Warranty

Optional Accessories

• Main Line CB (3 / 4 Poles – 80% / 100% rated)

• Upsize Alternator

• Voltage Regulation ±0.5% w/MX321 AVR

• Anti-condensation Heater

• Sub Base Fuel Tank (UL142 / UL2085)

• Fuel Level Display & Alarm on Controller

• Low / High Fuel Alarms

• Fuel Water Separator Filter

• Auto Fuel Fill Control System

• Oil Temperature Display on Controller

• Manual Speed Adjust Rheostat

• Manual Voltage Adjust Rheostat

• Remote Annunciator Panel

• Remote Control & Monitoring Panel

• Advanced SMS Messaging

• Control Panel Heater

• Battery Disconnect Switch

• Battery Heater

• Battery Charger 10/20 Amp

• Shunt Trip / Aux Contacts

• Spring Anti-vibration Isolators

• Automatic Transfer Panel (ATS)

• 5 Years / 2000 hours Limited Comprehensive Warranty

Codes & Standards

• Designed and manufactured in a facility certified to ISO9001 standards

• Designed and manufactured in a facility certified to ISO14001:2015 standards

• AKSA Power Generation provides single source responsibility for the generator set & accessories

• Prototype tested and production tested according to the UL test program

• Meets NFPA70, 99, 110, 37 Level 1 when equipped with the necessary accessories and installed per NFPA standards
