APD-ULJ125 product details and specifications:

General Characteristics

• Model Name: APD-ULJ125

• Engine Make: John Deere

• Engine Model: 4045HF285

• Alternator Make: Stamford

• Control Panel Make & Model: DSE 7320

• Frequency & Speed: 60Hz, 1800 rpm

• Enclosure Make & Model: AKSA AUL 51/52

Genset Rating

• UCI274E (Wnd-311), 480/277V: 125kW standby, 0.8 PF, 188A

• UCI274E (Wnd-06), 240/120V 1ph: 115kW standby, 1.0 PF, 479A

• UCI274E (Wnd-311), 208/120V: 125kW standby, 0.8 PF, 434A

• UCI274E (Wnd-17), 600/347V: 125kW standby, 0.8 PF, 150A

• UCI274E (Wnd-311), 240/120V: 125kW standby, 0.8 PF, 375.9A

• EPA Certified for Emergency Stationary Applications

Engine Data

• Manufacturer: John Deere

• Model: 4045HF485

• Displacement & Cylinders: 4.5 L / 4 Cylinders

• Engine Type: In-line, 4 Cycle

• Engine Speed: 1800 rpm

• Engine Prime Power: 134kW

• Engine Standby Power: 147kW

• Aspiration: Turbocharged

• Compression Ratio: 19.0 : 1

• Bore / Stroke: 4.17 in / 5.00 in (106 mm / 127 mm)

• Governor Type: Electronic

• Engine Crankcase Vent System: Open

• Fan Power: 6.5 kW

• BMEP, Standby Power: 2178 kPa

• Friction Power: 13kW

• Designed / Calibrated to Meet: EPA Tier 3

Fuel System

• ECU Description: L16 Controller

• Max Fuel Inlet Temp.: 176°F

• Total Fuel Flow: 169 lb/hr

Fuel Consumption

• Standby Power (100%): 9.85 gal/h

• Standby Power (75%): 7.63 gal/h

• Standby Power (50%): 5.56 gal/h

• Standby Power (25%): 3.01 gal/h

Electric System

• System Voltage: 12V

• Min Voltage at ECU during Crank: 6V

• Battery Qty, Rating: 1 x 80Ah

Cooling System

• Radiator Cooling System Type: Closed Circuit

• Radiator Ambient Temp: > 50°C

• Coolant Capacity, Engine Only: 9 quart

• Max Top Tank Temp: 230°F

• Thermostat, Start – Fully Open: 180–203°F

Exhaust & Air Intake System

• Exhaust Temperature: 1076°F

• Max Allowable Exhaust Restriction: 7.5 kPa

• Exhaust Gas Flow: 953 ft³/min

• Engine Air Flow: 341 ft³/min

• Max Intake Air Restriction (Clean Element): 3.75 kPa

• Air Filter Type: Dry Paper Element

Lubrication System

• Oil Pressure at Rated Speed: 320 kPa

• Oil Pressure at Low Idle: 105 kPa

• Max Oil Carryover in Blow-by: 0.002 lb/hr

• Max Crankcase Pressure: 0.5 kPa

Alternator Data

• Manufacturer: Stamford

• Standards: BS EN 60034

• Control System: PMG

• A.V.R.: MX341

• Voltage Regulation: ± 1%

• Insulation System: Class H

• Protection: IP23

• Rated Power Factor: 0.8

• Stator Winding: Double Layer Concentric

• Winding Pitch: Two Thirds

• Winding Leads: 12

• Telephone Interference: THF < 2%

• Waveform Distortion: No Load < 1.5%

• Maximum Overspeed: 2250 rev/min

Controller Data

• Manufacturer: DSE

• Model: 7320 MK II

• Microprocessor controlled, UL & NFPA110 compatible

• License-free PC software (non-proprietary)

• IP65-rated modules for increased water ingress resistance

• Real-time clock with accurate event log

• Four-line back-lit LCD text display

• Five-key menu navigation, two-wire start/stop at Auto mode

• Front panel editing with PIN protection

• Supports up to three remote display modules

• Configurable timers, alarms, and multiple date/timer scheduler

• Integral PLC editor and 'Protections Disabled' feature

• Load switching (load shedding and dummy load outputs)

• Fully configurable via DSE Configuration Suite PC Software with SCADA monitoring

Battery Charger & Electrical System Data

• Manufacturer: ComAp

• Model: InteliCharger

• Input Voltage: 85V ~ 264V AC

• Output Voltage / Current: 13.8V Float / 4A pk

Jacket Water Heater Data

• Manufacturer: Hotstart

• Model: TPS101GT10-000

• Input Voltage: 120V

• Power: 1000W

Protection & Instruments

• Generator voltage, frequency, and engine speed under/over protection

• Engine oil pressure and temperature protection

• Battery voltage low/high and weak battery detection

• Fail to start/stop, charge alternator fail, and loss of speed signal protection

• Over current & load, unbalanced load, independent earth fault, and reverse power protection

• Instrumentation for voltage, frequency, current, power (kW/kVA/kVAr), power factor, and run time

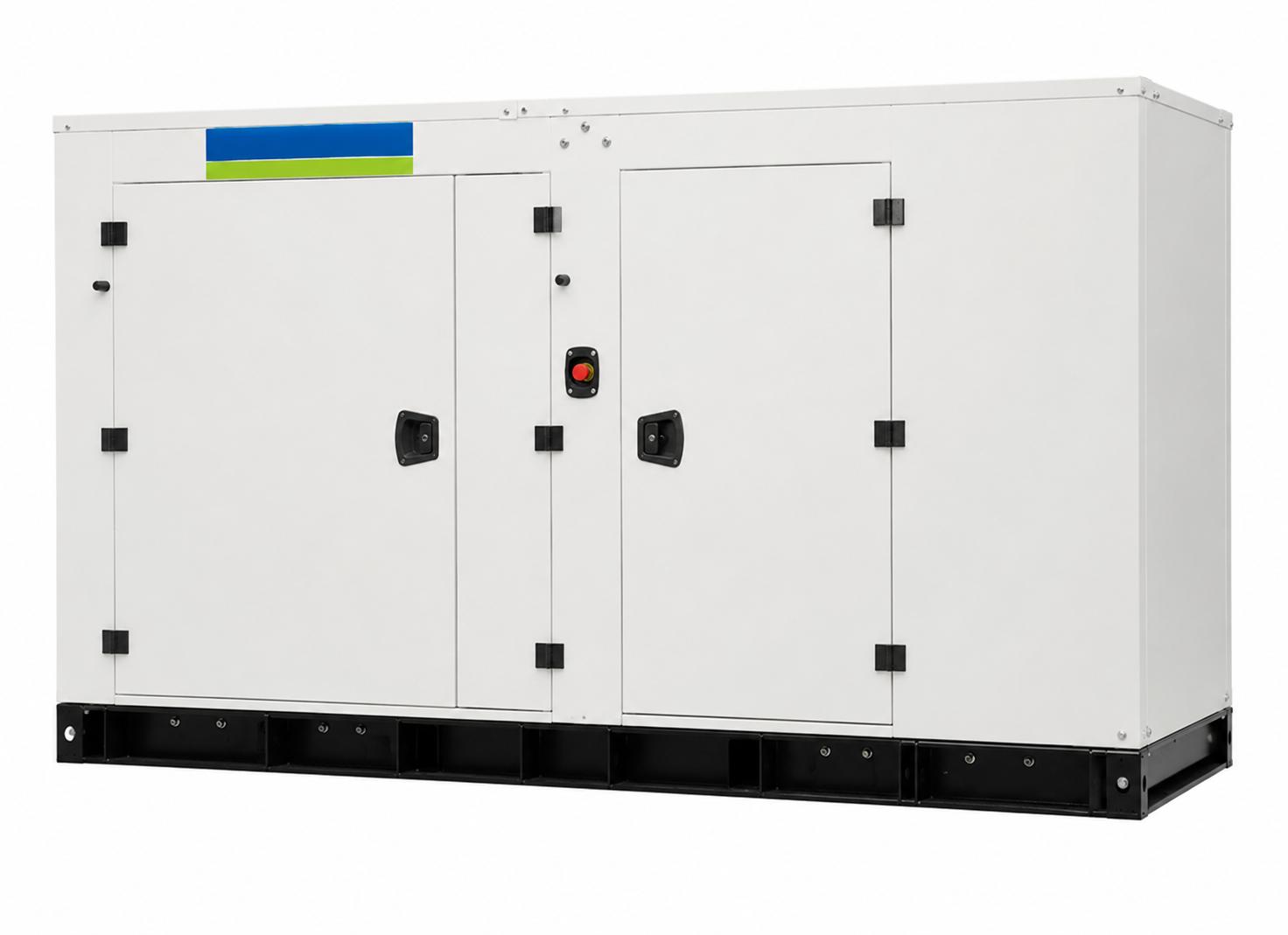

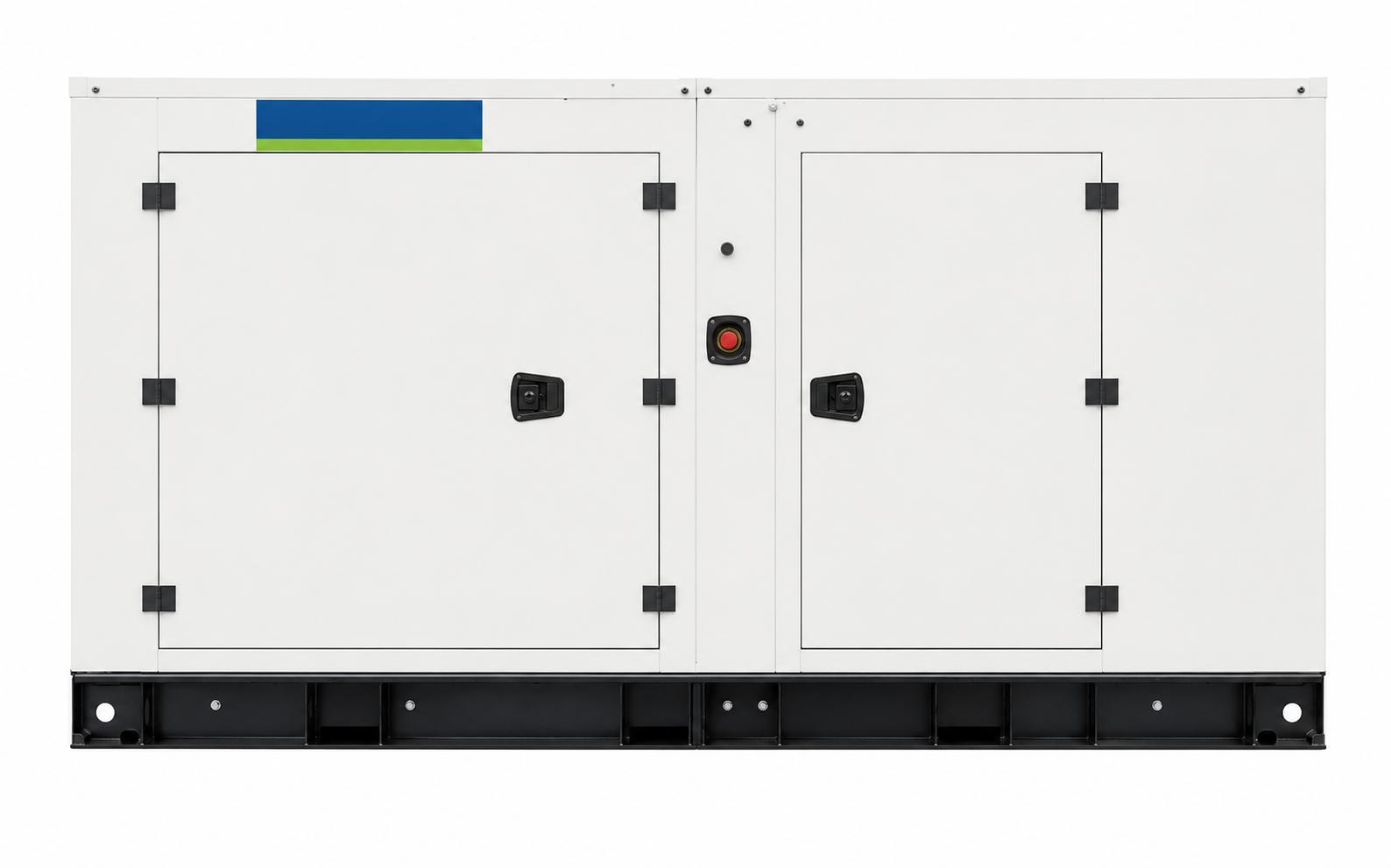

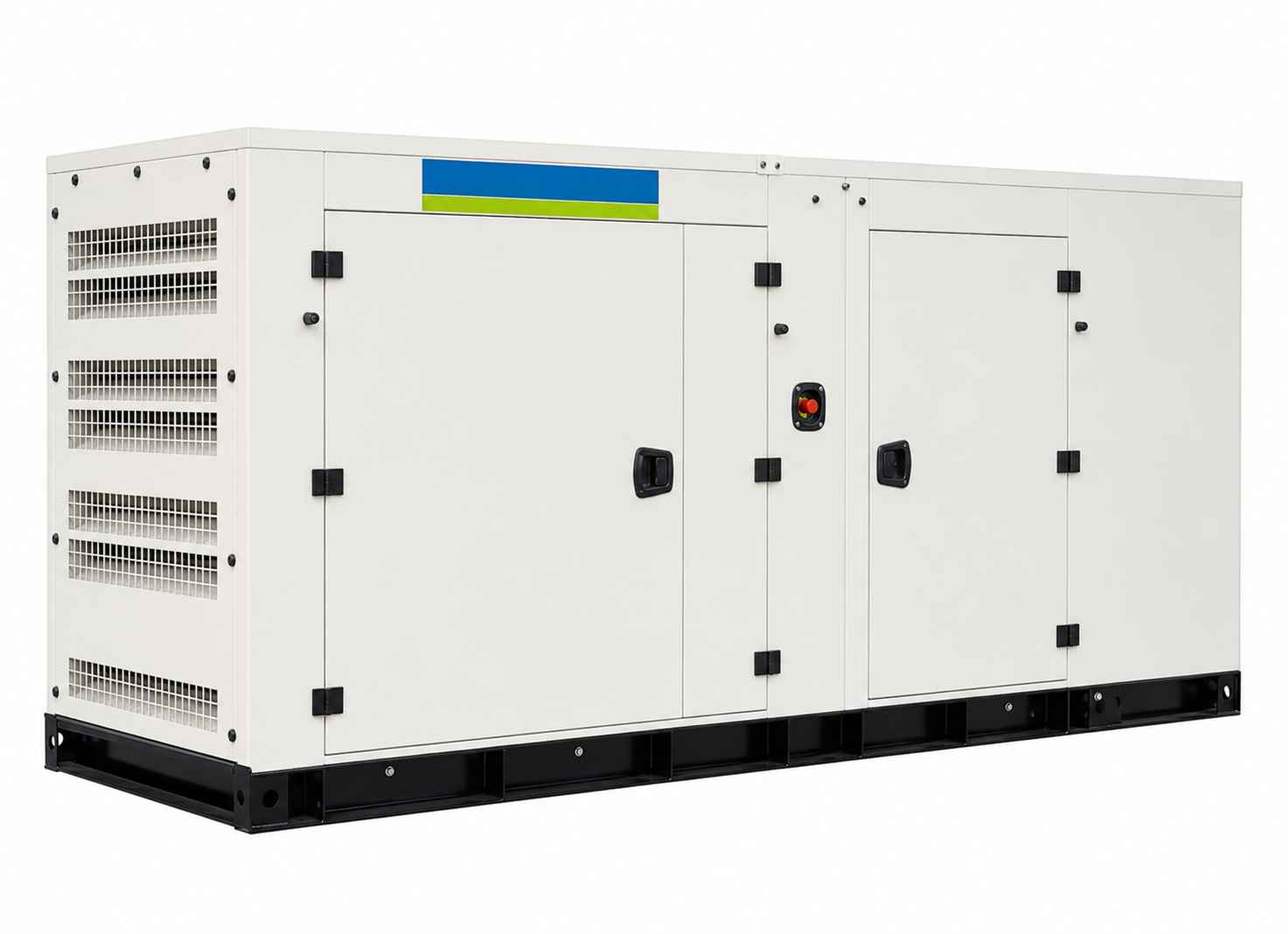

Enclosure Features

• Heavy Duty Steel / Aluminum Structure

• E-Stop on Enclosure

• Control Panel Eliminated from Engine Vibrations

• Standard Sound Attenuation Foam

• Plastic Covered Corrosion Resistant Locks & Hinges

• Internally Mounted Exhaust System with Rain Cap

• Coolant Fill Cap

• Removable Base Frame Lifting Hooks

• Oil & Coolant Drain Ports

• Easy Access for Maintenance

Enclosure Dimensions & Weight

• Open Skid Gen: 115.7 in L x 43.3 in W x 53.5 in H, 3765 lb dry weight

• Level 1 Enclosure: 146 in L x 45.8 in W x 66.4 in H, 5285 lb dry weight, 70 dB(A) @ 7m

• Level 2 Enclosure: 146 in L x 45.8 in W x 82.2 in H, 5660 lb dry weight, 67 dB(A) @ 7m

Fuel Tank – UL142 Listed Base Design

• 24hr (275 gal): 160 x 43.3 x 16.5 in, 1530 lb

• 48hr (500 gal): 160 x 43.3 x 28 in, 2050 lb

• 72hr (710 gal): 168 x 43.3 x 36 in, 2500 lb

Standard Features & Accessories

• UL2200 Certification

• Heavy Duty Steel Base Frame

• PMG w/ MX341 AVR

• Engine Jacket Water Heater

• Battery and Battery Rack

• Battery Charger

• Anti-Vibration Pads between Engine/Alternator & Base Frame

• Critical Grade Silencer Inside Enclosure

• Residential Grade Silencer Set for Open Skid Sets

• Exhaust Outlet Rain Cap and Radiator Fill Cap

• Sound Absorb Foam Material for Enclosure

• Emergency Stop Button

• Oil and Coolant Drain Valves

• Jacket Water Heater Isolation Valves

• Flex Fuel Lines

• Air Filter Restriction Gauge

• Engine Manifold Cover and Turbocharger Cover

• Protection Covers for Rotating Parts

• Exhaust Insulation Cover

• Enclosure DC Light

• Operations Manual

• 24 Months / 2,000 Hours Limited Standby Warranty

Optional Accessories

• Main Line CB (3/4 Poles – 80%/100% rated)

• Upsize Alternator

• Voltage Regulation ±0.5% w/ MX321 AVR

• Anti-condensation Heater

• Sub Base Fuel Tank (UL142 / UL2085)

• Fuel Level Display & Alarm on Controller

• Low / High Fuel Alarms

• Fuel Water Separator Filter

• Auto Fuel Fill Control System

• Oil Temperature Display on Controller

• Manual Speed and Voltage Adjust Rheostats

• Remote Annunciator Panel / Remote Control & Monitoring Panel

• Advanced SMS Messaging

• Control Panel Heater

• Battery Disconnect Switch, Battery Heater, Battery Charger 10/20 Amp

• Shunt Trip / Aux Contacts

• Spring Anti-vibration Isolators

• Automatic Transfer Panel (ATS)

• 5 Years / 2,000 Hours Limited Comprehensive Warranty
