APD-NG250 product details and specifications:

General Characteristics

• Model Name: APD-NG250

• Engine Make: PSI

• Engine Model: 13L

• Alternator Make: Stamford

• Control Panel Make & Model: DSE 7320

• Frequency & Speed: 60Hz, 1800rpm

• Enclosure Make & Model: AKSA AUL 71/72

Genset Rating

• 13L Engine / UCDI274K (Wnd-311) Alternator, 480/277V, PF 0.8: 250kW NG (375A) / 140kW LP (210.5A)

• 13L Engine / HCI444D (Wnd-311) Alternator, 240/120V, PF 0.8: 250kW NG (752A) / 140kW LP (421A)

• 13L Engine / HCI444D (Wnd-311) Alternator, 208/120V, PF 0.8: 250kW NG (867A) / 140kW LP (485.7A)

• 13L Engine / UCDI274K (Wnd-17) Alternator, 600/347V, PF 0.8: 250kW NG (301A) / 140kW LP (168.4A)

• EPA - Certified for Emergency Stationary Applications

Engine Data

• Manufacturer: PSI

• Model: 13L

• Displacement & Cylinders: 12.54L / 6 Cylinders

• Engine Type: V-type, 4 Cycle

• Engine Speed: 1800rpm

• Engine Standby Power NG: 300 kW

• Engine Standby Power LP: 181 kW

• Aspiration: Turbo Charge Air Cooled

• Compression Ratio: 9.75 : 1

• Bore / Stroke: 5.0 in / 6.5 in

• Governor Type: Electronic

Electric System

• System Voltage (dc): 24V

• Battery Qty, Rating: 2 x 120Ah

Cooling System

• Radiator Cooling System Type: Closed Circuit

• Coolant Capacity: 20.1 gal

• Cranking Temperature: 169°F

• Full Open Temperature: 190°F

Exhaust System

• Type: Water cooled manifold

• Max. Allowable Back Pressure: 15 kPa

• Max Turbine Inlet Temperature: 1382°F

• Exhaust Gas Flow at Turbine Outlet Conditions: 1855 cfm

Air Intake System

• Combustion Air Required: 575 cfm

• Max Intake Air Restriction (Clean Element): 3.0 kPa / 12 inH2O

• Air Filter Type: Dry Paper Element

Fuel System

• Fuel Type: NG, LP Gas/Dual Fuel

• Min NG Supply Pipe Size: 1 ¼” NPTF

• Maximum EPR Rated Pressure: 6.9 kPa / 1.0 psi

• Recommended Max Pressure: 2.7 kPa / 10.8 inH2O

• Recommended Min Pressure: 1.7 kPa / 6.8 inH2O

Fuel Consumption

• Natural Gas, Standby Power (100%): 3418 cfh / 97 m³/hr

• LP Gas, Standby Power (100%): 26 gal/hr / 97 L/hr

Lubrication System

• Oil Specifications: SAE 15W-40 Low Ash Gas Engine oil, API CD/CF or higher

• Oil Pan Capacity, Min-Max: 28.0 - 31.7 Qts

• Oil Filter: 2, Cartridge

• Min - Max Oil Pressure at Rated Speed: 51 psi - 80 psi / 3.5 bar - 5.5 bar

Alternator Data

• Manufacturer: Stamford

• Standards: BS EN 60034

• Control System: PMG

• A.V.R.: MX341

• Voltage Regulation: ± 1 %

• Insulation System: Class H

• Protection: IP23

• Rated Power Factor: 0.8

• Stator Winding: Double Layer Concentric

• Winding Pitch: Two Thirds

• Winding Leads: 12

• Telephone Interference: THF < 2 %

• Waveform Distortion: No Load < 1.5 %

• Maximum Over Speed: 2250 rev/min

Battery Charger & Electrical System Data

• Manufacturer: ComAp

• Model: InteliCharger

• Input Voltage: 85V ~ 264V AC

• Output Voltage / Current: 13.8V Float / 4A pk

Jacket Water Heater Data

• Manufacturer: Hotstart

• Model: CTM25110-N00

• Input Voltage: 120V

• Power: 2500W

Controller Data

• Manufacturer: DSE

• Model: 7320 MK II

Controller Features & Benefits

• Microprocessor controlled, UL & NFPA110 Compatible

• License free PC Software (Non-proprietary Software)

• IP65 rating offers increased resistance to water ingress

• Modules can be integrated to building management systems

• Real time clock provides accurate event log

• Four line back-lit LCD text display

• Five key menu navigation, two wire start/stop at Auto mode

• Front panel editing with PIN protection

• Support up to three remote display modules

• Configurable timers and alarms

• Multiple date and timer scheduler

• Integral PLC editor

• 'Protections disabled' feature

• Load switching (load shedding and dummy load outputs)

• Fully configurable via DSE Configuration Suite PC Software

• SCADA monitoring via DSE Configuration Suite PC Software

Protection

• Gen. Voltage – under / over

• Gen. Freq. – under / over

• Engine Speed – under / over

• Engine Oil Pressure – low

• Engine Temp – low / high

• Battery Voltage – low / high

• Weak Battery

• Fail to Start / Stop

• Charge Alternator Fail

• Over Current & Load (kW/kVAr)

• Unbalanced Load

• Independent Earth Fault

• Reverse Power

• Loss of Speed Signal

Instruments

• Gen. Voltage (L-L/L-N)

• Gen. Frequency

• Engine speed

• Oil Pressure

• Water Temperature

• Battery Voltage

• Run Time

• Phase Sequence

• Power monitoring (kWh/kVAh/kVArh)

• Power (kWh/kVAh/kVArh)

• Power Factor

• Generator Current

• Generator Load (%)

• Earth Current

Enclosure Features

• Heavy Duty Steel / Aluminum Structure

• E-Stop on Enclosure

• Control Panel Eliminated from Engine Vibrations

• Standard Sound Attenuation Foam

• Plastic Covered Corrosion Resistant Locks & Hinges

• Internally Mounted Exhaust System with Rain Cap

• Coolant Fill Cap

• Removable Base Frame Lifting Hooks

• Oil & Coolant Drain Ports

• Easy Access for Maintenance

Open Skid Gen-Set Dimensions

• Length: 158 in

• Width w/o lift hooks: 75 in

• Height: 65 in

• Dry Weight: 9000 lbs.

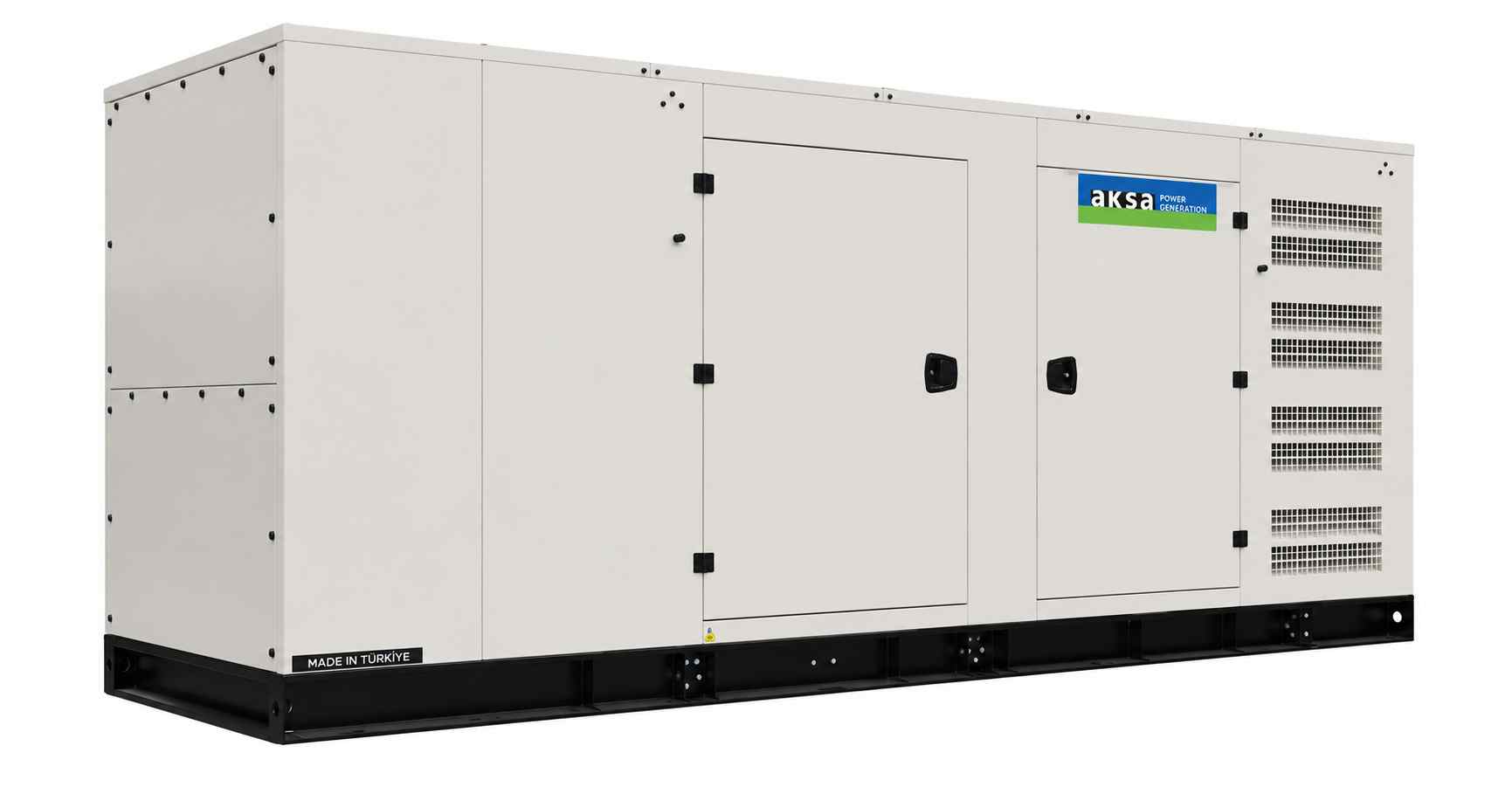

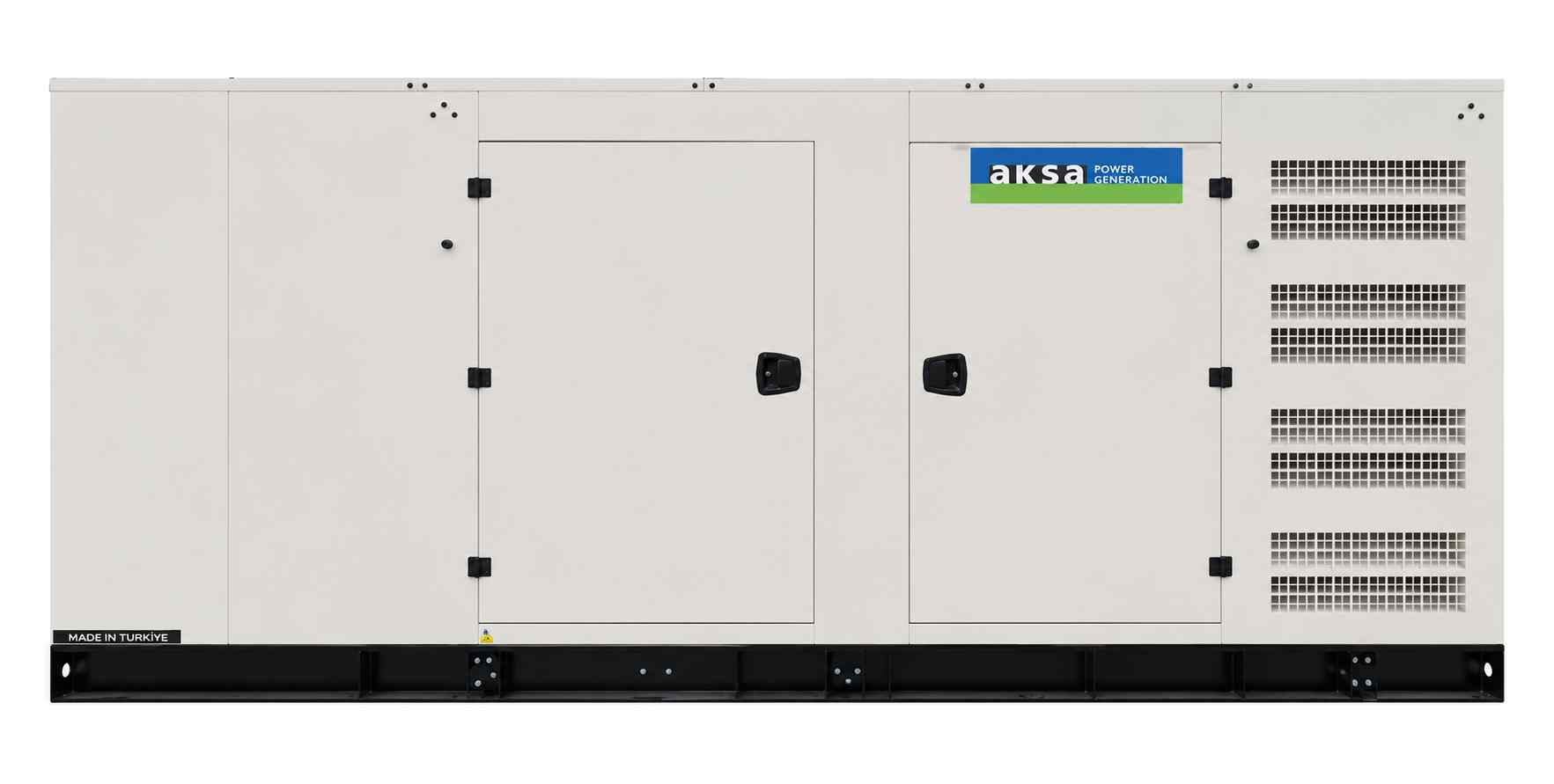

Enclosed Gen-Set Dimensions – Level 1

• Length: 206 in

• Width w/o lift hooks: 77 in

• Height: 90 in

• Dry Weight: 13000 lbs.

• Sound Pressure @ 7 meters: 78 dBA

Enclosed Gen-Set Dimensions – Level 2

• Length: 224.6 in

• Width w/o lift hooks: 77 in

• Height: 89.9 in

• Dry Weight: 13400 lbs.

• Sound Pressure @ 7 meters: 75 dBA

Standard Features & Accessories

• UL2200 Certification

• Heavy Duty Steel Base Frame

• PMG

• Engine Jacket Water Heater

• Battery and Battery Rack

• Battery Charger

• Anti Vibration Pads between Engine/Alternator & Base Frame

• Critical Grade Silencer Inside Enclosure

• Residential Grade Silencer Set for Open Skid Sets

• Exhaust outlet rain cap and radiator fill cap

• Sound Absorb Foam Material for Enclosure

• Emergency Stop Button

• Oil Drain Valve

• Coolant Drain Valve

• Jacket Water Heater Isolation Valves

• Flex Fuel Lines

• Secondary Lock-off Valve on Baseframe

• Engine Manifold Cover

• Turbocharger Cover

• Protection Covers for Rotating Parts

• Exhaust Insulation Cover

• Enclosure DC Light

• Operations Manual

• 24 Months / 2000 hours Limited Standby Warranty

Optional Accessories

• Main Line CB (3 / 4 Poles – 80% / 100% rated)

• Upsize Alternator

• Anti-condensation Heater

• Voltage Regulation ±0.5% w/MX321 AVR

• Gas Regulator

• NG / LP Auto Changeover Control System

• Low Gas Pressure Alarm

• Low Coolant Level Alarm

• Oil Pan Heater

• Oil Temperature Display on Controller

• Manual Speed Adjust Rheostat

• Manual Voltage Adjust Rheostat

• Remote Annunciator Panel

• Remote Control & Monitoring Panel

• Advanced SMS Messaging

• Control Panel Heater

• Battery Disconnect Switch

• Battery Heater

• Battery Charger 10/20 Amp

• Shunt Trip / Aux Contacts

• Spring Anti-vibration Isolators

• Automatic Transfer Panel (ATS)

• 5 Years / 2000 hours Limited Comprehensive Warranty

Codes & Standards

• Designed and manufactured in a facility certified to ISO9001 standards

• Designed and manufactured in a facility certified to ISO14001:2015 standards

• AKSA Power Generation provides single source responsibility for the generator set & accessories

• Prototype tested and production tested according to the UL test program

• Meets NFPA70, 99, 110, 37 Level 1 when equipped with the necessary accessories and installed per NFPA standards (engine must be equipped with a fast start kit for NFPA110 Level 1 applications)
