APD-NG150 product details and specifications:

General Characteristics

• Model Name: APD-NG150

• Engine Make: PSI

• Engine Model: 8.8LT-CAC

• Alternator Make: Stamford

• Control Panel Make & Model: DSE 7320

• Frequency & Speed: 60Hz, 1800 RPM

• Enclosure Make & Model: AKSA AUL 51/52

Genset Rating (8.8LTCAC)

• UCI274F (Wnd-311), 480/277V, PF 0.8: 150kW NG / 226A, 125kW LP / 188A

• UCI274K (Wnd-06), 240/120V 1ph, PF 1: 150kW NG / 625A, 125kW LP / 520A

• UCI274F (Wnd-311), 208/120V, PF 0.8: 145kW NG / 503A, 125kW LP / 434A

• UCI274F (Wnd-17), 600/347V, PF 0.8: 150kW NG / 180A, 125kW LP / 150A

• UCI274G (Wnd-311), 240/120V, PF 0.8: 150kW NG / 451.1A, 150kW LP / 451.1A

• EPA-Certified for Emergency Stationary Applications

Engine Data

• Manufacturer: PSI

• Model: 8.8LT-CAC

• Displacement & Cylinders: 8.8 L / 8 Cylinders

• Engine Type: V-type, 4 Cycle

• Engine Speed: 1800 RPM

• Engine Standby Power NG: 194.98 kW

• Engine Standby Power LP: 171.6 kW

• Aspiration: Forced Induction

• Compression Ratio: 10.1:1

• Bore / Stroke: 110.5 mm / 114.3 mm

• Governor Type: Electronic

Fuel System

• Fuel Type: NG, LP Gas / Dual Fuel

• Min NG Supply Pipe Size: 1-1/4" NPT

• Min LPG Supply Pipe Size: 3/4"

• Maximum EPR Rated Pressure: 6.9 kPa / 1.0 psi

• Recommended Max Pressure: 2.7 kPa / 11.0 inH2O

• Recommended Min Pressure: 1.7 kPa / 7.0 inH2O

Fuel Consumption

• Standby Power (100%): 1965 cfh Natural Gas / 713 cfh LP Gas

• Standby Power (75%): 1529 cfh Natural Gas / 547 cfh LP Gas

• Standby Power (50%): 1102 cfh Natural Gas / 399 cfh LP Gas

• Standby Power (25%): 688 cfh Natural Gas / 254 cfh LP Gas

Lubrication System

• Oil Specifications: SAE 5W-30, API Rating SM or Newer

• Oil Pan Capacity: 8.0 Qts

• Oil Filter: 1, Cartridge type

• Max Allowable Oil Temp: 250°F

Cooling System

• Radiator Cooling System Type: Closed Circuit

• Coolant Capacity (engine only): 14.5 quart

• Cranking Temperature: 160°F

• Full Open Temperature: 185°F

Exhaust System

• Type: Air Cooled Manifold

• Max Allowable Back Pressure: 10.2 kPa

• Cont. Rating Catalyst Configuration: Dual Substrate

• Exhaust Gas Flow at Rated Power @ 1350°F: 1177.5 cfm

Air Intake System

• Combustion Air Required: 364.6 cfm

• Max Intake Air Restriction (Clean Element): 1.49 kPa

• Air Filter Type: Dry Paper Element

Electric System

• System Voltage (dc): 12V

• Battery Qty, Rating: 1 x 80Ah

Alternator Data

• Manufacturer: Stamford

• Standards: BS EN 60034

• Control System: PMG

• A.V.R.: MX341

• Voltage Regulation: ±1%

• Insulation System: Class H

• Protection: IP23

• Rated Power Factor: 0.8

• Stator Winding: Double Layer Concentric

• Winding Pitch: Two Thirds

• Winding Leads: 12

• Telephone Interference: THF < 2%

• Waveform Distortion: No Load < 1.5%

• Maximum Overspeed: 2250 rev/min

Controller Data

• Manufacturer: DSE

• Model: 7320 MK II

• Microprocessor controlled, UL & NFPA110 Compatible

• License free PC Software (Non-proprietary Software)

• IP65 rating offers increased resistance to water ingress

• Modules can be integrated to building management systems

• Real time clock provides accurate event log

• Four line back-lit LCD text display

• Five key menu navigation, two wire start/stop at Auto mode

• Front panel editing with PIN protection

• Support up to three remote display modules

• Configurable timers and alarms; multiple date and timer scheduler

• Integral PLC editor; 'Protections disabled' feature

• Load switching (load shedding and dummy load outputs)

• Fully configurable via DSE Configuration Suite PC Software; SCADA monitoring capable

Controller Protection & Instruments

• Protection: Gen. Voltage/Frequency under-over, Engine Speed under-over, Engine Oil Pressure low, Engine Temp low/high, Battery Voltage low/high, Weak Battery, Fail to Start/Stop, Charge Alternator Fail, Over Current & Load, Unbalanced Load, Independent Earth Fault, Reverse Power, Loss of Speed Signal

• Instruments: Gen. Voltage (L-L/L-N), Gen. Frequency, Engine Speed, Oil Pressure, Water Temperature, Battery Voltage, Run Time, Phase Sequence, Power Monitoring (kWh/kVAh/kVArh), Power (kW/kVAr), Power Factor, Generator Current, Generator Load (%), Earth Current

Battery Charger & Electrical System Data

• Manufacturer: ComAp

• Model: InteliCharger

• Input Voltage: 85V ~ 264V AC

• Output Voltage / Current: 13.8V Float / 4A pk

Jacket Water Heater Data

• Manufacturer: Hotstart

• Model: CTM15210-N00

• Input Voltage: 240V

• Power: 1500W

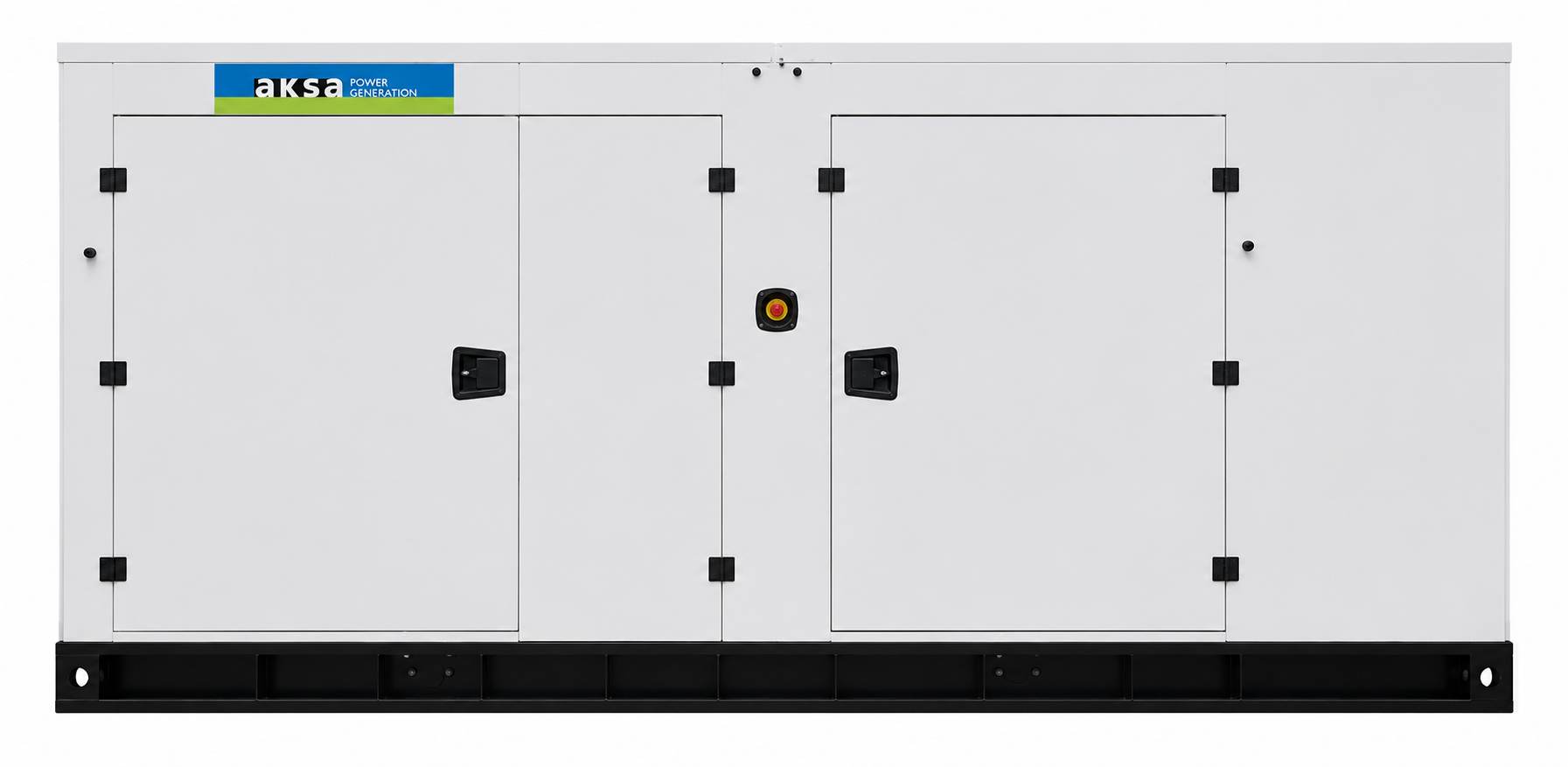

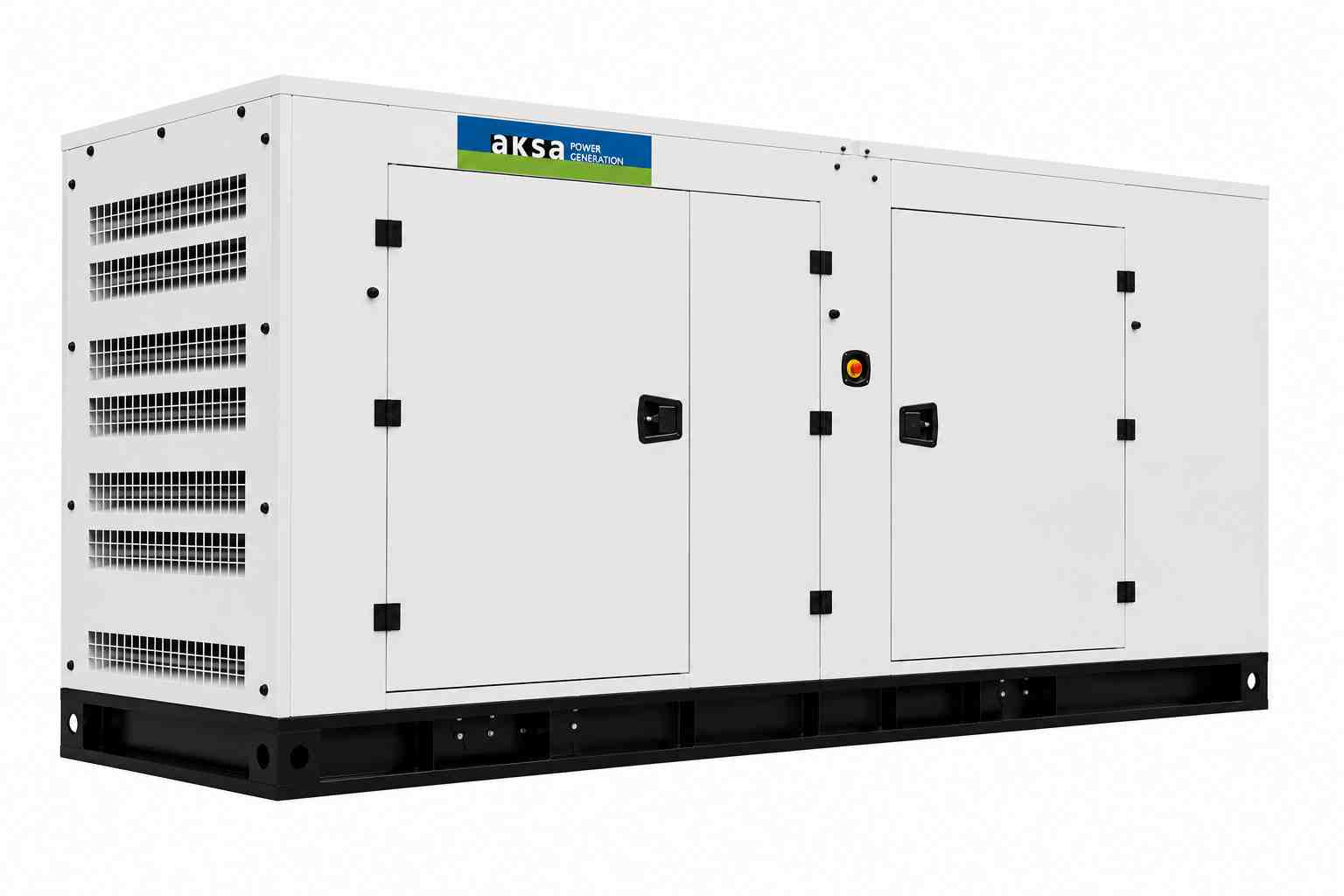

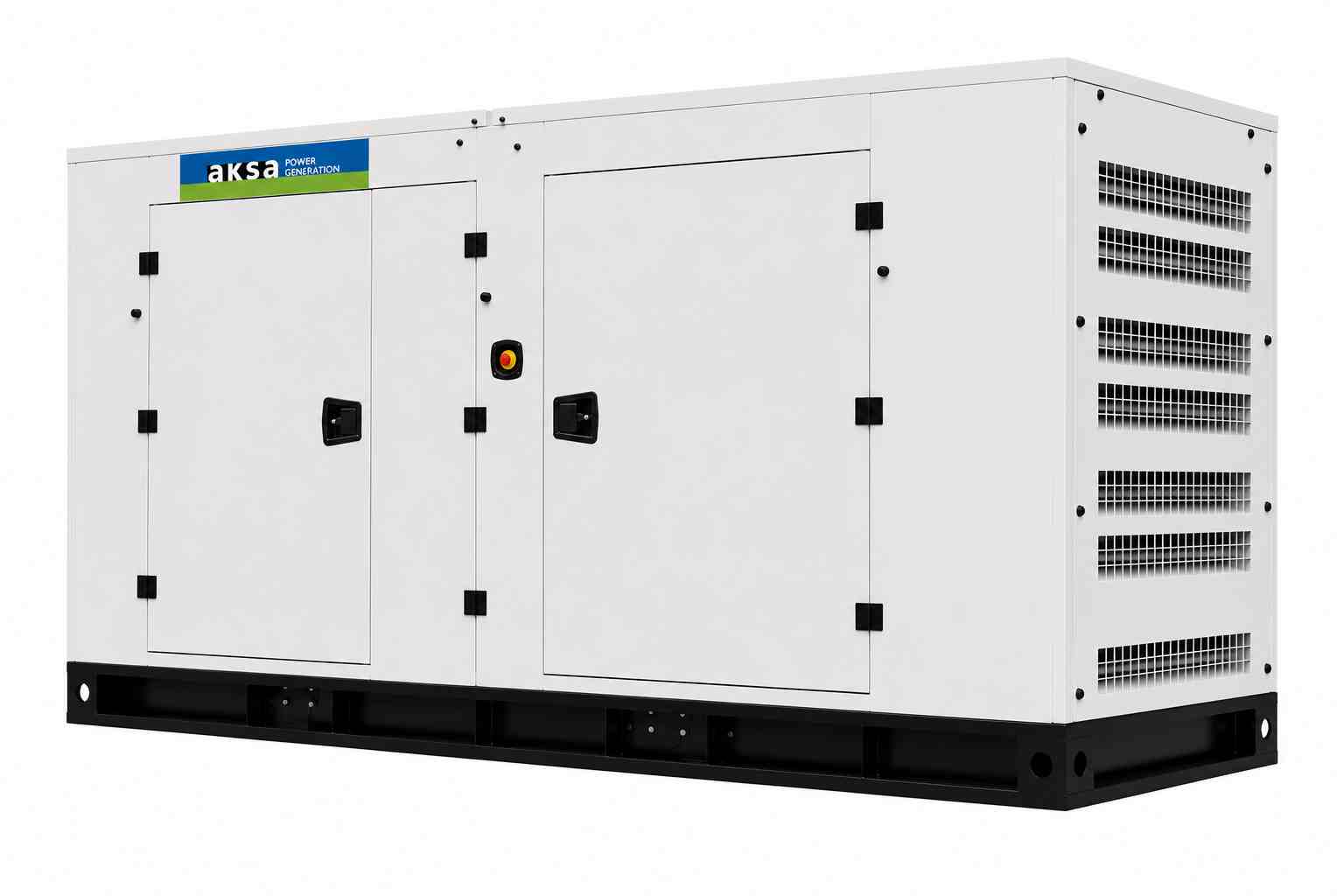

Enclosure Features

• Heavy Duty Steel / Aluminum Structure

• E-Stop on Enclosure

• Control Panel Eliminated from Engine Vibrations

• Standard Sound Attenuation Foam

• Plastic Covered Corrosion Resistant Locks & Hinges

• Internally Mounted Exhaust System with Rain Cap

• Coolant Fill Cap

• Removable Base Frame Lifting Hooks

• Oil & Coolant Drain Ports

• Easy Access for Maintenance

Dimensions & Weight

• Open Skid: 116 in (L) x 43.3 in (W) x 54 in (H), Dry Weight 3200 lb

• Enclosed Level 1: 145.7 in (L) x 43.3 in (W) x 66.4 in (H), Dry Weight 4725 lb, Sound Pressure @ 7m: 76 dBA

• Enclosed Level 2: 145.7 in (L) x 43.3 in (W) x 82 in (H), Dry Weight 5100 lb, Sound Pressure @ 7m: 72 dBA

Standard Features & Accessories

• UL2200 Certification

• Heavy Duty Steel Base Frame

• PMG

• Engine Jacket Water Heater

• Battery and Battery Rack

• Battery Charger

• Anti Vibration Pads between Engine/Alternator & Base Frame

• Critical Grade Silencer Inside Enclosure

• Residential Grade Silencer Set for Open Skid Sets

• Exhaust Outlet Rain Cap and Radiator Fill Cap

• Sound Absorb Foam Material for Enclosure

• Emergency Stop Button

• Oil Drain Valve

• Coolant Drain Valve

• Jacket Water Heater Isolation Valves

• Flex Fuel Lines

• Secondary Lock-off Valve on Baseframe

• Engine Manifold Cover

• Turbocharger Cover

• Protection Covers for Rotating Parts

• Exhaust Insulation Cover

• Enclosure DC Light

• Operations Manual

• 24 Months / 2000 Hours Limited Standby Warranty

Optional Accessories

• Main Line CB (3/4 Poles – 80%/100% rated)

• Upsize Alternator

• Anti-condensation Heater

• Voltage Regulation ±0.5% w/MX321 AVR

• Gas Regulator

• NG / LP Auto Changeover Control System

• Low Gas Pressure Alarm

• Low Coolant Level Alarm

• Oil Pan Heater

• Oil Temperature Display on Controller

• Manual Speed Adjust Rheostat

• Manual Voltage Adjust Rheostat

• Remote Annunciator Panel

• Remote Control & Monitoring Panel

• Advanced SMS Messaging

• Control Panel Heater

• Battery Disconnect Switch

• Battery Heater

• Battery Charger 10/20 Amp

• Shunt Trip / Aux Contacts

• Spring Anti-vibration Isolators

• Automatic Transfer Panel (ATS)

• 5 Years / 2000 Hours Limited Comprehensive Warranty

Codes & Standards

• Designed and manufactured in a facility certified to ISO9001

• Designed and manufactured in a facility certified to ISO14001:2015

• Single source responsibility for the generator set & accessories

• Prototype tested and production tested according to the UL test program

• Meets NFPA70, 99, 110, 37 Level 1 when equipped with necessary accessories (fast start kit required for NFPA110 Level 1)
