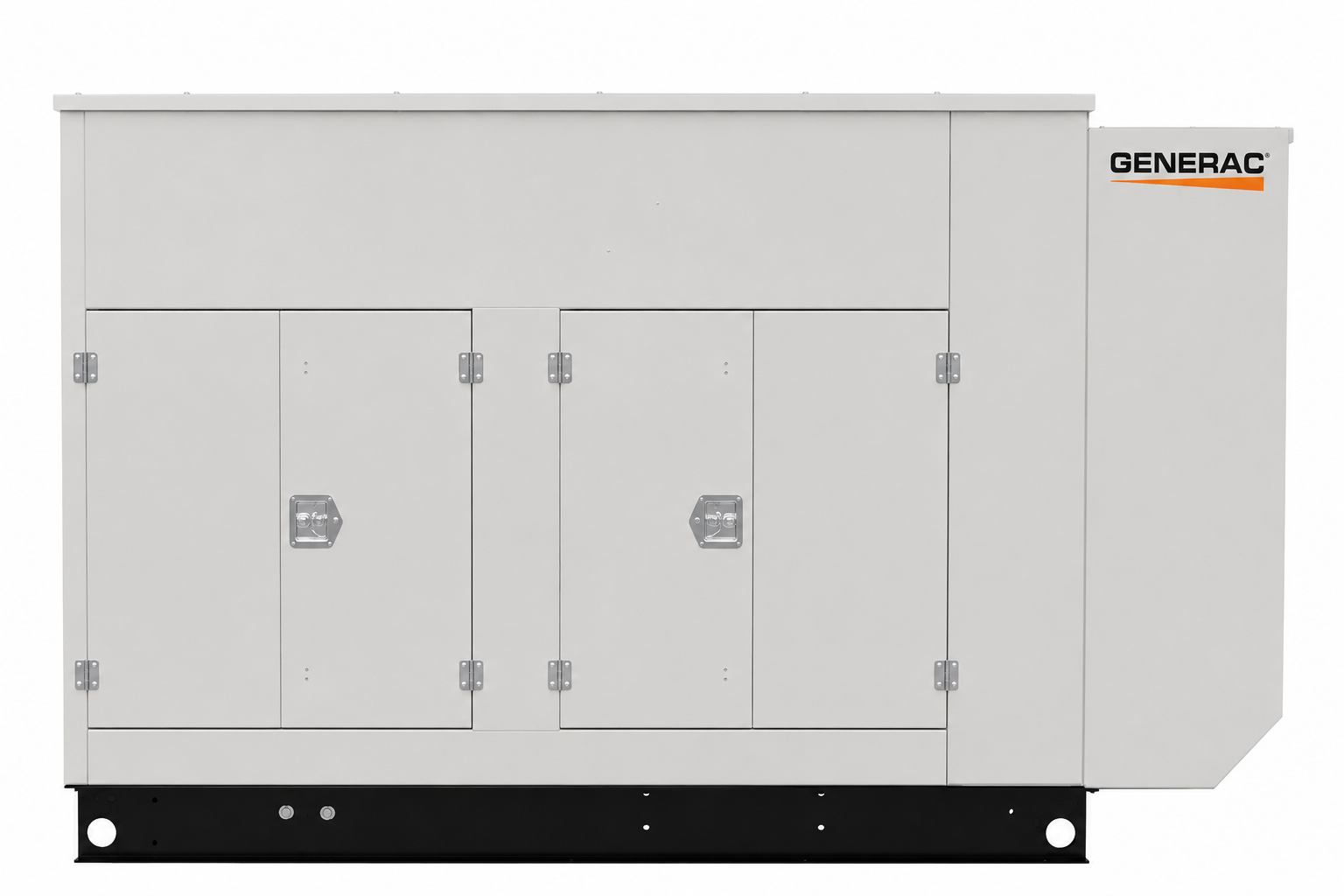

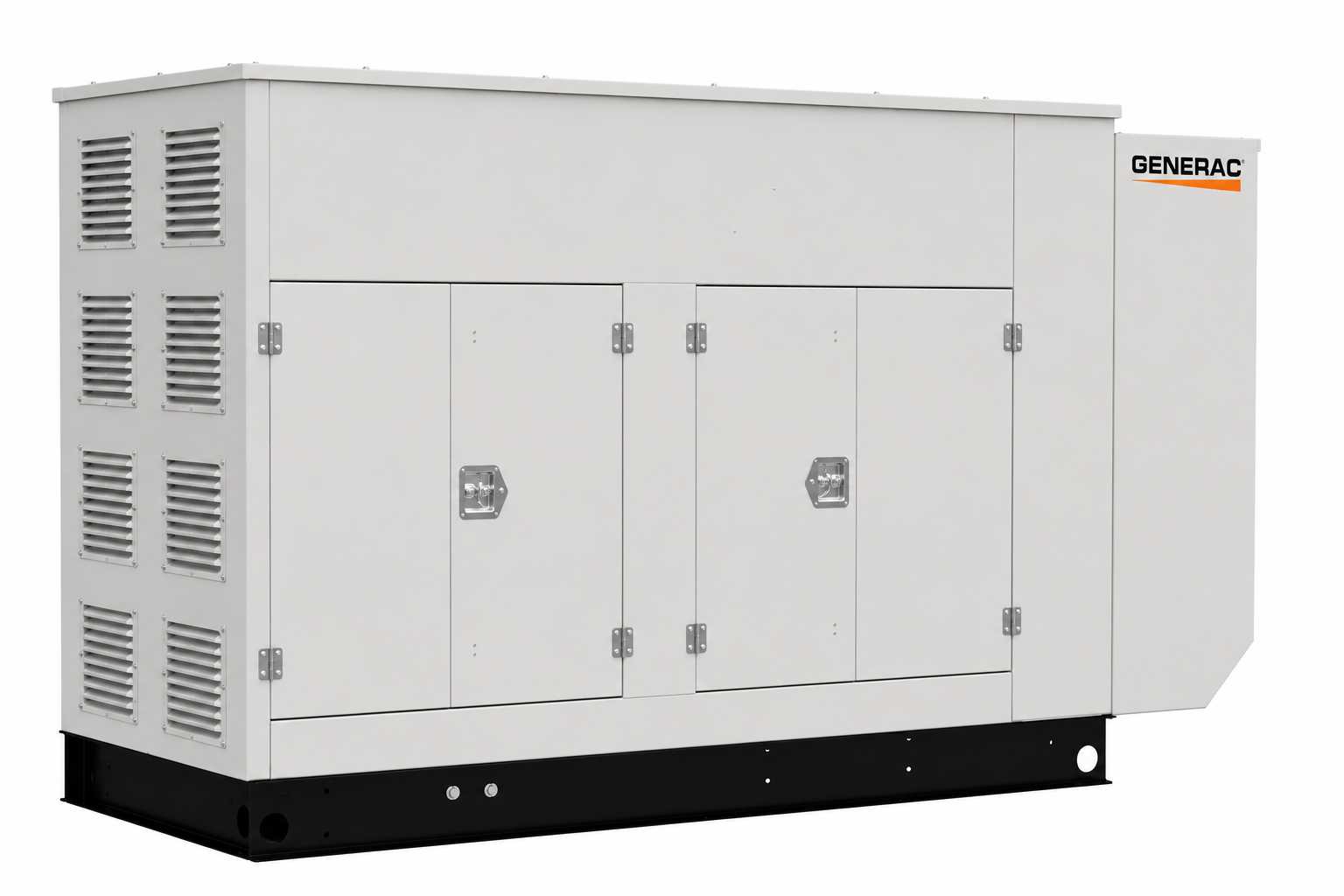

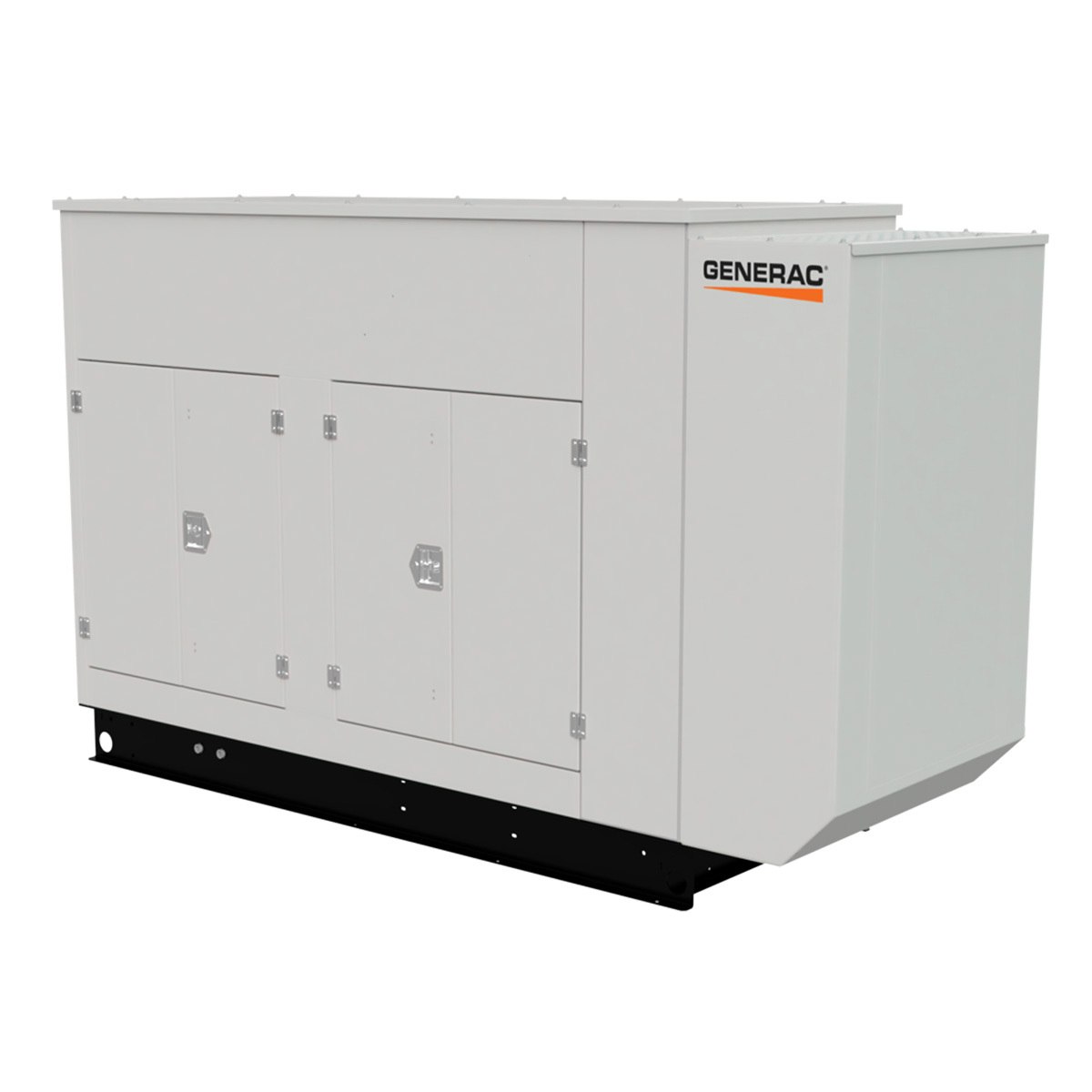

Generac Protector Series Standby Generator – Model RG10089GNAC (100 kW)

Name: Generac Protector Series Standby Generator – Model RG10089GNAC (100 kW) || Brags & Hayes Generators
Brand: All generators
SKU: RG10089GNAC
Price: 36689.00 USD
Availability: InStock

The Generac Protector Series RG10089GNAC is a 100 kW liquid-cooled gaseous standby generator engineered for residential, commercial, and emergency backup power applications. Powered by a Generac 8.86L V8 engine, the generator delivers utility-grade power with less than 5% total harmonic distortion and is designed for sensitive electronic loads. The unit features a sound-attenuated aluminum enclosure, full digital voltage regulation, Evolution™ multilingual controller, Mobile Link® connectivity capability, and Quiet-Test™ operation.

Home All generators Generac Protector Series Standby Generator – Model RG10089GNAC (100 kW)

Share this product!

Generac Protector Series Standby Generator – Model RG10089GNAC (100 kW)

US$ 36,689.00

SKU: RG10089GNAC

100 kW liquid-cooled gaseous standby generator

Generac 8.86L V8 engine

Natural gas and propane vapor compatible

Evolution™ multilingual LCD controller

Isochronous electronic governor

True Power™ Technology with less than 5% THD

Full digital voltage regulation designed for sensitive electronics

Sound-attenuated aluminum enclosure

Closed coolant recovery system

Smart battery charger included

Mobile Link® remote monitoring capability

UL 2200 listed

EPA emissions compliant

California and Massachusetts emissions compliant

5-year limited warranty

IMPORTANT: Before adding your product to the cart, please contact us to check the availability. We want to serve you as you deserve.

Product can be exported to the Caribbean, Latin America and other parts of the world with an additional payment. Contact us for shipping from USA to your country.

You count on our help to help you buy the product you need. To avoid purchasing the wrong product, please contact us before purchasing.

We have trained personnel, with more than 15 years of experience in handling manufacturer's tools: printed parts manuals, Power Parts online (electronic parts catalog), Product 360 (product configuration and kits that comprise it, as it was assembled in the factory), intranet Bill of Materials, among others. That is, we can determine 100% unequivocally which is the product you need.

Do you need help?

Do you want to chat on Whatsapp?

Description

RG10089GNAC (100 kW) product details and specifications:

General Details

Type: Liquid-cooled gaseous standby generator

Series: Generac Protector® Series

Frequency: 60 Hz

Fuel Type: Natural Gas / Propane Vapor

Cooling System: Pressurized closed cooling system

Warranty: 5-Year Limited

Engine Specifications

Engine Manufacturer: Generac

Engine Configuration: V8

Displacement: 540 cu in (8.86 L)

Bore: 4.5 inches

Stroke: 4.25 inches

Compression Ratio: 9.9:1

Aspiration: Naturally Aspirated

Lifter Type: Hydraulic Roller

Governor Type: Electronic Isochronous

Operating Speed: 1800 RPM

Engine Lubrication System

Oil Pump Type: Gear

Oil Filter Type: Full Flow Spin-On Cartridge

Crankcase Capacity: 10 qt (9.5 L)

Cooling System

Cooling Type: Pressurized Closed

Water Pump: Belt-Driven

Fan Speed: 2330 RPM

Fan Diameter: 22 inches

Fan Mode: Pusher

Maximum Ambient Temperature: 122°F

Fuel System

Fuel Type: Natural Gas / Propane Vapor

Carburetor: Down Draft

Secondary Fuel Regulator: Standard

Fuel Shut Off Solenoid: Standard

LP Fuel Pressure: 11 - 14 in Water Column

NG Fuel Pressure: 11 - 14 in Water Column

Generator Specifications

Rated Standby Power: 100 kW

Type: Synchronous

Rotor Insulation Class: H

Stator Insulation Class: H

Telephone Interference Factor (TIF): <50

Excitation System: Synchronous Brushless

Total Harmonic Distortion: Less than 5%

Voltage Regulation: Full Digital

Electrical System

Battery Charger Alternator: 40 Amp

Static Battery Charger: 2.5 Amp

Recommended Battery: Group 31, 925 CCA

System Voltage: 12 Volts

Control System

Controller: Evolution™ Multilingual LCD Controller

Display: Two-line plain text LCD display

Features: Programmable exercise, event logs, low battery protection, overcrank protection, incorrect wiring protection

Mobile Link® Connectivity capable

Enclosure

Material: Aluminum

Design: Sound-attenuated weather protective enclosure

Finish: Electrostatically applied textured epoxy paint

Sound Levels

Normal Operation: 70 dB(A) at 23 ft

Dimensions and Weight

Dimensions (L x W x H): 103 x 39 x 71 inches

Weight: 3000 lbs

Certifications and Compliance

UL 2200 Listed

EPA Emissions Compliant

California and Massachusetts Emissions Compliant

product specifications:

Category	Value
Model	RG10089GNAC
Series	Generac Protector Series
Power Output	100 kW
Fuel Type	Natural Gas / Propane Vapor
Frequency	60 Hz
Engine Manufacturer	Generac
Engine Configuration	V8
Engine Displacement	540 cu in (8.86 L)
Aspiration	Naturally Aspirated
Compression Ratio	9.9:1
Cooling System	Pressurized Closed
Governor Type	Electronic Isochronous
Voltage Regulation	Full Digital
THD	<5%
System Voltage	12 V
Battery Charger Alternator	40 Amp
Static Battery Charger	2.5 Amp
Recommended Battery	Group 31, 925 CCA
Enclosure	Sound Attenuated Aluminum
Warranty	5-Year Limited
Certifications	UL 2200
Emissions Compliance	EPA / CA / MA Compliant
Sound Level	70 dB(A) at 23 ft
RPM	1800
Dimensions (L x W x H)	103 x 39 x 71 inches
Weight	3000 lbs
