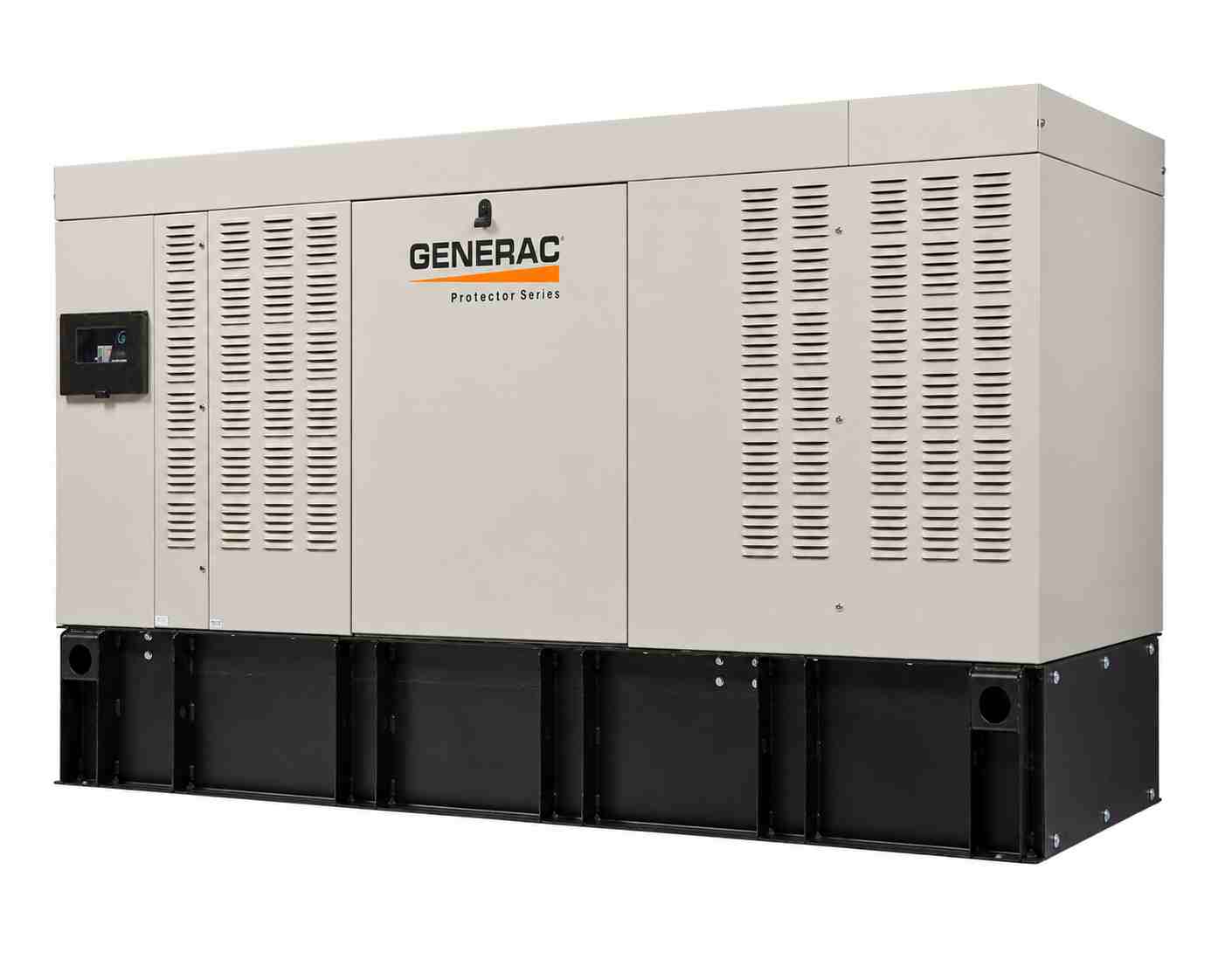

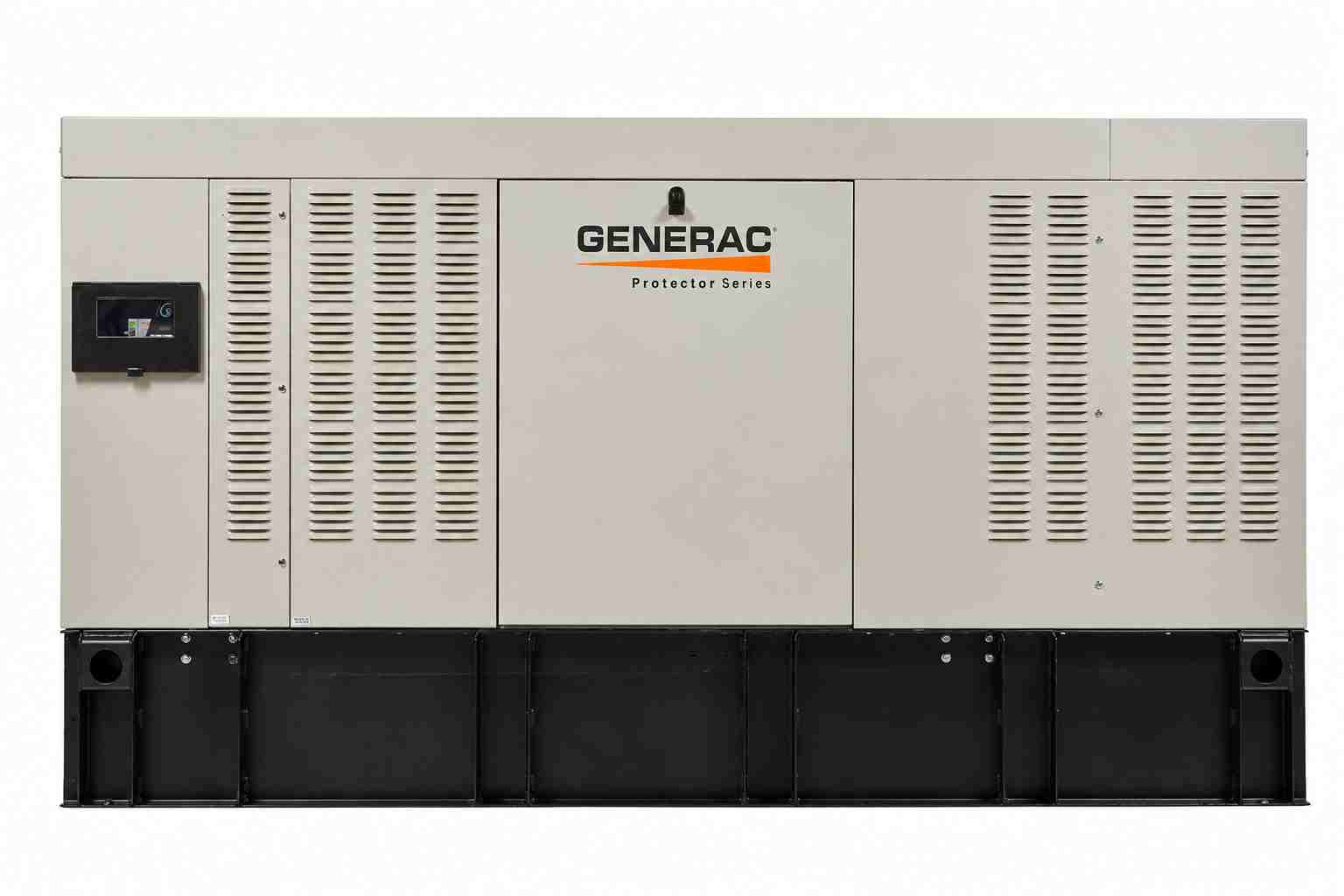

Generac Protector Series Diesel Generator – Model RD04833ADAE (48 kW)

Name: Generac Protector Series Diesel Generator – Model RD04833ADAE (48 kW) || Brags & Hayes Generators
Brand: USA
SKU: RD04833ADAE
Price: 20779.00 USD
Availability: InStock

The Generac Protector Series RD04833ADAE is a 48 kW liquid-cooled diesel standby generator designed for demanding residential, commercial, and emergency backup applications. Powered by a turbocharged Mitsubishi 3.3L diesel engine and housed in a sound-attenuated aluminum enclosure, this generator delivers reliable utility-grade power with less than 5% total harmonic distortion. The system includes advanced Evolution™ controls, Mobile Link® remote monitoring capability, and integrated base tank options for extended runtime.

Home All generators By destination USA Generac Protector Series Diesel Generator – Model RD04833ADAE (48 kW)

Share this product!

Generac Protector Series Diesel Generator – Model RD04833ADAE (48 kW)

US$ 20,779.00

SKU: RD04833ADAE

48 kW standby diesel generator with single-phase output

Mitsubishi 3.3L turbocharged and aftercooled diesel engine

Sound-attenuated aluminum enclosure for quiet operation

True Power™ Technology with less than 5% THD

Electronic isochronous governor with ±0.25% steady-state regulation

Digital voltage regulation with ±1% accuracy

Two-line multilingual LCD Evolution™ controller

Integrated Mobile Link® remote monitoring capability

Integrated base tank options with over 90 hours runtime available

UL 2200 / UL142 / ULC S601 listed

EPA compliant and CA/MA emissions compliant

Smart battery charger and UV/ozone-resistant hoses included

Quiet-Test™ exercise mode operation

5-year limited warranty

IMPORTANT: Before adding your product to the cart, please contact us to check the availability. We want to serve you as you deserve.

Product can be exported to the Caribbean, Latin America and other parts of the world with an additional payment. Contact us for shipping from USA to your country.

You count on our help to help you buy the product you need. To avoid purchasing the wrong product, please contact us before purchasing.

We have trained personnel, with more than 15 years of experience in handling manufacturer's tools: printed parts manuals, Power Parts online (electronic parts catalog), Product 360 (product configuration and kits that comprise it, as it was assembled in the factory), intranet Bill of Materials, among others. That is, we can determine 100% unequivocally which is the product you need.

Do you need help?

Do you want to chat on Whatsapp?

SKU: RD04833ADAE

Categories: USA, NFPA 110 Level 1, Diesel, Aluminum, Single phase, Yes, made in USA, All generators, 60 hz, Residential, Liquid cooled, 45 KW to 95 KW, 120/240V single phase, Generac, Generac Protector Series, Commercial, Standby, EPA STATIONARY, Emergency, 10 KVA to 50 KVA, Sound attenuated, Quiet, Sound Shield Enclosure, Enclosed super silent, Standby, Diesel

Description

RD04833ADAE (48 kW) product details and specifications:

General Details

Type: Liquid-cooled diesel standby generator

Series: Generac Protector® Series

Frequency: 60 Hz

Phase: Single-phase

Fuel Type: Ultra Low Sulfur Diesel

Cooling System: Liquid-cooled

Warranty: 5-Year Limited

Engine Specifications

Engine Manufacturer: Mitsubishi

Engine Configuration: 4-cylinder

Displacement: 3.3 L

Aspiration: Turbocharged and aftercooled

Governor Type: Electronic Isochronous

Operating RPM: 1800

Starting System: 12 VDC electric start

Cooling Fan Type: Belt-driven

Lubrication System: Full pressure lubrication

Fuel System: Direct injection diesel

Generator Specifications

Rated Standby Power: 48 kW

Rated Prime Power: 38.4 kW

Voltage: 120/240 V

Maximum Load Current: 200 A

Frequency: 60 Hz

Total Harmonic Distortion: Less than 5%

Voltage Regulation: ±1%

Circuit Breaker: 200 Amp

Rotor Type: Brushless

Control System

Controller: Evolution™ digital controller

Display: Multilingual LCD display

Features: Utility monitoring, event logging, programmable exercise, smart battery charger, remote monitoring compatibility

Connectivity: Mobile Link® remote monitoring capable

Fuel System

Fuel Type: Ultra Low Sulfur Diesel

Integrated Fuel Tank Capacity: 57 gallons

Usable Fuel Capacity: 57 gallons

Dimensions and Weight

Dimensions (L x W x H): 95 x 35 x 57 inches

Weight: 2215 lbs

Enclosure

Material: Aluminum

Design: Sound-attenuated weather-resistant enclosure

Finish: RhinoCoat™ powder-coated finish

Sound Levels

Exercise Mode: 65 dB(A)

Normal Operation: 70 dB(A)

Certifications and Compliance

UL 2200 Listed

UL 142 Listed Base Tank

ULC S601 Certified

EPA Emissions Compliant

California and Massachusetts Emissions Compliant

product specifications:

Category	Value
Model	RD04833ADAE
Power Output	48 kW
Prime Power	38.4 kW
Voltage	120/240 V
Frequency	60 Hz
Phase	Single
Max Current	200 A
Circuit Breaker	200 A
THD	<5%
Voltage Regulation	±1%
Governor Type	Electronic Isochronous
Engine Manufacturer	Mitsubishi
Engine Displacement	3.3 L
Cylinders	4
Engine Type	Turbocharged / Aftercooled
RPM	1800
Fuel Type	Ultra Low Sulfur Diesel
Cooling System	Liquid-Cooled
Enclosure	Sound Attenuated Aluminum
Battery Voltage	12 V
Sound Level Exercise Mode	65 dB(A)
Sound Level Normal Operation	70 dB(A)
Dimensions (L x W x H)	95 x 35 x 57 inches
Weight	2215 lbs
Fuel Tank Capacity	57 gallons
Usable Fuel Capacity	57 gallons
Warranty	5 years
Certifications	UL 2200 / UL142 / ULC S601
