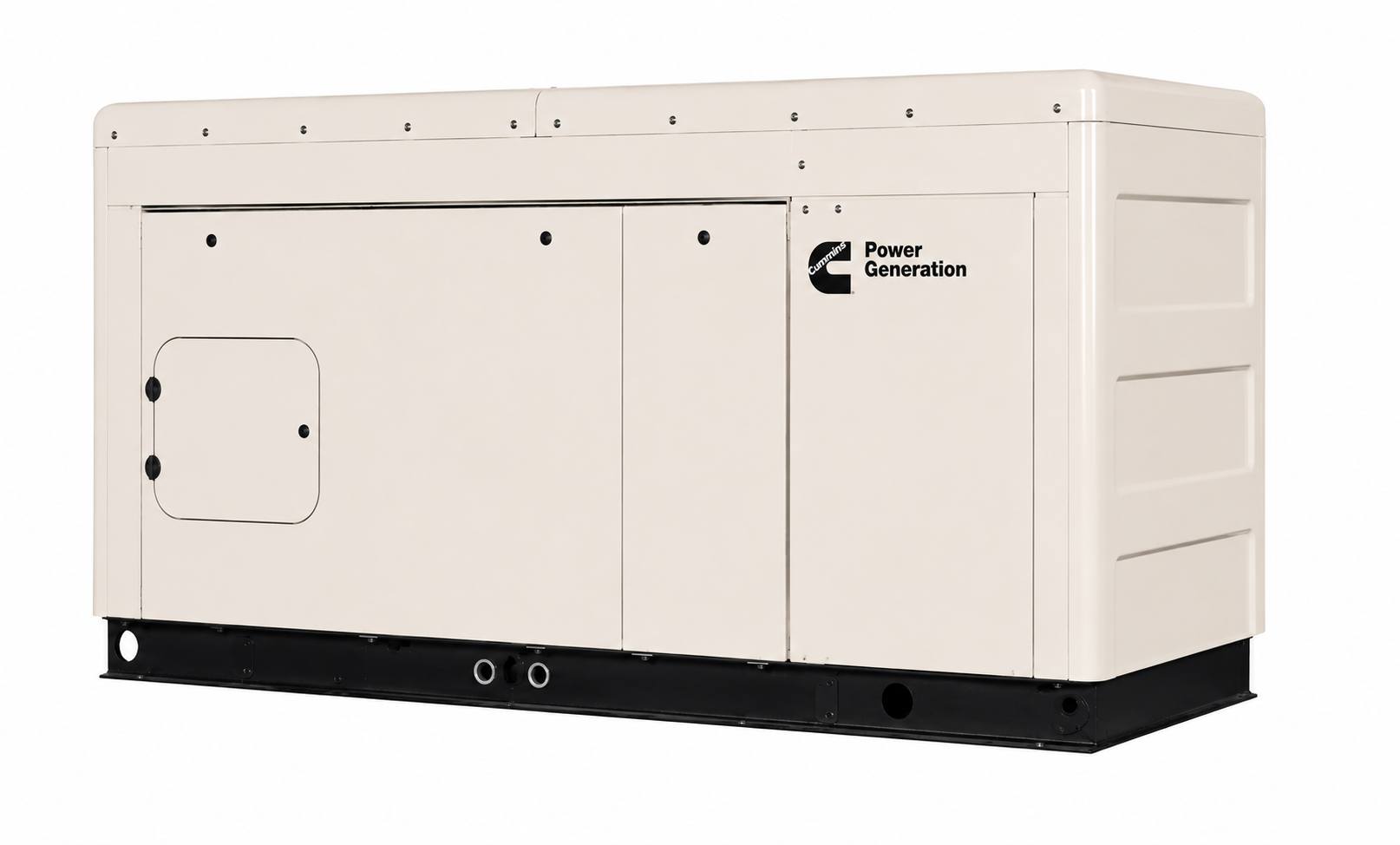

C30D6 - Details and Specifications:

General Details

• Model: C30D6

• Configuration: No Fuel Tank

• Standby Rating: 30 kW / 30 kVA

• Controller: PowerCommand 1.1

• Voltage / Phase: 120/240V Single Phase

• Operating Temperature Range: -40°F to 122°F

• Circuit Breaker: 150 Amps

• Battery Charger: Standard 6A

• Governor Regulation Class: ISO 8528 Part 1 Class G3

• Voltage Regulation: ±1.0%

• Random Voltage Variation: ±1.0%

• Frequency Regulation: Isochronous

• Random Frequency Variation: ±0.5%

• FCC Title 47 Part 15 Class A and B Compliant

Engine Specifications

• Engine Model: Cummins QSB3.3

• Engine Type: Heavy-duty 4-cycle industrial diesel

• Displacement: 3.3 L (199 in³)

• Cylinder Block: Cast iron, in-line

• Battery Capacity: 550 amps

• Battery Charging Alternator: 40 amps

• Starting Voltage: 12-volt, negative ground

• Lube Oil Filter: Spin-on with relief valve

• Rated Speed: 1800 rpm

Alternator Specifications

• Design: Brushless, 4-pole, drip-proof, revolving field

• Stator: 2/3 pitch

• Rotor: Direct coupled, flexible disc

• Insulation System: Class H per NEMA MG1-1.65

• Standard Temperature Rise: 120°C (248°F) Standby

• Exciter Type: Torque match (shunt), PMG optional

• Alternator Cooling: Direct drive centrifugal blower

• THDV: <5% no load to full linear load, <3% for any single harmonic

• TIF: <50 per NEMA MG1-22.43

• THF: <3%

Control System

• PowerCommand 1.1 electronic control

• Automatic remote starting and stopping

• Precise voltage and frequency regulation

• Alarm and status message display

• Output metering

• Auto-shutdown at fault detection

• Integrated generator set control and monitoring

Enclosure

• Sound Level 1 Sandstone enclosure

• Aluminum construction

• Powder coat finish for corrosion resistance

• Designed to withstand wind loads up to 180 mph per ASCE 7-10

• Low-noise enclosure design

Accessories

• Battery Heater Kit (A045R833)

• RS Remote In-Home Display (A053K028)

• Remote Monitoring Device PC500 (A059Y211)

• Remote Monitoring Device PC550 (A059Y210)

Dimensions and Weight

• Length: 93.8 in

• Width: 34 in

• Height: 45.5 in

• Dry Weight: 1282 lbs

• Wet Weight: 1328 lbs
