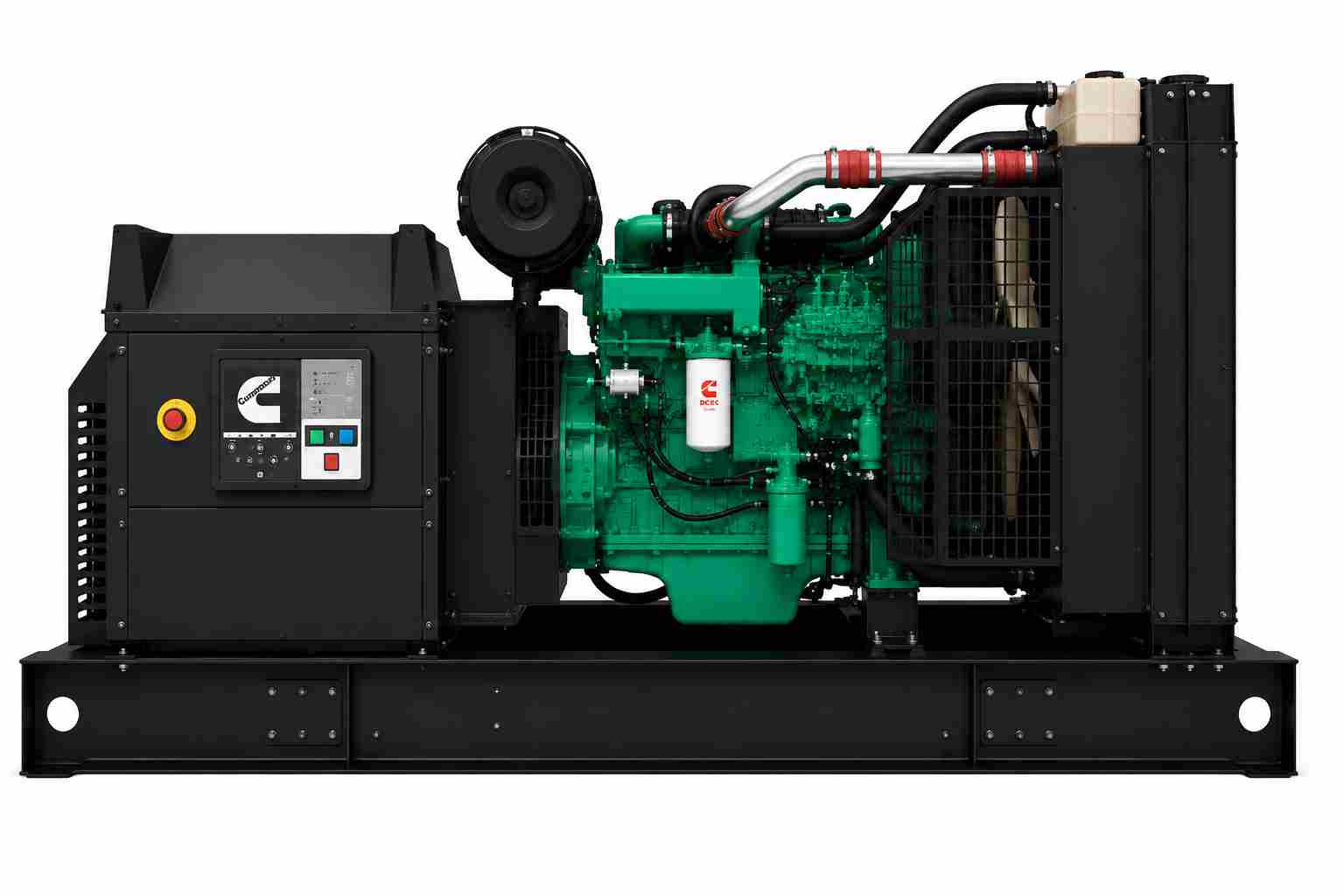

C200D6D - Details and Specifications:

General Details

• Model: C200D6D

• Standby Rating: 200 kW / 200 kVA

• Controller: PowerCommand 1.1

• Operating Temperature Range: -40°F to 122°F

• Circuit Breaker: 800 A (adjustable)

• Governor Regulation Class: ISO 8528 Part 1 Class G3

• Voltage Regulation: ±1.0%

• Random Voltage Variation: ±1.0%

• Frequency Regulation: Isochronous

• Random Frequency Variation: ±0.5%

• Radio Frequency Emissions Compliance: FCC Title 47 Part 15 Class A and B

• NFPA 110 Level 1 compliant functionality

• Battle Short Mode

• Flexible Exercise Mode

Engine Specifications

• Engine Model: Cummins QSB7

• Engine Type: Heavy-duty 4-cycle industrial diesel

• Engine Displacement: 408 in³ (6.69 L)

• Cylinder Block: Cast iron, in-line

• Battery Capacity: 2 x 850 amps

• Battery Charging Alternator: 100 amps

• Starting Voltage: 2 x 12-volt, negative ground

• Lube Oil Filter: Spin-on with relief valve

• Cooling System: High ambient radiator

• Rated Speed: 1800 rpm

Alternator Specifications

• Design: Brushless, 4-pole, drip-proof, revolving field

• Stator: 2/3 pitch

• Rotor: Direct coupled, flexible disc

• Insulation System: Class H per NEMA MG1-1.65

• Standard Temperature Rise: 248°F (120°C) Standby

• Exciter Type: Torque match (shunt) with PMG option

• Alternator Cooling: Direct drive centrifugal blower

• Total Harmonic Distortion (THDV): <5% no load to full linear load, <3% for any single harmonic

• Telephone Influence Factor (TIF): <50 per NEMA MG1-22.43

• Telephone Harmonic Factor (THF): <3%

Control System

• PowerCommand 1.1 digital control

• Automatic remote starting and stopping

• Precise frequency and voltage regulation

• Alarm and status message display

• Output metering

• Auto-shutdown at fault detection

• Industry-leading self-diagnostic capability

• Integrated generator set management

Accessories

• Battery Heater Kit

• Engine Oil Heater

• Remote Control Displays

• Auxiliary Output Relays

• Auxiliary Configurable Signal Inputs and Relay Outputs

• Annunciator RS485

• Alternator Heater

• Audible Alarm

• Enclosure Sound Level 1 & 2

• Battery Charger – Stand-Alone 12V

• Circuit Breakers

• Remote Monitoring Device – PowerCommand 500/550

• Base Barrier – Elevated Generator Sets

Dimensions and Weight

• Length: 113 in

• Width: 40 in

• Height: 56 in

• Wet Weight: 3491 lbs
