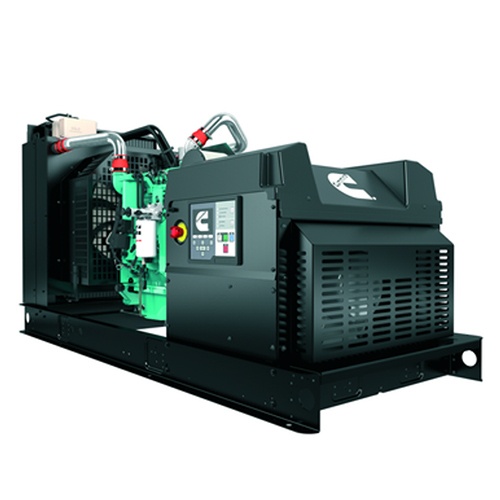

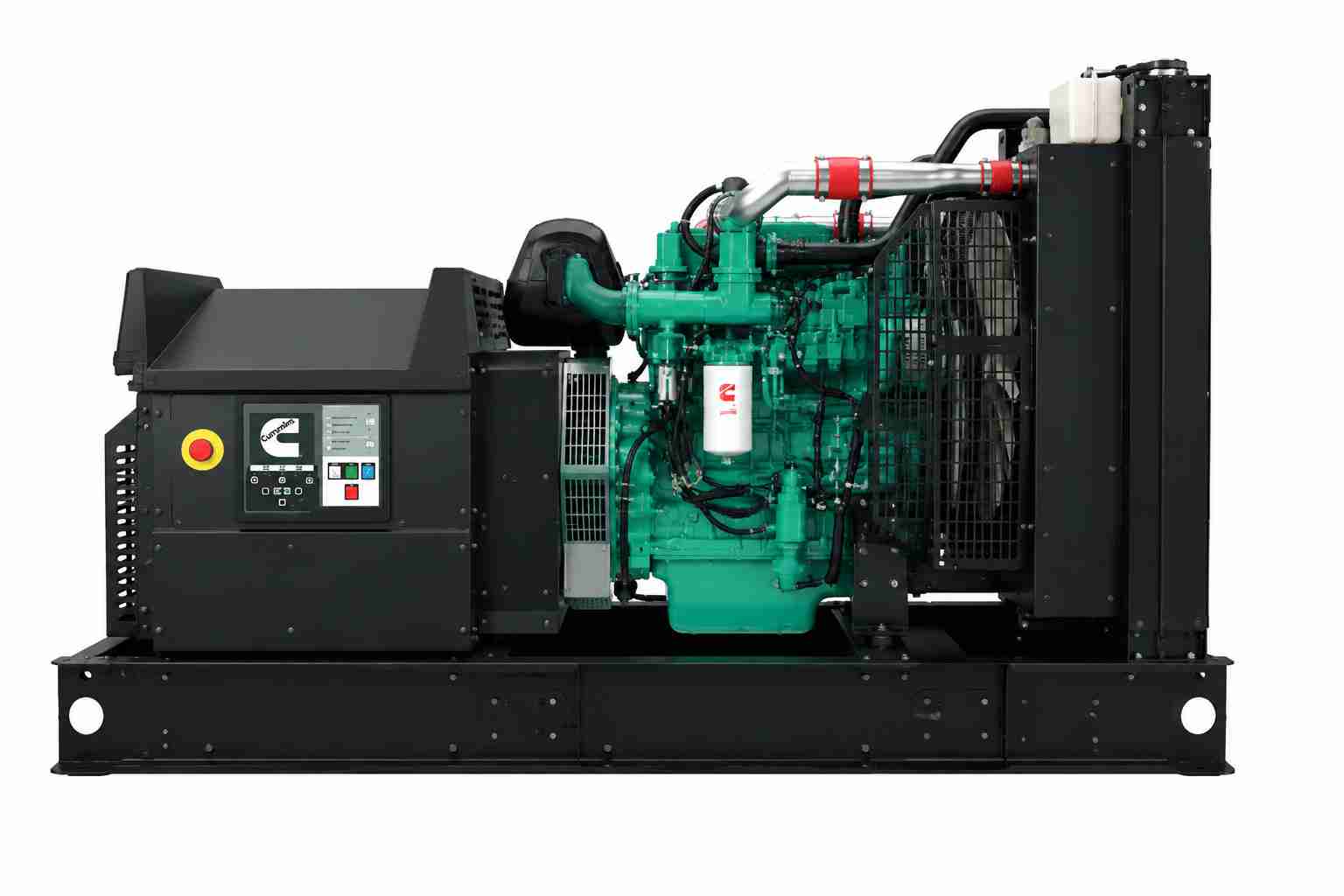

C125D6D - Details and Specifications:

General Details

• Model: C125D6D

• Standby Rating: 125 kW / 125 kVA

• Controller: PowerCommand 1.1

• Operating Temperature Range: -40°F to 122°F

• Circuit Breaker: 600 A (adjustable)

• Governor Regulation Class: ISO 8528 Part 1 Class G3

• Voltage Regulation: ±1.0%

• Random Voltage Variation: ±1.0%

• Frequency Regulation: Isochronous

• Random Frequency Variation: ±0.5%

• Radio Frequency Emissions Compliance: FCC Title 47 Part 15 Class A and B

• Battle Short Mode

• Flexible Exercise Mode

• NFPA 110 Level 1 compliant functionality

Engine Specifications

• Engine Model: Cummins QSB7

• Engine Displacement: 408 in³ (6.69 L)

• Engine Type: Heavy-duty 4-cycle industrial diesel

• Cylinder Block: Cast iron, in-line

• Battery Capacity: 2 x 850 amps

• Battery Charging Alternator: 100 amps

• Starting Voltage: 2 x 12-volt, negative ground

• Lube Oil Filter: Spin-on with relief valve

• Cooling System: High ambient radiator

• Rated Speed: 1800 rpm

Alternator Specifications

• Design: Brushless, 4-pole, drip-proof, revolving field

• Stator: 2/3 pitch

• Rotor: Direct coupled, flexible disc

• Insulation System: Class H per NEMA MG1-1.65

• Standard Temperature Rise: 248°F (120°C) Standby

• Exciter Type: Torque match (shunt) with PMG option

• Alternator Cooling: Direct drive centrifugal blower

• Total Harmonic Distortion (THDV): <5% no load to full linear load

• Telephone Influence Factor (TIF): <50 per NEMA MG1-22.43

• Telephone Harmonic Factor (THF): <3%

Control System

• PowerCommand 1.1 digital control

• Automatic remote starting and stopping

• Precise voltage and frequency regulation

• Alarm and status message display

• Output metering

• Automatic shutdown at fault detection

• Industry-leading self-diagnostic capability

• Integrated generator set management

Dimensions and Weight

• Length: 113 in

• Width: 40 in

• Height: 56 in

• Wet Weight: 2586 lbs

Product Specifications:

Product Related Documents:

C125D6D spec sheet.pdf

eds-3043.PDF

A060C858.PDF

A054B421.PDF
